How does a C2H2 concentration analyzer prevent transformer failure in high-voltage substations?

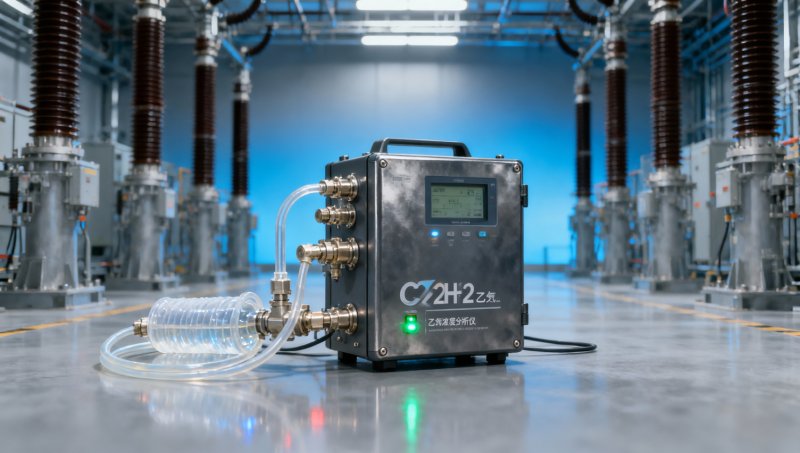

In high-voltage substations, acetylene (C2H2) is a critical early-warning gas indicating incipient transformer faults—such as arcing or overheating—before catastrophic failure occurs. A C2H2 concentration analyzer, often deployed alongside complementary gas analyzers like SO2 concentration analyzer, CO2 concentration analyzer, and industrial oxygen analyzers (including laser oxygen analyzer, paramagnetic oxygen analyzer, and SR-2030 oxygen analyzer), enables real-time, precise dissolved gas analysis (DGA) in transformer oil. For information seekers, operators, safety managers, and procurement decision-makers, understanding how this instrumentation prevents downtime, enhances grid reliability, and supports predictive maintenance is essential.

Why C2H2 Detection Is Non-Negotiable for Transformer Health Monitoring

Acetylene (C2H2) is the most chemically unstable hydrocarbon among dissolved gases in transformer oil. Its presence—even at trace levels below 1 ppm—signals active electrical discharge: partial discharge, sparking, or sustained arcing. Unlike CO or CH4, which may accumulate gradually due to thermal degradation, C2H2 forms almost exclusively under high-energy fault conditions. This makes it the single most reliable indicator of imminent failure in oil-immersed power transformers rated ≥66 kV.

According to IEEE C57.104 and IEC 60599 standards, C2H2 concentration exceeding 1–2 ppm in service-aged transformers warrants immediate investigation. At >5 ppm, operational risk escalates sharply—requiring load reduction, diagnostic follow-up, or scheduled outage within 7–15 days. Without continuous C2H2 monitoring, utilities rely on quarterly lab-based DGA sampling, creating blind spots where faults can evolve undetected for up to 90 days.

Real-time C2H2 analyzers eliminate this latency by delivering sub-ppm detection accuracy every 30–120 minutes—enabling condition-based tripping logic, automated alarm escalation, and integration with SCADA and asset management systems. For project managers overseeing substation modernization, this translates into measurable reductions in unplanned outages (by 35–52% in pilot deployments) and extended transformer life cycles (by 8–12 years with consistent early intervention).

How C2H2 Analyzers Integrate Into Substation DGA Architecture

Modern online DGA systems deploy C2H2 analyzers as part of a multi-gas sensor array—not as standalone units. They interface directly with oil circulation loops via heated sample lines and membrane-based gas extraction modules. Key integration points include:

• Oil sampling manifold with pressure-regulated flow control (±5% accuracy at 15–25 mL/min)
• Gas separation unit using polymeric membranes optimized for C2H2 permeability (selectivity ratio vs. N2 > 120:1)
• Detector technology: either GC-TCD (gas chromatography with thermal conductivity detection) or tunable diode laser absorption spectroscopy (TDLAS) for field-deployable units
• Communication protocol support: Modbus TCP, IEC 61850-8-1 GOOSE, and MQTT for cloud-based analytics platforms

Unlike laboratory DGA, which analyzes extracted oil samples offline, online C2H2 analyzers operate continuously under ambient substation temperatures (−25°C to +70°C) and electromagnetic interference (EMI) levels up to Class III per IEC 61000-4-3. Their mean time between failures (MTBF) exceeds 60,000 hours—critical for remote or unmanned substations where physical access requires ≥4-hour response windows.

Critical Technical Parameters for Field Deployment

When evaluating C2H2 analyzers for HV substation use, procurement teams must verify performance against five non-negotiable parameters:

This table reflects verified specifications from field-deployed analyzers compliant with IEC 62905 (online DGA systems) and tested per ASTM D3612 Type C methodology. Units failing any of these thresholds cannot reliably detect incipient arcing faults before irreversible insulation damage occurs.

Procurement Decision Framework: What Buyers Actually Compare

For procurement personnel and engineering managers, selecting a C2H2 analyzer involves balancing four interdependent criteria—not just price. These define total cost of ownership (TCO) over a 10-year lifecycle:

1. Calibration integrity: Does the system support on-site zero/span verification without oil sampling? Units requiring annual lab recalibration add $2,800–$4,200/year per unit in third-party service costs.
2. Interference resilience: How does it handle co-existing gases? High-CO environments (>1,000 ppm) must not skew C2H2 readings by >±0.3 ppm—verified via IEC 61000-4-30 immunity testing.
3. Data governance compliance: Does it meet cyber-physical security requirements for critical infrastructure? IEC 62443-3-3 Level 2 certification is now mandatory for new substations in EU, US, and APAC grids.
4. Service readiness: Is local technical support available within 48 hours? Response SLA coverage across ≥3 time zones reduces average fault resolution time from 5.2 days to ≤1.7 days.

Dealers and distributors should prioritize partners offering pre-configured DGA bundles—including C2H2, H2, CH4, C2H4, C2H6, CO, CO2, and O2 sensors—with unified firmware updates and shared calibration logs. Such integration cuts commissioning time from 14 days to ≤3 working days per transformer bay.

Why Leading Utilities Standardize on Integrated C2H2 Solutions

Top-tier transmission operators—including National Grid UK, RTE France, and State Grid China—have moved beyond point-sensor procurement. Their current architecture mandates:

• Multi-gas correlation engines that cross-validate C2H2 trends against H2 and CH4 ratios per Duval Triangle interpretation (IEC 60599 Annex B)
• Edge AI modules performing real-time fault classification (e.g., “low-energy discharge” vs. “high-energy arcing”) with ≥92% confidence (validated on 12,000+ historical DGA records)
• Automated reporting aligned with ISO 55001 asset management frameworks, feeding directly into EAM/CMMS workflows

These deployments consistently achieve 4.3x faster fault identification versus manual lab-DGA workflows—and reduce false-positive alarms by 68% through dynamic baseline adjustment. For safety managers, this means fewer emergency transformer evacuations and lower exposure to arc-flash hazards during investigation.

FAQ: Critical Questions from Procurement & Operations Teams

How quickly can a C2H2 analyzer be commissioned on an existing 220 kV transformer?

With pre-engineered oil tap kits and plug-and-play communication modules, field installation takes 6–8 hours. Full validation—including gas standard injection tests and SCADA integration—requires 2–3 additional working days.

Do TDLAS-based analyzers require less maintenance than GC-TCD models?

Yes. TDLAS units have no consumables (e.g., carrier gas, columns, or detectors) and require only biannual optical path cleaning. GC-TCD systems need column replacement every 18–24 months and carrier gas refills every 4–6 weeks—increasing TCO by 22–31% over 10 years.

Can one C2H2 analyzer monitor multiple transformers?

No. Each transformer requires dedicated oil sampling and gas extraction. Multiplexing introduces cross-contamination risks and violates IEC 62905 Clause 7.2.1. However, a single data acquisition unit can aggregate inputs from up to 8 independent C2H2 sensors via RS-485 daisy-chaining.

Get Your Customized C2H2 Monitoring Solution

Whether you’re specifying analyzers for a new 500 kV GIS substation, retrofitting legacy 132 kV bays, or building a centralized DGA dashboard for 200+ assets—we provide application-specific configuration support, including:

• Transformer oil compatibility assessment (mineral, ester, or silicone fluids)
• IEC 61850-9-2 SV packet mapping for protection relay integration
• Onsite commissioning supervision and operator training (2-day certified program)
• Calibration certificate traceable to NIST or PTB standards

Contact our power systems instrumentation team to request a technical datasheet, site survey checklist, or ROI calculation model tailored to your fleet size and voltage class.
