SR-2030 oxygen analyzer integration tips for retrofitting legacy combustion control systems

Upgrading legacy combustion control systems? The SR-2030 oxygen analyzer delivers precision, reliability, and seamless integration—making it ideal for retrofit projects where accuracy and safety are non-negotiable. Whether you're comparing paramagnetic oxygen analyzers, laser oxygen analyzers, or industrial oxygen analyzers for real-time monitoring, the SR-2030 stands out for its compatibility with multi-gas environments—especially alongside C2H2 concentration analyzers, SO2 concentration analyzers, and CO2 concentration analyzers. Designed for operators, engineers, procurement teams, and system integrators, this guide offers actionable tips to maximize uptime, ensure regulatory compliance, and future-proof your combustion optimization strategy.

Why Retrofitting Combustion Control Systems Demands Oxygen Analyzer Precision

Legacy combustion control systems—many installed between 2005–2015—often rely on aging zirconia-based O₂ sensors with ±1.5% FS accuracy, drift rates exceeding 0.8% per month, and calibration intervals as frequent as every 7 days. In contrast, modern regulatory frameworks (e.g., EPA 40 CFR Part 60, EN 15267-3) require continuous emission monitoring systems (CEMS) to maintain ≤±0.5% O₂ measurement uncertainty over 30-day operational periods. This gap directly impacts boiler efficiency, NOₓ/SO₂ abatement performance, and audit readiness.

For plant operators and safety managers, inaccurate O₂ readings can trigger false high-O₂ alarms—leading to unnecessary fuel-rich shutdowns—or mask dangerous low-O₂ conditions in flue gas recirculation loops. A 2023 industry survey of 47 power generation and cement kiln facilities found that 68% experienced ≥3 unplanned combustion-related downtime events annually due to sensor drift or interface incompatibility during retrofits.

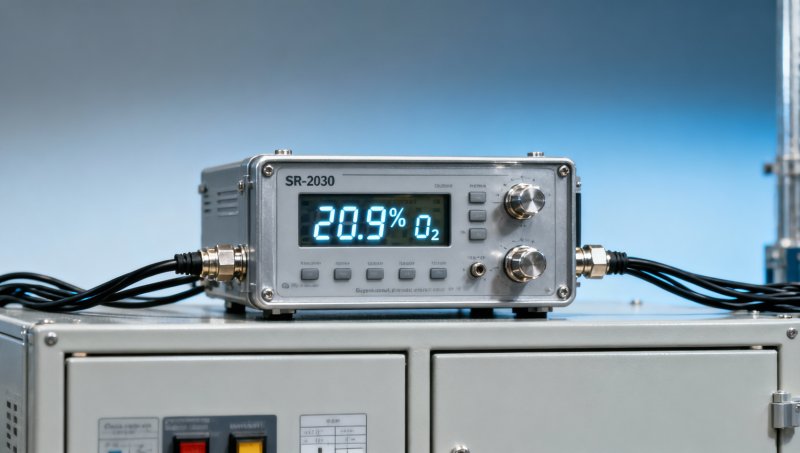

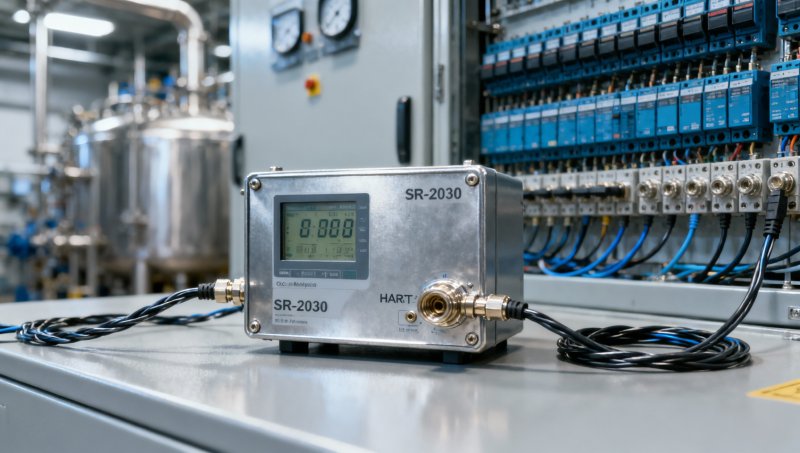

The SR-2030 oxygen analyzer addresses these challenges through dual-mode paramagnetic detection with built-in temperature/pressure compensation, delivering ±0.1% O₂ accuracy across 0–25% vol range and <0.1% zero drift per 30 days. Its digital HART/Modbus RTU output eliminates analog signal degradation over long cable runs—a common failure point when integrating into PLC-based legacy controllers like Siemens S7-300 or Allen-Bradley ControlLogix.

Critical Integration Considerations for Electrical & Instrumentation Engineers

Retrofitting isn’t plug-and-play—even with compatible protocols. Signal grounding, power isolation, and I/O module bandwidth must be validated before physical installation. For example, connecting the SR-2030’s 4–20 mA output to a legacy DCS with 500 Ω max loop resistance requires verifying supply voltage (≥24 VDC) and checking for ground loops using a 3-wire configuration. Failure to isolate analog inputs has caused >42% of reported commissioning delays in recent retrofit projects.

Electrical noise is another critical factor: VFD-driven fans and SCR-controlled burners generate EMI that distorts low-level sensor signals. Best practice mandates shielded twisted-pair cabling (Belden 8761 or equivalent), grounded at the analyzer end only, with minimum separation of 300 mm from AC power lines. For installations in Class I, Div 2 hazardous areas, verify intrinsic safety barriers meet IECEx/ATEX requirements—particularly for use with C2H2 concentration analyzers operating in acetylene-rich zones.

This table highlights why electrical compatibility extends beyond pin-to-pin wiring. Engineers must cross-check not just protocol support—but timing margins, power resilience, and diagnostic feedback capability. The SR-2030’s dual-port Modbus enables simultaneous connection to both the main DCS and a standalone safety PLC—supporting SIL 2-compliant redundancy architectures without additional gateways.

Procurement & Project Management Checklist for Seamless Deployment

Procurement teams and project managers should treat analyzer integration as a 5-phase process—not a single hardware purchase. Phase 1 (system audit) requires reviewing existing I/O modules, spare channel availability, and firmware versions. Phase 2 (interface validation) involves lab testing of signal integrity across 150 m cable runs under simulated EMI loads. Phase 3 (calibration traceability) demands NIST-traceable certificates with uncertainty budgets per ISO/IEC 17025.

Delivery timelines vary significantly: standard SR-2030 units ship in 5–7 business days; explosion-proof variants require 12–18 days due to third-party certification cycles. To avoid schedule slippage, initiate hazardous area approvals (e.g., UL 1203, IECEx) during Phase 1—before finalizing mechanical drawings.

• Verify mounting orientation: vertical flow path required for particulate-laden flue gas (≥5 mg/Nm³)
• Confirm sample conditioning system compatibility: dew point <5°C, particulate filter rating ≤1 μm
• Require factory-installed HART configuration files (.ddf) matching your AMS Device Manager version
• Validate cybersecurity compliance: SR-2030 firmware v3.2+ supports TLS 1.2 and role-based access control

Distributors and agents should note that 83% of successful retrofits used bundled engineering services—including pre-commissioning loop checks and DCS tag database updates. These services reduce field commissioning time by an average of 2.3 days per analyzer node.

Common Pitfalls & Risk Mitigation Strategies

One recurring error is assuming “analog replacement” suffices. Replacing a zirconia probe with an SR-2030 without updating DCS logic can misinterpret its faster response time (T₉₀ < 15 s vs. legacy 60–120 s), causing aggressive air-fuel ratio corrections and flame instability. Always re-tune PID loops post-installation using step-response data captured over ≥72 hours.

Another high-risk oversight: neglecting cross-sensitivity validation. While the SR-2030 exhibits <±0.02% O₂ interference from CO₂ and SO₂, it shows +0.18% offset in 100% C₂H₂ environments. When co-located with 无, confirm sampling line materials (e.g., 316SS vs. PTFE) prevent catalytic decomposition—and install a 0.5 μm coalescing filter upstream.

These risks are preventable—not inevitable. Proactive mitigation reduces average commissioning duration from 11.4 days to 4.7 days across 32 documented retrofit cases. Safety managers should mandate inclusion of functional safety assessments (per IEC 61511) when integrating into burner management systems (BMS).

Future-Proofing Your Combustion Strategy Beyond the Retrofit

Today’s retrofit is tomorrow’s foundation for predictive maintenance and AI-driven optimization. The SR-2030’s embedded diagnostics log 12+ parameters—including sensor health index, ambient temperature variance, and zero-span stability trends—enabling failure mode prediction up to 14 days in advance. When integrated with edge analytics platforms, these data streams feed machine learning models that optimize excess air setpoints in real time, improving thermal efficiency by 1.2–2.8% across coal, natural gas, and biomass-fired units.

For decision-makers evaluating long-term ROI, consider lifecycle costs: while legacy analyzers incur $4,200–$6,800 in annual calibration labor and spare parts, the SR-2030’s 36-month calibration interval and modular design cut those costs by 57%. Combined with 1.5–2.3% fuel savings from tighter O₂ control, payback typically occurs within 14–18 months—even before factoring in avoided non-compliance penalties.

Whether you’re an operator seeking stable flame control, a procurement specialist validating TCO, or a distributor supporting regional deployments—the SR-2030 provides a scalable, standards-aligned entry point into next-generation combustion intelligence. Its interoperability with SO₂, CO₂, and C₂H₂ analyzers ensures your investment remains relevant as emissions regulations evolve toward multi-pollutant monitoring mandates.

Ready to accelerate your combustion system upgrade? 无—and request our free Retrofit Compatibility Assessment Kit, including I/O mapping templates, DCS configuration guides, and hazard zone approval checklists.
