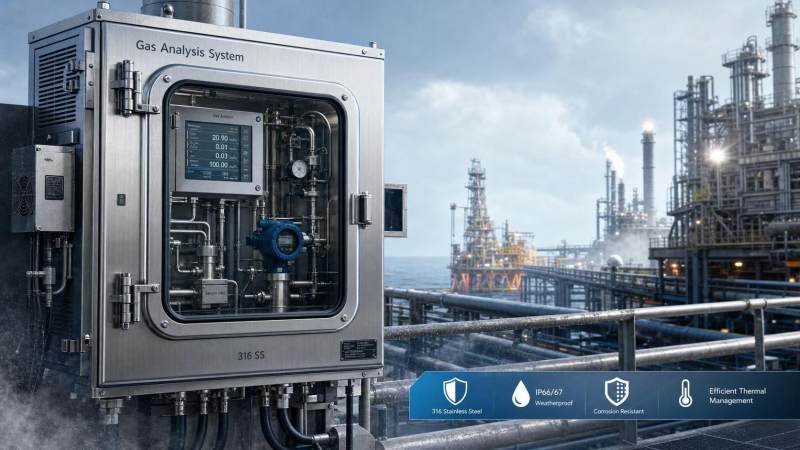

How to Choose a Gas Analyzer Enclosure for Harsh Industrial Sites

A gas analyzer enclosure often decides whether an analyzer performs as designed or spends its life fighting the site around it. In corrosive plants, dusty kilns, offshore platforms, and hot utility areas, the enclosure is more than a metal box. It shapes thermal stability, sample system integrity, service access, certification scope, and long-term operating cost.

That is why enclosure selection has become a more visible technical issue across process industries. As digital monitoring expands and compliance pressure grows, weak enclosure choices show up quickly as drift, condensation, fouling, shutdowns, or failed inspections. For organizations that rely on high-confidence instrumentation intelligence, the right decision starts with the environment, not the catalog.

Why enclosure choice matters more than it seems

A gas analyzer enclosure protects the analyzer, but protection alone is not the full story. It also creates a controlled operating zone around sensitive electronics, optics, tubing, and calibration components.

If that zone is unstable, measurement quality suffers. Temperature swings can shift sensor response. Moisture ingress can damage electronics. Dust buildup can block cooling paths. Corrosive vapors can shorten component life even when the analyzer itself is technically suitable.

This is especially relevant in the sectors tracked closely by Global Instrument Hub, including energy, environmental monitoring, process manufacturing, and laboratory-linked industrial systems. In all of these settings, measurement reliability is tied directly to safe control and defensible data.

Start with the real site, not the nominal spec

The first mistake in gas analyzer enclosure selection is treating the site as a simple temperature range. Harsh industrial exposure is usually a combination of factors, and the interactions matter.

A coastal terminal may combine salt spray, UV, and wind-driven rain. A cement plant may create abrasive dust and high ambient heat. A refinery shelter may look controlled, yet still face hydrocarbon vapor, washdown, and hazardous area classification.

A practical evaluation usually begins with this question: what will attack the enclosure first? The answer points toward material, sealing strategy, purge concept, and thermal control needs.

Site conditions that change the decision

• Corrosive gases, chlorides, acid mist, or fertilizer vapors
• Fine dust, soot, cement particles, or metallic debris
• High ambient temperature, solar loading, or freeze risk
• Vibration from rotating equipment or transport skids
• Hazardous area requirements under ATEX, IECEx, or local codes
• Frequent washdown, heavy rain, or flood-prone placement

A credible gas analyzer enclosure decision should be based on the combined operating profile, including upset conditions, startup cycles, and maintenance realities.

Material selection is about exposure chemistry

Material choice is often discussed in broad terms, but harsh sites demand more precision. Painted carbon steel may look economical, yet coatings fail quickly in chloride-heavy or chemically aggressive areas.

Stainless steel is a common step up, especially 304 or 316 grades. The difference matters. In marine, offshore, wastewater, or fertilizer environments, 316 usually offers better resistance to pitting and corrosion.

Fiberglass-reinforced polyester or engineered non-metallic housings can also work well where corrosion dominates and electrical isolation is useful. Still, they need careful review for UV stability, mechanical impact resistance, and fire performance.

The gas analyzer enclosure should be specified with the same seriousness applied to wetted sample parts. Otherwise, enclosure degradation becomes the hidden failure path.

Ingress protection, sealing, and pressure control

Ingress ratings are useful, but they are only a starting point. IP65, IP66, or NEMA ratings describe resistance under defined conditions, not every plant-specific combination of dust, washdown, and pressure cycling.

Door gasket quality, cable gland selection, hinge design, and penetrations for tubing or drains matter just as much. Many enclosure failures begin at these small interfaces rather than at the main body.

For hazardous locations, the gas analyzer enclosure may also need purge and pressurization. That adds another layer of decision-making because purge systems affect safety compliance, operating cost, and maintenance complexity.

A well-sealed enclosure is not automatically a better enclosure. If trapped humidity cannot escape, condensation can form inside during daily thermal swings. In some settings, controlled ventilation or conditioning is the better answer.

Thermal control is often the deciding factor

Many analyzers fail in harsh sites because the thermal design around them was underestimated. Electronics, sample conditioning assemblies, and some sensing technologies need a stable internal range to remain accurate.

Ambient temperature is only part of the load. Solar radiation, nearby process heat, analyzer power dissipation, and heated sample lines can raise internal temperature well above the nameplate environment.

On the cold side, freezing can damage tubing, regulators, drains, and calibration circuits. In those cases, the gas analyzer enclosure may need insulation, heaters, thermostatic control, or a full shelter approach.

Questions that improve thermal assessment

• What is the true peak internal temperature during summer operation?
• Does the analyzer require a narrow operating band for accuracy?
• Will opening the door during service cause rapid thermal shock?
• Is there enough airflow around external coolers or heat exchangers?
• Can the thermal system function in hazardous areas without creating compliance issues?

This is one area where lifecycle thinking matters. A cheaper enclosure with weak cooling can create years of drift checks, unplanned maintenance, and premature analyzer replacement.

Access, maintainability, and analyzer uptime

A gas analyzer enclosure should support maintenance, not complicate it. Tight internal layouts, poor door swing clearance, and inaccessible tubing runs turn routine calibration into a slow and risky task.

This matters across CEMS installations, process gas skids, hydrogen monitoring packages, combustion control systems, and emissions compliance stations. Analyzer uptime depends as much on serviceability as on measurement technology.

Useful details include gland plate location, removable panels, internal lighting, clear instrument labeling, corrosion-resistant hardware, and enough space for tools and test equipment. Door-mounted components should not strain cables or tubing during access.

From a supply chain perspective, maintainability also affects spare strategy. If fans, filters, heaters, purge parts, and seals are proprietary or difficult to source, the enclosure becomes a long-term support risk.

Certification, documentation, and supplier discipline

In regulated or hazardous settings, enclosure selection cannot be separated from documentation quality. Technical teams increasingly need traceable evidence, not general claims.

That means checking hazardous area certificates, material details, thermal calculations, ingress ratings, wiring practices, and panel drawings. A gas analyzer enclosure that looks equivalent on paper may differ sharply in certified operating limits.

This is where industry intelligence platforms such as GIH add value. Better sourcing decisions come from comparing technical credibility, certification discipline, and consistency across suppliers, not simply comparing base price.

A strong review package usually includes:

• Environmental design assumptions
• Hazardous area compliance records
• General arrangement and maintenance access drawings
• Thermal management calculations or test data
• BOM transparency for replaceable components
• Inspection and factory acceptance documentation

A practical way to narrow the options

When several enclosure concepts appear acceptable, the best comparison method is to rank them against failure consequences. Not every site needs the most complex gas analyzer enclosure, but every site needs the right compromise.

Start by mapping the site environment, analyzer technology, certification boundary, and maintenance model. Then compare enclosure candidates against corrosion resistance, thermal stability, ingress control, service access, and spare availability.

In practice, the strongest choice is usually the one that keeps data quality stable while reducing intervention frequency. That aligns with the broader instrumentation reality GIH highlights across industrial modernization: accurate measurement only creates value when the physical infrastructure around it is equally dependable.

Before issuing a final specification, it is worth reviewing one actual site case, one maintenance scenario, and one upset condition. That step often reveals whether the selected gas analyzer enclosure is merely compliant on paper or genuinely fit for harsh industrial service.
