When choosing between paramagnetic oxygen analyzers and zirconia oxygen analyzers for industrial applications, maintenance technicians must consider accuracy, reliability, and operational conditions. Paramagnetic oxygen analyzers offer exceptional precision for critical oxygen measurement needs, especially in demanding environments. This guide explores both technologies to help you determine which analyzer better suits your specific maintenance requirements and process conditions.

Understanding Oxygen Analyzer Technologies

Industrial oxygen measurement relies on two dominant technologies: paramagnetic and zirconia-based analyzers. The paramagnetic oxygen analyzer operates on the principle that oxygen molecules are attracted to magnetic fields, allowing for direct measurement of O2 concentration. This technology provides unparalleled accuracy (±0.1% O2) across wide measurement ranges (0-100% O2), making it ideal for applications requiring high-precision monitoring like pharmaceutical production or combustion control systems.

Zirconia analyzers utilize solid electrolyte sensors that generate voltage proportional to oxygen partial pressure differences. While offering faster response times (T90 < 5 seconds), they typically maintain accuracy of ±0.5% O2 and require reference gas calibration. For maintenance teams, the choice between these technologies often comes down to specific process requirements, environmental conditions, and long-term maintenance considerations.

Key Performance Comparison

When evaluating paramagnetic vs. zirconia oxygen analyzers, technicians should examine these critical parameters:

• Accuracy: Paramagnetic analyzers maintain superior accuracy (±0.1% vs ±0.5% for zirconia) across full measurement ranges
• Calibration: Zirconia cells require frequent calibration (weekly/monthly) while paramagnetic units need only annual verification
• Temperature Sensitivity: Paramagnetic technology performs consistently from -20°C to 50°C; zirconia sensors require heating to 700°C
• Cross-Gas Interference: Paramagnetic analyzers are immune to background gases except strong paramagnetics like NO; zirconia sensors can be affected by reducing gases

Maintenance Considerations for Industrial Environments

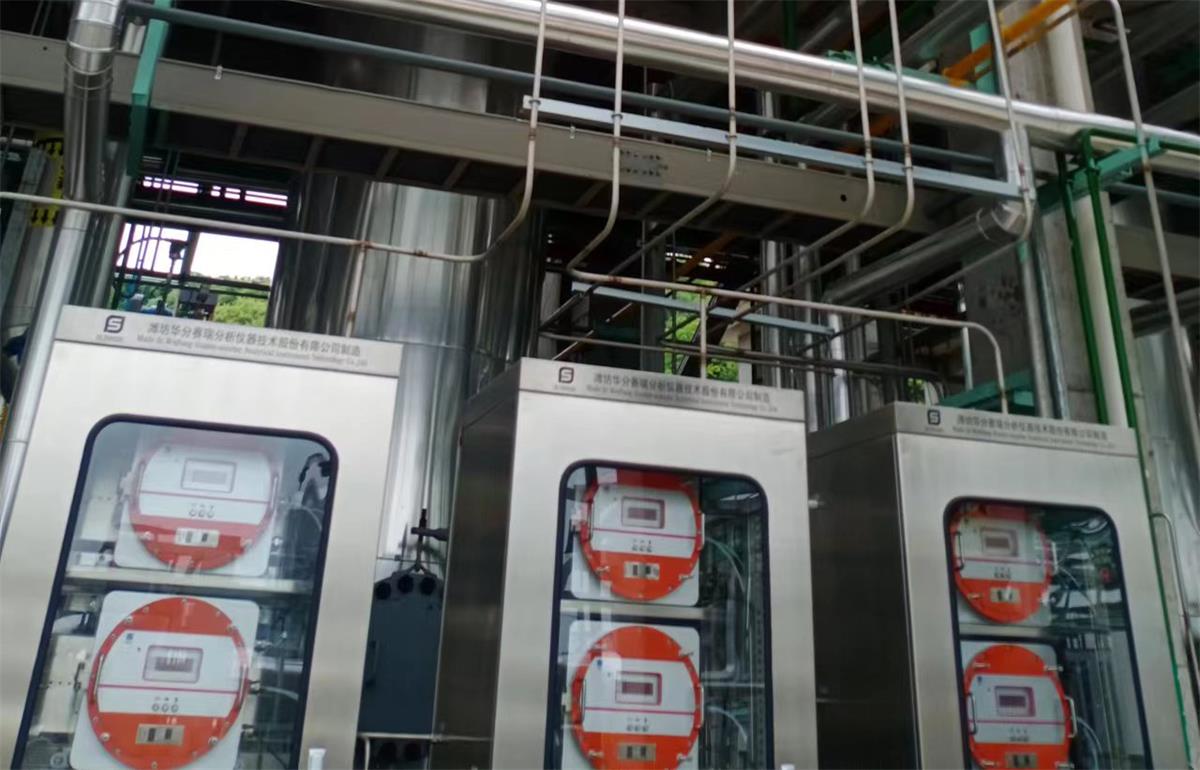

For maintenance personnel, paramagnetic oxygen analyzers present distinct advantages in harsh industrial settings. Their rugged design contains no consumable parts like zirconia cells (typically requiring replacement every 2-5 years). The absence of high-temperature operation eliminates burner maintenance and reduces explosion risks in hazardous areas. When paired with protective enclosures like the SR-S2000 Gas Analyzer Shelter, these analyzers achieve exceptional reliability in chemical, petroleum, and metallurgical applications where dust, moisture, and corrosive gases challenge instrumentation.

The SR-S2000's IP65-rated stainless steel construction and 70-80mm flame-retardant insulation provide ideal protection for sensitive paramagnetic analyzers. Its integrated PLC control system maintains constant temperature conditions (±1°C) critical for measurement stability, while the <4Ω grounding system prevents electrical interference that could affect analyzer performance.

Installation and Calibration Best Practices

Proper installation significantly impacts analyzer longevity. For paramagnetic units:

1. Mount analyzers vertically to prevent particulate accumulation in measurement chambers
2. Maintain 1.5x pipe diameter straight-run upstream/downstream for representative sampling
3. Install vibration isolators in high-traffic areas to prevent microphonic effects
4. Use heated sample lines when measuring wet gases to prevent condensation

Calibration procedures differ markedly between technologies. Paramagnetic analyzers employ automated span checks using ambient air (20.95% O2), while zirconia analyzers require certified zero/span gases. Modern paramagnetic units like those housed in the SR-S2000 shelter often feature self-diagnostic routines that alert technicians to calibration drift or system faults through integrated HMI interfaces.

Application-Specific Selection Guide

Choosing between paramagnetic and zirconia technologies requires careful analysis of your specific application:

Extreme Environment Considerations

In offshore platforms, mining operations, or desert installations, environmental protection becomes paramount. The SR-S2000 shelter's N-shaped steel plates and 6mm anti-static flooring provide exceptional durability against mechanical stress and electrostatic discharge. For maintenance teams, its swing-out doors and tempered glass observation windows facilitate routine checks without exposing sensitive paramagnetic analyzers to external conditions.

Total Cost of Ownership Analysis

While paramagnetic oxygen analyzers typically command higher initial costs (20-30% premium over zirconia), their long-term operational savings often justify the investment:

• Reduced consumables: No replacement sensors vs. zirconia cells ($800-$2,000 every 3-5 years)
• Lower calibration costs: Annual vs. monthly calibration gas requirements
• Minimized downtime: Fewer service interventions with mean time between failures (MTBF) exceeding 10 years
• Energy efficiency: No heating elements (zirconia analyzers consume 50-100W continuously)

When calculating ROI, maintenance teams should factor in these operational savings over a 10-year horizon. The integrated design of systems like the SR-S2000 further enhances value by combining analyzer protection with sample conditioning and data acquisition in a single, maintenance-optimized package.

Conclusion and Implementation Recommendations

For maintenance technicians prioritizing measurement accuracy and long-term reliability, paramagnetic oxygen analyzers represent the superior choice in most industrial applications. Their robust design, minimal maintenance requirements, and consistent performance under variable conditions make them particularly valuable for critical processes where measurement errors could impact product quality or safety.

When implementing these analyzers in challenging environments, consider pairing them with purpose-built protective solutions like the SR-S2000 Gas Analyzer Shelter to maximize system uptime and measurement integrity. Its combination of environmental protection, thermal stability, and maintenance-friendly features creates an ideal platform for precision oxygen monitoring.

Next Steps: Contact our application engineering team for a customized assessment of your oxygen measurement requirements. We'll help you select and configure the optimal analyzer solution for your specific process conditions and maintenance capabilities.
