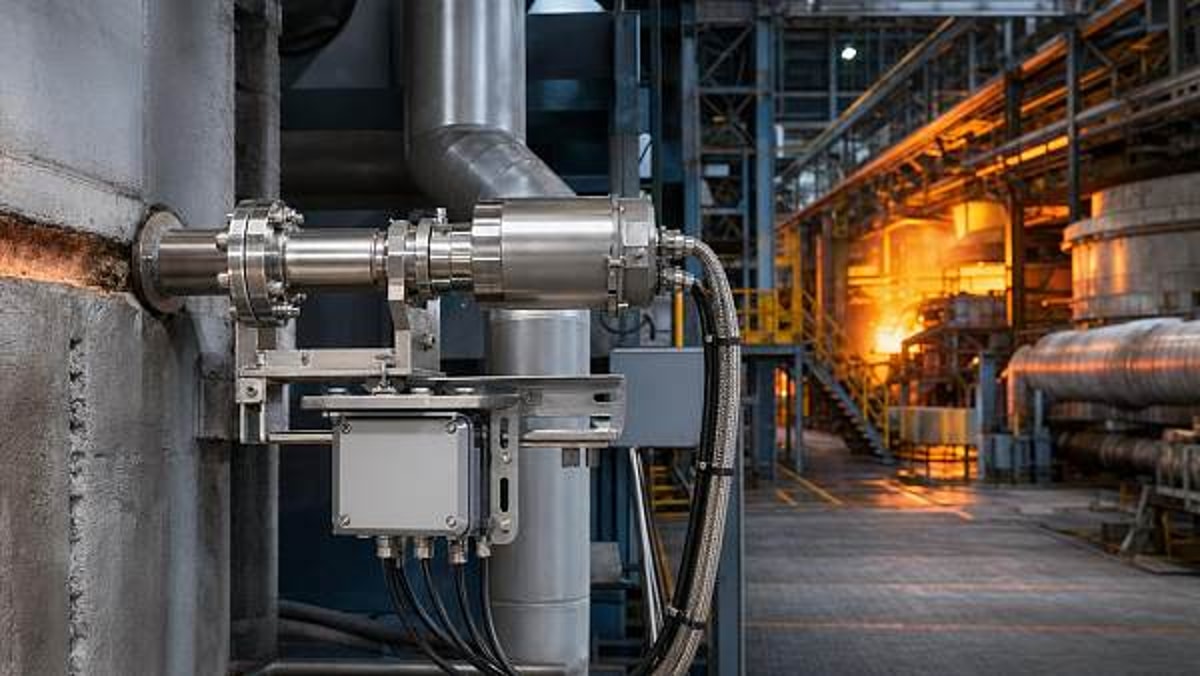

High Temperature Analyzer Failures Often Start with Installation Choices

Many high temperature analyzer failures are traced back not to component quality, but to poor installation decisions made at the start. For after-sales maintenance teams, understanding how mounting position, wiring layout, thermal isolation, and process compatibility affect long-term performance is essential. This article explains why installation choices often determine analyzer stability, accuracy, and service life in demanding industrial environments.

Why installation decisions have such a large impact on a high temperature analyzer

In instrumentation applications across industrial manufacturing, power generation, environmental monitoring, laboratory support systems, and automation control, a high temperature analyzer is rarely working in a benign environment. It may be installed near furnaces, kilns, reformers, incinerators, heated ducts, or high-load process lines where radiant heat, vibration, contamination, and unstable utilities all interact. In these conditions, the analyzer often fails because the installation did not protect the measurement system from the process.

For after-sales maintenance personnel, this matters because recurring alarms, drifting readings, premature sensor replacement, and repeated service visits are frequently symptoms of an installation mistake rather than a defective analyzer. If the root cause is not corrected, replacing probes, boards, transmitters, or cables only restores operation for a short time.

The instrumentation industry supports digital transformation and intelligent upgrading by delivering accurate measurement, monitoring, analysis, and control. That value is only realized when the analyzer is integrated correctly with process conditions, control systems, and maintenance access requirements. Installation is therefore not a simple mechanical task. It is part of the measurement design.

• Wrong mounting position exposes the analyzer to excessive radiant heat or poor representative sampling.
• Improper cable routing introduces electrical noise, insulation aging, and signal instability.
• Insufficient thermal isolation causes internal electronics to operate above their safe ambient range.
• Poor process compatibility leads to corrosion, dust loading, condensation, or plugging.
• Restricted maintenance clearance increases downtime because routine service becomes difficult or unsafe.

Which installation choices cause the most frequent failures?

The most common high temperature analyzer failures begin with a small number of predictable installation errors. Maintenance teams can reduce repeat faults by checking these points first before escalating to component replacement or software diagnosis.

Mounting too close to direct heat sources

A high temperature analyzer may be designed for hot process measurement, but that does not mean the electronics, seals, junction boxes, displays, and cable glands can tolerate direct radiant heat indefinitely. A common field mistake is placing the full assembly where process temperature and ambient exposure exceed the allowable enclosure rating. This accelerates gasket hardening, PCB aging, drift, and intermittent shutdown.

Selecting a poor sampling or sensing point

When the process takeoff point sits in a dead zone, turbulent eddy, stratified gas layer, or dust-heavy pocket, the analyzer may report unstable or misleading values. This can trigger false maintenance actions. In combustion, emissions, or process composition analysis, a representative measurement point matters as much as analyzer accuracy.

Ignoring cable segregation and grounding practice

Signal cables routed alongside motor power, VFD output, heater circuits, or switching power lines can pick up noise. For analyzers tied into PLC, DCS, or SCADA systems, poor shielding and grounding can look like instrument drift, communication faults, or random alarm behavior. After-sales teams often inherit these issues after commissioning is complete.

Skipping thermal barriers and protective accessories

Insulation standoffs, sunshields, purge arrangements, cooling sections, and remote electronics configurations are sometimes treated as optional cost items. In reality, they are part of the analyzer survival strategy. Removing them during installation to simplify mounting often shortens service life and increases calibration frequency.

A practical failure map for after-sales maintenance teams

The table below helps connect common field symptoms of a high temperature analyzer with likely installation-related causes. This is useful when maintenance personnel need to decide whether to replace parts, adjust the installation, or escalate to process engineering.

This failure map shows why high temperature analyzer troubleshooting should begin with installation review. A disciplined inspection often prevents unnecessary spare parts consumption and reduces repeated site interventions.

How to choose the right installation layout for different industrial scenarios

The correct installation layout depends on process temperature, particulate load, maintenance access, utility availability, and control integration. In the broader instrumentation industry, one analyzer architecture rarely fits every site. Maintenance teams need scenario-based judgment.

Direct in-situ measurement

This layout places the sensing element directly in the process stream. It can reduce lag time and simplify sample handling, but it exposes the analyzer to more thermal stress and contamination. It is often suitable where fast response is critical and maintenance access is safe.

Extractive system with remote analyzer cabinet

This approach separates the hot process interface from the analyzer electronics. It improves serviceability and thermal protection, but sample line heating, transport delay, and condensation control become critical. It is often preferred where ambient conditions around the process are too severe for integrated electronics.

Hybrid arrangement with remote electronics

A hybrid layout keeps the sensor or probe at the process while moving sensitive electronics away from heat and vibration. This can be a strong compromise for a high temperature analyzer used in power, metallurgy, thermal processing, or waste treatment environments.

The comparison below helps after-sales teams and technical buyers evaluate layout choices based on service burden and risk.

No layout is universally better. The right choice depends on whether the site prioritizes fast response, lower analyzer exposure, simpler calibration access, or reduced installation complexity. For a high temperature analyzer, maintenance outcomes improve when layout decisions are made with the full lifecycle in mind.

What should maintenance teams inspect during installation and commissioning?

A structured installation checklist is one of the most effective ways to reduce future analyzer failures. It supports not only commissioning quality, but also long-term service consistency across multiple plants and equipment types.

1. Verify the process connection material against gas chemistry, pressure, and thermal cycling. Corrosive or particulate-heavy streams may require upgraded wetted materials or protective assemblies.
2. Measure actual ambient temperature around the enclosure during peak operation, not only during cold startup. Many failures appear only after the surrounding equipment reaches steady-state heat.
3. Check insertion depth, orientation, and clearance from bends, dampers, burners, or walls to improve sample representativeness.
4. Separate low-level signal wiring from power and switching circuits. Confirm shield termination and grounding follow the analyzer manufacturer and site electrical practice.
5. Confirm there is enough access for calibration gas connection, filter replacement, probe removal, and safe technician movement with PPE and tools.
6. Review purge air, cooling air, or auxiliary power quality if the high temperature analyzer depends on support utilities.

This checklist is especially important in plants where instrumentation systems are installed by separate contractors. Mechanical completion may look acceptable, while analyzer maintainability remains poor. After-sales teams should document these observations early to avoid future dispute over warranty, service scope, and recurring downtime.

Procurement and selection: what should be evaluated before buying a high temperature analyzer?

Many installation problems begin upstream during procurement. If the selected high temperature analyzer does not match the process, the installer is forced to improvise with brackets, shields, rerouted cables, or unsuitable sample paths. That raises both service costs and failure risk.

The table below gives a practical selection framework that aligns procurement decisions with installation and maintenance realities in the instrumentation industry.

For buyers and maintenance personnel working together, this evaluation model shifts the conversation from initial purchase price to installed reliability. That is often where the real lifecycle value of a high temperature analyzer is decided.

Cost, downtime, and alternatives: is a cheaper installation really cheaper?

A lower-cost installation can become expensive when it increases calibration frequency, emergency callouts, production interruptions, or spare part usage. This is especially true in energy, industrial process, and environmental applications where analyzer data affects compliance, combustion control, product quality, or equipment protection.

Typical cost traps include omitting heat shields, placing the analyzer in a hard-to-reach location, using non-ideal cable routes to save time, or skipping sample conditioning support where it is actually necessary. These decisions save money during installation but create recurring service costs.

• If direct mounting creates repeat overheating, remote electronics may cost more initially but reduce replacement frequency.
• If an in-situ design fouls rapidly in a dust-heavy process, an extractive approach with proper conditioning may reduce cleaning downtime.
• If maintenance access requires scaffolding or shutdown isolation every time, relocating service points can deliver strong lifecycle savings.

After-sales maintenance teams are often the first to see these hidden costs. Their field feedback should be treated as an input to future procurement standards, not just as a reaction to failures that have already happened.

Standards, compliance, and good practice considerations

While exact requirements vary by application, good installation practice for a high temperature analyzer should align with general electrical safety, process instrumentation, environmental monitoring, and plant maintenance rules. In some sites, hazardous area requirements, EMC considerations, enclosure protection, and traceable calibration procedures also apply.

Maintenance teams should confirm whether the installation environment requires attention to items such as ingress protection, proper cable gland selection, grounding continuity, isolation clearances, and instrument loop verification. In regulated sectors, the analyzer may also support reporting or quality records, which makes installation quality part of data credibility.

Key compliance-oriented checks

• Confirm the installed location matches the enclosure and temperature ratings declared for the equipment.
• Review electrical segregation and grounding to reduce EMC-related false readings and communication problems.
• Document calibration access and maintenance procedure steps so service actions remain repeatable.
• Where applicable, check whether process safety or hazardous area rules affect mounting accessories and cable entries.

FAQ: what do maintenance teams most often ask about high temperature analyzer installation?

How do I know whether the high temperature analyzer is failing because of installation or component damage?

Start by looking for patterns. If failures repeat after replacement, happen only at peak process temperature, or coincide with nearby electrical loads, installation is a strong suspect. Measure local ambient temperature, inspect cable routing, check grounding, and review probe location before changing major parts again.

Which installation factor causes the most hidden problems?

Poor mounting location is often the most underestimated issue. A high temperature analyzer can suffer from both excessive heat exposure and poor sample representativeness at the same time. That combination creates drift, fouling, and unstable readings that appear unrelated unless the process location is reviewed carefully.

When is remote electronics the better choice?

Remote electronics are worth considering when the hot zone has strong radiant heat, high vibration, limited service space, or repeated premature failure of displays and boards. They are also useful when maintenance teams need safer and faster access for calibration and diagnostics.

What should be prioritized if budget is limited?

Do not cut spending on thermal protection, proper cable routing, or maintainable access. These three areas have a large effect on the lifecycle cost of a high temperature analyzer. A simpler analyzer with a sound installation usually performs better over time than a more advanced unit installed poorly.

How early should after-sales maintenance teams get involved?

Ideally before final layout approval and definitely before commissioning. Maintenance teams understand access restrictions, common failure modes, spare strategy, and calibration workflow. Their input can prevent design choices that look acceptable on drawings but create long-term service problems in the field.

Why choose us for high temperature analyzer application support?

In the instrumentation industry, successful analyzer performance depends on more than the device itself. It depends on how measurement, process conditions, wiring, protection, calibration, and maintenance access are integrated into one workable solution. That is why our support focuses on installation logic as much as product configuration.

If your team is dealing with repeated high temperature analyzer alarms, drift, overheating, or short service intervals, we can help review the installation path and selection basis. You can contact us for practical topics such as parameter confirmation, mounting arrangement review, remote electronics feasibility, sample path suggestions, delivery timing, spare planning, certification-related questions, sample support, and quotation discussion.

For new projects, we can also support pre-purchase evaluation so the analyzer, accessories, and service requirements are aligned before installation starts. That helps after-sales maintenance teams reduce future interventions, improve uptime, and make better long-term decisions for demanding industrial environments.
