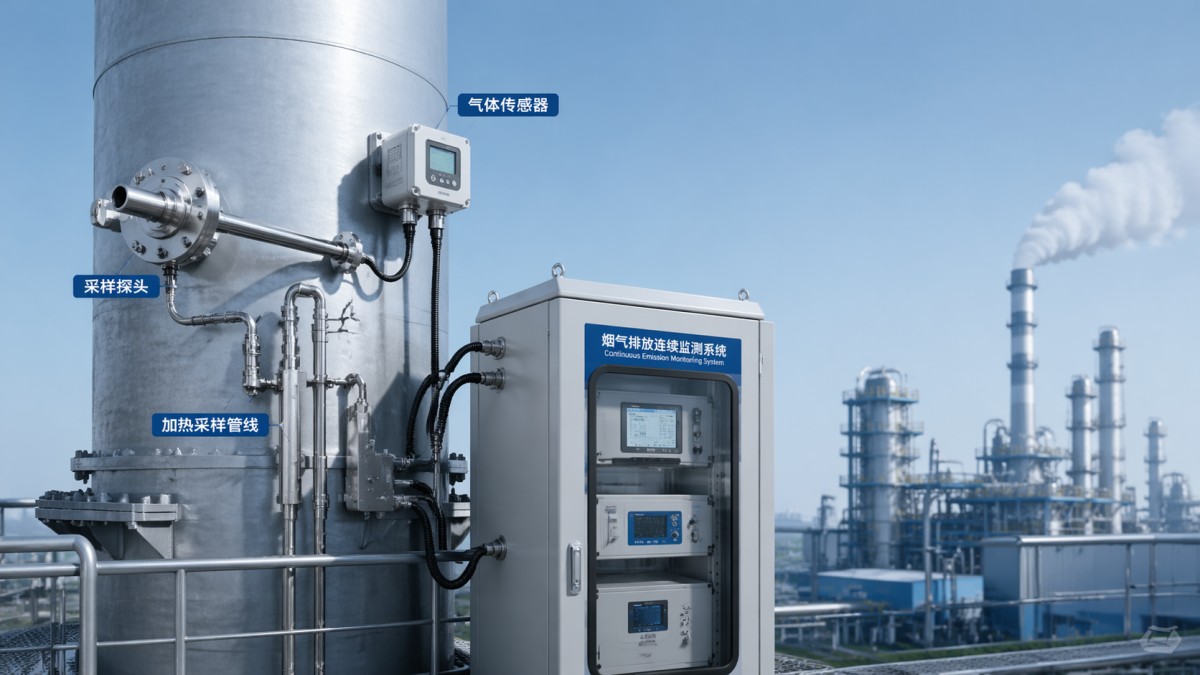

Flue equipment plays a critical role in determining emission results, especially when paired with the right emission sensor, gas sensor, and process sensor technologies. From stack equipment selection to overall emission equipment performance, every component can influence accuracy, compliance, and operating efficiency. This article explores how industrial equipment and process equipment choices affect monitoring outcomes and why they matter for technical, operational, and business decision-makers.

For researchers, operators, technical evaluators, procurement teams, project managers, and financial approvers, the main challenge is not simply buying emission equipment. The real task is understanding how flue design, gas conditioning, sensor compatibility, sampling stability, and maintenance practices affect the quality of emission data over months and years, not just during commissioning.

In industrial manufacturing, energy and power, environmental monitoring, and automated process control, a small mismatch between stack equipment and measurement technology can create repeated calibration drift, delayed reporting, or avoidable compliance risk. A practical review of flue equipment therefore helps both technical and commercial stakeholders make more reliable decisions.

Why Flue Equipment Has a Direct Impact on Emission Results

Flue equipment is not just a passive duct or stack structure. It creates the physical conditions in which emission sensors, gas sensors, and process sensors must operate. Gas velocity, temperature distribution, moisture load, particulate concentration, and turbulence level all affect how representative a measured sample will be. In many industrial systems, even a 5% to 10% deviation in sample quality can lead to larger reporting errors when concentrations approach regulatory thresholds.

A flue system with poor sealing, uneven flow profile, or excessive condensation can distort readings for O2, CO, NOx, SO2, CO2, and dust. This is especially important where continuous emission monitoring systems operate 24 hours a day and where maintenance windows may only occur every 30 to 90 days. If the equipment environment is unstable, the sensor itself may be blamed for a problem caused by the installation design.

For operators and safety managers, the effect is practical: false alarms, unstable baselines, extra zero and span checks, and more manual interventions. For business decision-makers, the same issue becomes a cost problem. Unplanned service visits, spare part replacement, repeated validation tests, and reporting disputes can increase lifecycle cost far beyond the initial purchase price.

In process-intensive sectors such as boilers, waste gas treatment, furnaces, kilns, and thermal oxidizers, the flue path also determines whether gases are stratified or mixed. If a measurement point is installed too close to bends, dampers, or fans, readings may vary significantly across the duct section. A difference of 1 to 2 meters in probe location can materially change data consistency.

Key mechanisms that influence measurement quality

• Gas flow distortion can reduce sample representativeness and increase reading variability.
• Condensation in sampling lines can dissolve soluble gases and shift concentration values.
• Excessive dust loading may contaminate filters, optics, and sensor surfaces within 7 to 30 days.
• Temperature swings outside the design range may shorten analyzer and probe life.
• Inadequate access platforms can delay maintenance and increase service risk.

Typical relationships between flue conditions and emission performance

The table below shows how common flue equipment conditions affect measurement stability, maintenance burden, and compliance confidence. These are common industrial ranges rather than site-specific guarantees, but they are useful for project evaluation and early equipment selection.

The main conclusion is simple: emission results depend on the measurement environment as much as on the analyzer. That is why flue equipment should be reviewed as part of the full instrumentation and process equipment system, not as an isolated mechanical item.

How Stack Equipment and Sensor Integration Affect Accuracy

A well-selected stack equipment arrangement supports stable sensor operation, while a poorly matched arrangement creates recurring correction work. Accuracy is influenced by probe insertion depth, sampling point location, sensor response time, line heating control, and calibration accessibility. In continuous systems, a response delay of 20 to 60 seconds may be acceptable for trend monitoring, but not for fast process upset detection.

Emission sensor performance must be matched with actual flue conditions. For example, high-temperature gas streams may require probe materials and seals capable of handling 180°C to 400°C, while wet corrosive streams may demand heated extractive systems rather than simple in-situ arrangements. Process sensor and gas sensor selection should therefore be linked to chemical exposure, dust burden, and service interval targets.

Technical evaluation teams often focus on analyzer specifications such as detection range or repeatability. Those are important, but they do not replace installation suitability. A sensor with excellent laboratory precision can still underperform in a plant if purge air quality is poor, sample lines are too long, or the stack location creates unstable gas stratification.

Commercial teams should also pay attention to integration complexity. Systems that require 5 to 7 auxiliary components, including pumps, chillers, heated lines, filters, and calibration valves, may deliver strong performance but also bring higher maintenance intensity. In contrast, a simpler design may reduce ownership cost if the process gas is clean and stable enough.

Common integration factors to evaluate

1. Sampling method: in-situ, extractive, or dilution-based depending on moisture, dust, and response needs.
2. Probe material and insertion depth: important for corrosion resistance and sample representativeness.
3. Heated sample line control: often maintained above 120°C to reduce condensation risk.
4. Calibration design: zero and span access should support routine checks within 15 to 30 minutes.
5. Control and communication: integration with PLC, DCS, or SCADA should support stable data transfer.

Comparison of typical monitoring approaches

Different flue and emission equipment combinations suit different industrial conditions. The table below helps project teams compare the practical trade-offs between common monitoring approaches.

This comparison shows that there is no universal best option. The right choice depends on process conditions, compliance targets, access constraints, and expected maintenance resources. In instrumentation projects, integration fit is usually more valuable than buying the most advanced analyzer on paper.

Selection Criteria for Technical, Commercial, and Management Teams

Because flue equipment influences compliance, operations, and cost at the same time, selection should not be left to one department alone. A balanced review usually involves operations, environmental or quality staff, automation engineers, project managers, and finance. In larger projects, distributors or system integrators may also contribute to site adaptation and service planning.

Technical teams normally prioritize measurement accuracy, response stability, and compatibility with gas composition. Operators focus on ease of cleaning, filter replacement time, and alarm management. Financial reviewers are more likely to compare capital cost with expected maintenance frequency, spare part budget, and service availability over 3 to 5 years.

A practical selection process often works best when teams define 4 to 6 weighted criteria before requesting quotations. This prevents procurement from comparing systems solely on initial price. A lower-cost emission equipment package may become more expensive if it needs monthly service while a better-matched solution only needs quarterly attention.

Project managers should also include commissioning complexity and shutdown coordination in the decision. Installation may take 2 to 5 days for straightforward retrofits, but larger stack modification projects can require 2 to 4 weeks including platform work, insulation changes, cable routing, I/O verification, and performance validation.

Recommended evaluation checklist

• Does the flue equipment support representative sampling at the intended measurement point?
• Are gas temperature, moisture, and dust conditions inside the design envelope of the sensor system?
• Can routine maintenance be completed safely within the available access and shutdown window?
• What is the expected spare part cycle for filters, pumps, seals, and calibration components?
• Is local service available within 24 to 72 hours if performance drops unexpectedly?

Procurement factors often reviewed in B2B projects

The table below summarizes common decision factors that help both technical and commercial stakeholders assess flue and emission equipment in a structured way.

Using this kind of matrix helps organizations avoid a narrow price-only decision. It also supports clearer communication between engineers, procurement staff, and management when several emission equipment options appear similar at first glance.

Installation, Maintenance, and Common Mistakes That Change Emission Outcomes

Even well-selected flue equipment can underperform if installation discipline is weak. Common issues include placing measurement points too close to elbows, using insufficient insulation on heated lines, failing to protect cabinets from ambient extremes, and underestimating the effect of vibration. These problems may not stop startup, but they often reduce stability over the first 3 to 6 months of operation.

Maintenance planning is equally important. Dirty or wet flue gas can require weekly visual checks and monthly consumable replacement, while cleaner systems may only need quarterly service. Operators should understand not only what to maintain, but also which symptoms suggest the flue environment is driving the problem. Repeated baseline drift, slow response, and filter overload are often installation or process issues rather than analyzer defects.

A frequent mistake in retrofit projects is keeping the old stack tap location even when process conditions have changed. Another is selecting process equipment without considering future expansion, such as adding new combustion stages or treatment units. If gas flow or composition changes by 15% to 25%, the original measurement arrangement may no longer be suitable.

Training is also undervalued. A 2-hour handover is rarely enough for complex emission systems. Many sites benefit from 1 to 2 days of structured instruction covering calibration, fault isolation, filter handling, condensate management, and alarm logic. Better operator understanding usually reduces unnecessary service calls and shortens troubleshooting time.

Common mistakes to avoid

1. Installing sampling points where flow is not fully developed.
2. Using sample line routing that creates cold spots and liquid accumulation.
3. Ignoring access platform safety for maintenance and calibration work.
4. Assuming all gas sensors behave the same under high dust or corrosive exposure.
5. Failing to align maintenance intervals with actual process load and shift patterns.

Suggested implementation sequence

A structured implementation process helps reduce startup risk and improves long-term emission results. The sequence below is commonly used in instrumentation-oriented projects.

• Step 1: Review process gas conditions, including temperature range, dust load, and moisture behavior.
• Step 2: Confirm flue geometry, access, straight-run distance, and available mounting points.
• Step 3: Select emission sensor, gas sensor, and conditioning components as one integrated system.
• Step 4: Complete commissioning checks for flow, heating, calibration, and signal integration.
• Step 5: Set preventive maintenance intervals, typically 30, 60, or 90 days depending on load.

When this process is followed, plants are more likely to achieve stable measurement performance, faster operator adoption, and lower lifecycle disruption. It also gives quality and safety teams a more defensible basis for internal review and external reporting.

FAQ: Practical Questions Buyers and Users Often Ask

How do I know whether flue equipment is the real cause of unstable emission readings?

Look for patterns rather than isolated alarms. If instability increases during load changes, cold weather, or high-moisture operation, the flue environment may be responsible. Check sample line temperature, condensate presence, filter loading rate, and measurement point location before replacing analyzers. If drift returns within 7 to 14 days after service, installation or process conditions should be reviewed first.

Which industries benefit most from careful stack equipment selection?

The need is strongest in sectors with combustion, thermal treatment, dust generation, or corrosive off-gas. That includes power generation, industrial boilers, metal processing, waste treatment, chemical production, cement-related operations, and high-temperature manufacturing lines. In these environments, emission equipment performance depends heavily on flue design and sampling reliability.

What service interval should buyers expect?

There is no single answer, but many systems fall into three practical ranges: 30-day service intervals for heavy dust or wet corrosive gas, 60-day intervals for medium-duty conditions, and 90-day or longer intervals for cleaner and more stable streams. Buyers should ask suppliers to explain what conditions the proposed interval assumes.

What should procurement teams ask before approving a purchase?

Ask for the expected maintenance scope, recommended spare parts for the first 12 months, installation prerequisites, communication interfaces, commissioning duration, and service response expectations. It is also useful to request clarification on which parts of the emission result depend on stack conditions, because this affects both risk allocation and project planning.

Flue equipment affects emission results by shaping the measurement environment, the reliability of sampling, the stability of sensors, and the practical burden of maintenance. For industrial users, the best outcome comes from treating stack equipment, emission sensor selection, gas sensor compatibility, and process sensor integration as one coordinated instrumentation decision rather than separate purchases.

If you are evaluating emission equipment for a new project, retrofit, or distributor portfolio, a structured technical and commercial review can reduce compliance risk, improve data confidence, and control lifecycle cost. Contact us to discuss your operating conditions, get a tailored solution, or learn more about practical monitoring configurations for your application.
