Unplanned downtime in process equipment can disrupt production, raise costs, and increase compliance risks across modern industry. By improving the reliability of every process sensor, industrial sensor, and gas sensor, companies can protect critical flue equipment, stack equipment, and emission equipment while keeping industrial equipment and gas equipment running efficiently. This guide explains practical ways to reduce downtime and strengthen operational performance.

For operations teams, engineers, quality managers, project leaders, buyers, and executive decision-makers, downtime is rarely caused by a single failure. In most plants, it develops from a chain of small issues: sensor drift, delayed calibration, weak spare-part planning, poor alarm management, or slow maintenance response. In instrumentation-heavy environments, even a 15-minute interruption can affect throughput, batch quality, energy use, and environmental reporting.

A practical downtime reduction strategy must connect technical reliability with purchasing logic and operational discipline. It should help operators keep process equipment stable, help technical evaluators choose suitable instruments, and help financial approvers justify investment through lower maintenance cost, fewer shutdown events, and longer asset life. The sections below focus on methods that are realistic for industrial manufacturing, energy, environmental monitoring, laboratory systems, and automated process lines.

Identify the Real Sources of Process Equipment Downtime

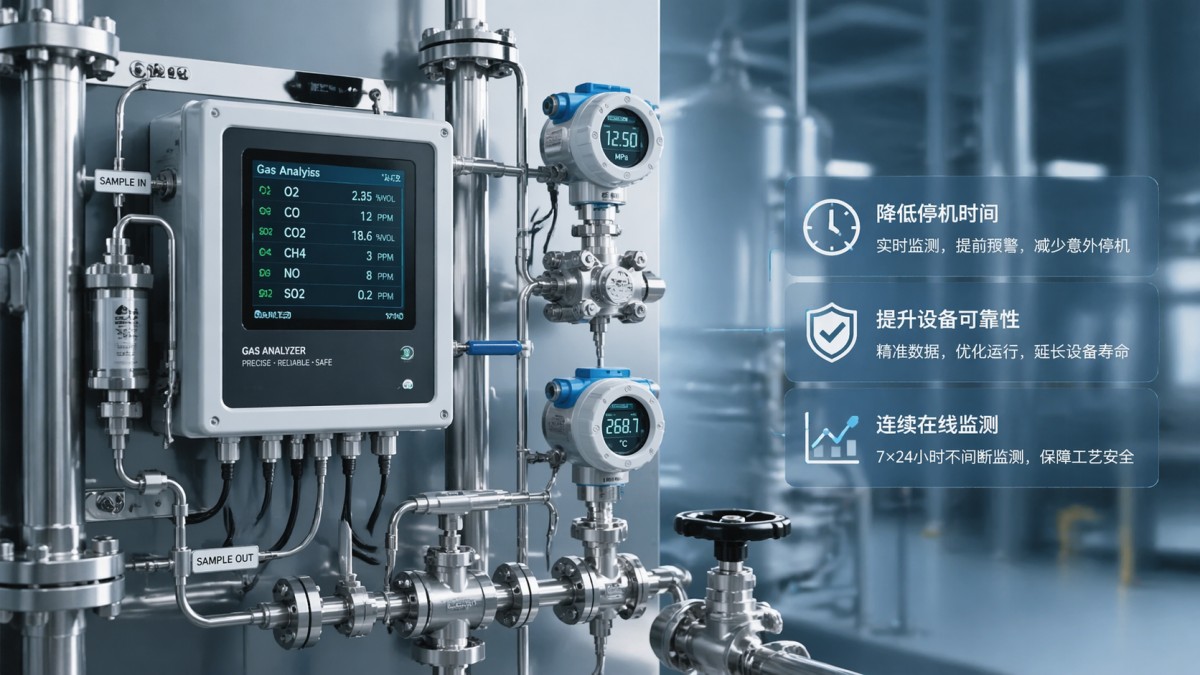

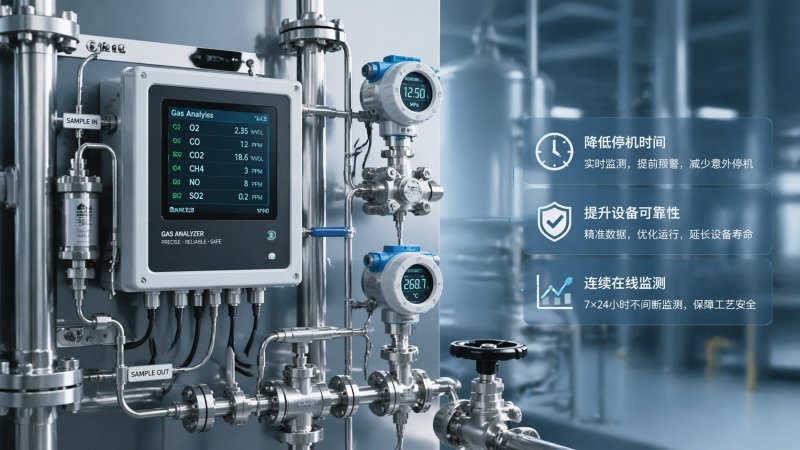

How to Cut Process Equipment Downtime

Before reducing downtime, companies need to classify it correctly. In many facilities, 60% to 80% of stoppages that appear to be “equipment failures” are actually linked to instrumentation issues, utility instability, operator response delays, or control-loop problems. A pump trip may begin with a blocked impulse line. A furnace alarm may come from inaccurate temperature feedback. An emissions alert may result from gas sensor contamination rather than a combustion defect.

This matters across industries because process equipment depends on reliable measurement. Pressure, temperature, flow, level, and gas analysis instruments form the decision layer for automatic control. If the measurement layer becomes unstable by even 1% to 2%, the control layer can overcorrect, increasing wear on valves, blowers, burners, conveyors, and treatment systems. In highly regulated applications, the compliance risk can be as serious as the production loss.

A useful first step is to split downtime into three categories: planned downtime, intermittent downtime, and critical unplanned downtime. Planned events include scheduled calibration or maintenance windows. Intermittent downtime appears as nuisance trips, repeated alarms, or short stops under 10 minutes. Critical downtime involves emergency shutdowns, product loss, safety exposure, or environmental exceedance. This classification helps teams assign the right priority and budget.

Common root causes in instrumentation-driven systems

The most frequent causes are not always major mechanical failures. They often include drift in process sensors, poor cable shielding, moisture ingress in junction boxes, skipped calibration intervals, clogged sampling paths, unstable power supply, and outdated controller logic. In gas equipment and stack equipment, analyzer response delay and sample conditioning problems can create false readings that trigger unnecessary interventions.

The table below summarizes common downtime triggers and their operational effect in process and emission-related systems.

Downtime trigger Typical warning sign Likely business impact
Sensor drift or calibration overdue Offset values, unstable trend line, frequent manual correction Reduced control accuracy, product variability, unnecessary shutdowns
Sampling line blockage in gas or flue monitoring Slow analyzer response, flatline reading, condensate buildup False emission alarms, reporting risk, process interruption
Control loop or communication failure Signal dropouts, delayed actuation, repeated alarm resets Short-cycle stops, manual operation burden, increased wear

The key takeaway is that downtime reduction starts with diagnosis discipline. If teams treat every shutdown as a mechanical event, they will overspend on hardware while leaving the underlying signal, calibration, and control problems untouched. A better approach is to link every event report to measurement quality, control response, and maintenance timing.

  • Track the top 5 recurring stop causes over the last 90 days.
  • Separate nuisance alarms from true trip events.
  • Review whether the failed point was a sensor, actuator, cable, controller, or process condition.
  • Measure mean time to repair and mean time between failures for critical loops.

Build Reliability at the Sensor and Analyzer Level

In process industries, the health of the measurement layer determines the health of the plant. A reliable process sensor can prevent hidden drift, protect rotating and thermal equipment, and improve control stability across 24-hour operations. This is especially important in pressure, temperature, flow, level, and gas detection applications where a small reading error can force an unnecessary shutdown or mask a developing fault.

For many facilities, reducing downtime begins with a sensor criticality ranking. Not all instruments need the same maintenance frequency. A temperature probe on a non-critical utility line may tolerate a 12-month calibration cycle, while a gas sensor used for safety interlock or emission compliance may require checks every 30 to 90 days depending on exposure, contamination risk, and operating duty. Ranking devices by process consequence helps avoid both under-maintenance and wasteful over-maintenance.

Selection factors that influence uptime

Technical evaluators should look beyond nominal measurement range. For uptime improvement, the more important factors are response time, environmental sealing, repeatability, diagnostic capability, material compatibility, and calibration stability. In aggressive or dusty environments, ingress protection, corrosion resistance, and anti-condensation design directly affect failure rates. In stack equipment and flue equipment, sample conditioning, heated lines, and filter maintenance matter as much as analyzer core performance.

The following table provides a practical framework for choosing instrumentation that supports lower downtime in industrial equipment and gas equipment.

Instrument type Recommended uptime-focused criteria Typical maintenance interval
Pressure and flow sensors Stable zero point, vibration resistance, chemical compatibility, local diagnostics 3 to 12 months depending on service severity
Temperature sensors and transmitters Fast response, sheath durability, thermal cycling tolerance, signal integrity 6 to 12 months in stable service, shorter in high-cycle duty
Gas sensors and emission analyzers Cross-sensitivity control, sample conditioning quality, calibration retention, alarm diagnostics 30 to 180 days depending on gas type and exposure

For buyers and project leaders, the practical conclusion is clear: a lower upfront price does not always mean lower total cost. Instruments with weak diagnostics or short field stability often create more service visits, more false alarms, and more process interruptions over a 2- to 5-year lifecycle. A balanced procurement decision should compare purchase cost, maintenance frequency, spare availability, and failure consequence together.

High-value reliability actions

  1. Standardize sensor specifications for the top 10 critical measurement points.
  2. Use calibration history to identify devices drifting more than acceptable tolerance, such as ±0.25% to ±1% depending on application.
  3. Add protective accessories where needed, including filters, enclosures, impulse line heat tracing, or sample conditioning modules.
  4. Keep essential spares for instruments with lead times longer than 2 to 6 weeks.

Strengthen Preventive Maintenance, Calibration, and Spare Parts Planning

A plant cannot cut process equipment downtime with reactive maintenance alone. Waiting for a failure may seem economical in low-risk applications, but it becomes expensive when the failed point affects production continuity, emissions, batch traceability, or safety interlocks. A preventive strategy should combine route-based inspection, calibration planning, spare parts readiness, and clear intervention triggers.

Maintenance managers often make one of two mistakes: they either schedule everything on the same calendar cycle, or they postpone service until alarms become frequent. Both approaches increase cost. Critical instruments should be maintained by risk and duty cycle. For example, a clean dry-air pressure transmitter may remain stable for 12 months, while a level instrument in sticky media or a gas analyzer in corrosive exhaust may need monthly or quarterly attention.

A practical maintenance structure

An effective program usually includes 4 layers: daily visual checks, weekly signal review, monthly functional verification, and scheduled calibration or overhaul. Operators can detect obvious issues such as leaks, condensation, abnormal noise, loose connectors, or display faults. Instrument technicians should then review trend deviations, alarm frequency, and response lag. This layered approach reduces the chance that minor abnormalities become shutdown events.

Spare parts planning is equally important. If the replacement time for a critical transmitter is 24 hours because no spare is available, downtime can exceed the repair time by a factor of 5 or 10. Facilities should define which parts must be stocked on site, which can be sourced within 48 to 72 hours, and which require framework supplier agreements because their delivery cycle exceeds 14 days.

The table below can be used as a starting point for a downtime-focused maintenance matrix.

Maintenance item Suggested frequency Downtime reduction value
Visual inspection of wiring, seals, filters, and sampling lines Daily to weekly Finds early contamination, leaks, looseness, and moisture before signal loss occurs
Functional verification and trend review Weekly to monthly Detects drift, slow response, and nuisance alarms early
Calibration, cleaning, and replacement of wear components 30 days to 12 months based on criticality Reduces sudden trips, compliance deviations, and emergency maintenance cost

This matrix shows that downtime prevention is not only about repair speed. It is about reducing the number of failures that reach production. When maintenance, calibration, and spare stock are aligned, the organization gains shorter recovery time, fewer repeated faults, and more predictable budgeting.

Common planning mistakes to avoid

  • Using the same maintenance interval for low-risk and high-risk instruments.
  • Keeping generic spares that are not compatible with installed process conditions.
  • Skipping calibration records, making drift trends impossible to analyze.
  • Allowing emergency purchases for parts that should be stocked routinely.

Use Data, Alarm Strategy, and Control Logic to Prevent Shutdown Escalation

Many downtime events begin as data quality problems long before equipment stops. A rising number of repeated alarms, longer control response, or increased operator overrides often appears 7 to 30 days before a significant interruption. Plants that review trends proactively can isolate unstable loops, drifting analyzers, or failing actuators before they trigger a trip. This is one of the fastest ways to improve availability without major capital expenditure.

For automation-heavy systems, alarm strategy is critical. If operators receive too many non-priority alerts, genuine problems are missed. If alarm thresholds are set too tightly, nuisance trips increase. If thresholds are set too loosely, the process may run outside quality or compliance limits before anyone acts. The objective is to create 3 clear layers: advisory alarms, action alarms, and shutdown protection. Each layer should have a defined response time and responsible role.

What to monitor in daily operations

Operations teams should review at least 6 performance indicators on critical process lines: alarm count per shift, sensor deviation from expected range, control loop oscillation frequency, manual override rate, analyzer response delay, and maintenance callouts per week. These indicators do not require advanced artificial intelligence to be useful. Even a structured dashboard in the control room can reveal whether reliability is improving or deteriorating.

In gas equipment and emission equipment, additional attention should be given to warm-up time, sampling lag, zero/span check stability, and condensate management. A gas sensor that takes 90 seconds instead of 20 seconds to respond can affect interlock timing or emissions interpretation. In stack systems, unstable flow or temperature compensation can also lead to reporting errors and false alarms.

A 5-step control and alarm improvement process

  1. List the 20 most frequent alarms and identify which ones caused operator action in the last 30 days.
  2. Check whether alarm setpoints match process reality, instrument tolerance, and equipment protection limits.
  3. Review control loops with repeated oscillation, especially those tied to burners, pumps, dosing, or ventilation.
  4. Separate process variation from instrument error by comparing redundant or reference measurements.
  5. Retest updated logic during a controlled production window before full deployment.

For decision-makers, this approach supports a strong return on effort. A modest investment in trend review, alarm rationalization, and loop tuning can reduce short-cycle stops, improve energy efficiency, and cut emergency callouts. In many facilities, these improvements can be implemented over 2 to 8 weeks without replacing major equipment, provided that instrumentation data is already available and maintained with reasonable discipline.

Choose Vendors, Service Models, and Project Execution Methods That Support Uptime

Downtime reduction is not only an engineering matter; it is also a sourcing and project management issue. The best equipment strategy fails if delivery is delayed, documentation is incomplete, commissioning is rushed, or field support is unavailable. For distributors, contractors, and end users, supplier evaluation should include lifecycle support capacity, technical responsiveness, spare-part availability, and after-sales coordination, not just product price.

Business evaluators and financial approvers should assess total cost over a realistic period such as 24 to 60 months. A lower-cost sensor package can become more expensive if it requires frequent recalibration, more technician hours, or longer shutdown exposure when failures occur. Likewise, a vendor with a slightly higher initial offer may reduce downtime risk through pre-delivery testing, commissioning support, and faster parts supply. This is especially relevant for integrated systems involving process sensors, industrial sensor networks, and gas analyzers.

Procurement checkpoints that affect availability

A practical procurement review should cover at least 4 dimensions: technical fit, documentation quality, service response, and supply continuity. Technical fit includes compatibility with process media, temperature, pressure, ambient conditions, communication protocol, and mounting constraints. Documentation quality includes wiring diagrams, maintenance procedures, calibration instructions, and spare lists. Service response should define whether remote support is available within hours and field support within 24 to 72 hours where applicable.

For project managers, the implementation path also matters. Downtime risk rises when installation and commissioning are compressed into a single late-stage window. A more reliable method uses staged execution: specification review, factory verification where relevant, site readiness check, installation, loop test, and monitored startup. Even on fast-track projects, a 5-step execution sequence is usually more effective than trying to solve all issues during startup.

Vendor evaluation checklist

  • Can the supplier support calibration, commissioning, and troubleshooting after delivery?
  • Are recommended spare parts identified for 6-month and 12-month operation?
  • Is the expected lead time 7 days, 30 days, or longer for critical items?
  • Are there clear maintenance manuals and signal integration guidelines for operators and technicians?
  • Can the supplier advise on fit-for-service selection instead of offering only a generic catalog match?

When these questions are answered early, organizations make better decisions across engineering, purchasing, and finance. The result is not only more reliable process equipment, but also smoother project delivery, fewer startup surprises, and stronger lifecycle control over industrial equipment, flue equipment, and emission monitoring systems.

FAQ: Practical Questions About Cutting Downtime

How often should critical instruments be calibrated?

There is no single interval for every application. A practical range is 30 to 90 days for high-risk gas sensing or harsh-service analyzers, 3 to 6 months for moderate-duty process instruments, and up to 12 months for stable utilities or non-critical loops. The right interval depends on process severity, drift history, compliance needs, and whether the measurement is tied to safety or product quality.

Which equipment should receive spare-part priority?

Prioritize components that can stop production, trigger environmental risk, or cause long recovery time. Typical examples include key transmitters in shutdown logic, gas sensors in safety or emission systems, analyzer consumables, control cards, and communication modules. If replacement lead time exceeds 2 weeks and the point is operationally critical, on-site stock is usually justified.

What is the most common mistake plants make when trying to reduce downtime?

A common mistake is focusing only on visible mechanical failures while ignoring measurement quality and alarm behavior. Many repeated shutdowns start with inaccurate sensing, delayed analyzer response, poor maintenance records, or weak control logic. Without reviewing those layers, plants often replace equipment yet keep the same root cause.

How long does a practical uptime improvement program take?

A first-phase program can often be launched within 2 to 4 weeks. This phase usually includes downtime classification, critical instrument ranking, spare review, alarm screening, and maintenance adjustment. A broader improvement cycle involving supplier alignment, procedural changes, and system optimization may take 2 to 3 months depending on plant complexity and shutdown windows.

Who should be involved in the decision process?

The strongest results come from cross-functional input. Operators understand recurring field symptoms. Technicians know calibration and repair realities. Engineers evaluate technical fit. Quality and safety teams assess compliance exposure. Procurement and finance compare lifecycle cost. Project leaders coordinate execution. Bringing these roles together reduces the gap between purchase decisions and real operating conditions.

Cutting process equipment downtime requires more than emergency response. It depends on accurate root-cause analysis, reliable process sensors and gas sensors, disciplined maintenance, stronger alarm strategy, and sourcing decisions that support lifecycle performance. When companies improve these layers together, they protect industrial equipment, flue equipment, stack equipment, and emission equipment while lowering operational risk and improving continuity.

If you are evaluating instrumentation solutions, maintenance planning, or system upgrades for process reliability, now is the right time to review your critical measurement points, service model, and spare strategy. Contact us to discuss your application, get a tailored recommendation, or explore more solutions for reducing downtime across your operation.
