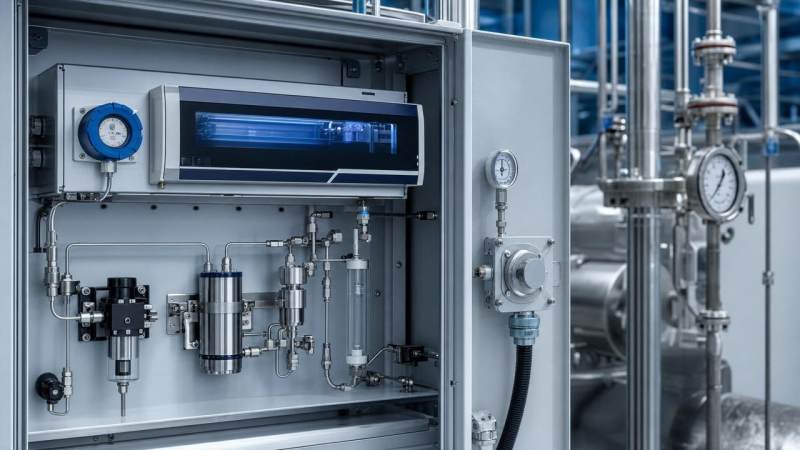

CH4 Concentration Analyzer Selection Mistakes That Raise Operating Risk

Choosing a CH4 concentration analyzer may seem straightforward, but the wrong decision can increase safety hazards, maintenance costs, and project delays.

In instrumentation projects, analyzer selection affects compliance, process stability, digital integration, and lifecycle performance across industrial, energy, environmental, and automation applications.

This guide explains common CH4 concentration analyzer selection mistakes, why they happen, and how to reduce operating risk with practical evaluation criteria.

What does a CH4 concentration analyzer actually need to measure?

A CH4 concentration analyzer measures methane content in gas streams, ambient air, process vents, pipelines, biogas, landfill gas, and combustion-related systems.

The first mistake is assuming methane measurement is only about one number. In reality, the required measurement objective changes analyzer selection.

Some applications need leak detection at low ppm levels. Others need percentage-level methane analysis for process control or energy recovery.

A CH4 concentration analyzer for safety shutdown differs from one used for emissions reporting, gas quality control, or laboratory verification.

Selection should begin with five basic questions:

• What methane range must be measured?
• Is the target unit ppm, %VOL, or LEL-related?
• Is the result used for safety, process control, or reporting?
• What response time is acceptable?
• Will the CH4 concentration analyzer operate continuously or intermittently?

When these definitions stay unclear, even a technically advanced analyzer can become the wrong fit and raise operating risk.

Why is measuring range one of the most common CH4 concentration analyzer mistakes?

Range mismatch is a frequent source of analyzer failure in the field. It causes saturation, poor resolution, unstable alarms, and weak control performance.

A low-range CH4 concentration analyzer may perform well in fugitive emission checks but fail in digesters or gas collection systems.

A high-range unit may survive process gas service but deliver poor sensitivity for early leak identification.

Another mistake is ignoring normal, upset, startup, and shutdown conditions. Methane levels often shift sharply during non-steady operations.

If the analyzer only covers the normal state, it may lose value exactly when risk becomes highest.

A better approach is to define:

• Expected operating range
• Maximum upset concentration
• Required alarm thresholds
• Accuracy at the most important control point

This prevents buying a CH4 concentration analyzer that looks acceptable on paper but becomes unreliable in real operating windows.

How do gas composition and installation conditions affect analyzer reliability?

Many selection errors happen because methane is considered alone, while the actual gas stream contains moisture, CO2, H2S, dust, oxygen, or hydrocarbons.

These components can create cross-sensitivity, sensor poisoning, optical interference, corrosion, or sample line contamination.

A CH4 concentration analyzer installed in landfill gas service faces different risks than one used in a clean natural gas skid.

Temperature and pressure also matter. Analyzer response may drift if process conditions vary beyond the compensated design window.

Installation location creates further differences:

• Indoor control room systems need stable sample conditioning.
• Outdoor cabinets must tolerate heat, cold, vibration, and humidity.
• Hazardous areas may require explosion-proof or intrinsically safe designs.
• Remote sites need low-maintenance architecture and diagnostics.

Ignoring these conditions often causes false readings, high maintenance frequency, and repeated shutdowns for cleaning or recalibration.

The analyzer technology should match the gas matrix and the site environment, not just the methane target.

Which technology and response assumptions create hidden operating risk?

Another common mistake is selecting by brand familiarity or initial cost without comparing sensing principles and maintenance implications.

Different CH4 concentration analyzer technologies include infrared, catalytic, thermal conductivity, laser-based, and gas chromatography-related methods.

Each has strengths and tradeoffs in range, selectivity, drift resistance, response time, and conditioning needs.

For example, a fast response requirement may favor one configuration, while high selectivity in mixed gas may favor another.

Selection mistakes often appear in these assumptions:

1. Assuming all methane analyzers have equal resistance to contamination.
2. Assuming a faster sensor always improves plant safety.
3. Ignoring calibration gas availability and field verification requirements.
4. Overlooking analyzer warm-up time and restart behavior after power loss.

A CH4 concentration analyzer should be evaluated as part of the full measurement loop, including sampling, conditioning, signal transmission, and alarm logic.

Otherwise, the selected technology may look robust while the installed system remains fragile.

How do lifecycle cost and compliance mistakes raise project risk?

A low purchase price can hide a costly ownership profile. This is one of the most damaging CH4 concentration analyzer selection mistakes.

Frequent sensor replacement, calibration labor, spare part delays, and downtime can quickly exceed the initial savings.

Compliance risk adds another layer. Some applications require traceable accuracy, documented calibration, or performance aligned with site standards.

If the CH4 concentration analyzer lacks needed certifications, communication interfaces, or validation procedures, project acceptance may be delayed.

This is especially important in integrated instrumentation environments where analyzers must connect with DCS, PLC, SCADA, or digital maintenance systems.

Before approval, verify these points:

This simple review helps align the CH4 concentration analyzer with safety, uptime, and documentation requirements before installation begins.

What questions should be asked before final CH4 concentration analyzer selection?

A reliable selection process depends on disciplined questioning, not assumptions. The best results come from matching operating reality with analyzer capability.

Use the checklist below as a final decision screen.

Practical preselection checklist

• What is the exact methane range, including upset conditions?
• What interfering gases or contaminants are present?
• Does the CH4 concentration analyzer need hazardous area approval?
• What calibration interval is realistic for the site?
• How will the analyzer connect with existing control systems?
• What maintenance skills and spare parts are locally available?
• Is response time suitable for the intended protection or control logic?
• Can the supplier support commissioning, training, and diagnostics?

Quick FAQ summary

The right CH4 concentration analyzer reduces uncertainty, supports safer operation, and improves long-term instrumentation performance across complex facilities.

The wrong one can create false confidence, unstable data, repeated maintenance, and avoidable operating risk.

Start with application definition, confirm gas and site conditions, compare technologies carefully, and review lifecycle support before final selection.

A structured evaluation now will save troubleshooting time, reduce compliance friction, and help the CH4 concentration analyzer deliver dependable field results.
