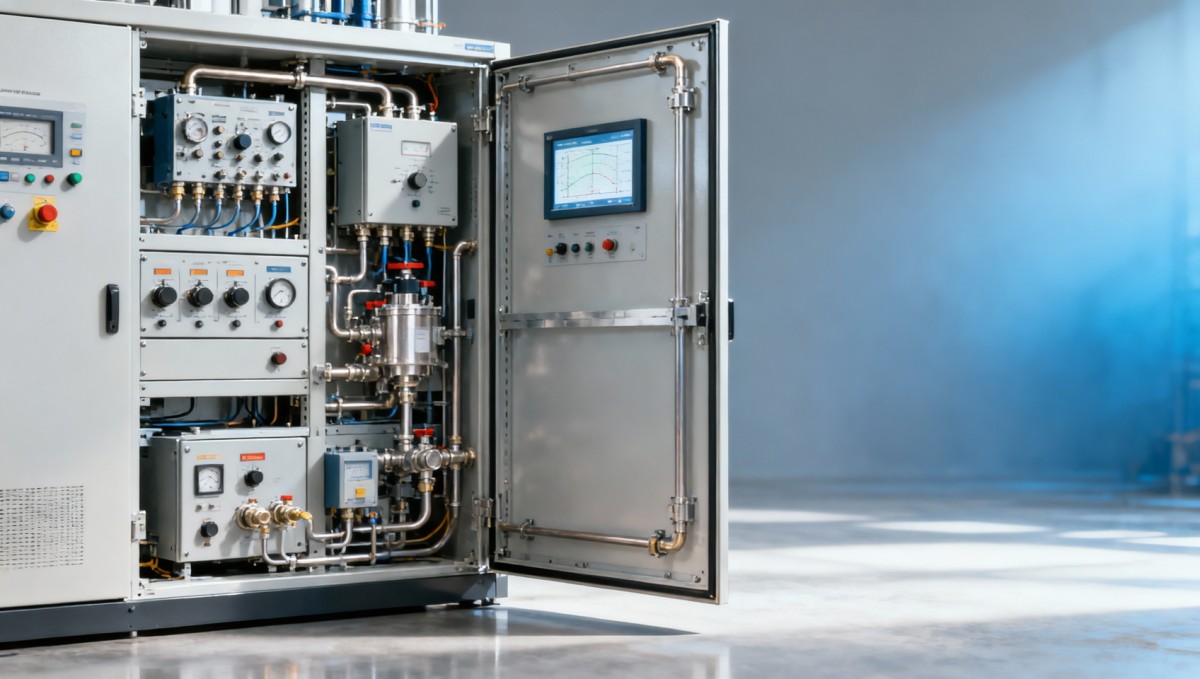

Gas analyzer cabinet layout has a bigger impact on uptime, service speed, and long-term cost than many teams expect. For users evaluating an industrial gas analyzer, SR-EX analyzer, SR-2000 infrared analyzer, or a complete process analysis system, cabinet design directly affects safety, calibration access, and maintenance efficiency. From analysis shelter planning to multi component analyzer integration, smart layout decisions reduce risk and improve operational reliability.

Why does gas analyzer cabinet layout influence maintenance so much?

In instrumentation projects, teams often focus first on analyzer accuracy, detection range, sample conditioning, and communication protocols. Those factors matter, but cabinet layout quietly determines whether technicians can perform a 15-minute inspection or face a 2-hour shutdown window. In industrial manufacturing, energy and power, environmental monitoring, and process automation, the cabinet is not only an enclosure. It is the working interface between the analyzer system and daily operations.

For operators, a poor gas analyzer cabinet layout means valves are hidden, filters are difficult to replace, and purge or calibration points are placed too close to hot surfaces or live terminals. For technical evaluators, layout affects signal routing, thermal management, vibration isolation, and future expansion. For procurement and finance teams, it changes maintenance labor hours, spare parts access, and the total cost of ownership over 3–5 years.

In many analyzer cabinet projects, maintenance problems do not come from the analyzer core itself. They come from practical issues such as narrow door opening angles, tubing crossing electrical areas, low-mounted drains, congested manifolds, or no reserved service space for calibration gas cylinders and test tools. A cabinet that looks compact on a drawing can become expensive when each routine service requires two people, additional permits, or partial disassembly.

This is especially important in the broader instrumentation industry, where systems support modernization, digital transformation, and intelligent upgrading. A process analysis system is expected to deliver continuous data, stable alarms, and predictable maintenance cycles. If cabinet design blocks serviceability, even a high-grade industrial gas analyzer or infrared analyzer can underperform in real field conditions.

The maintenance factors that layout directly changes

• Access time: Technicians should reach routine service points such as filters, pumps, drains, regulators, and calibration ports without removing unrelated assemblies.
• Safety separation: Electrical wiring, sample gas lines, and hot components should be arranged in clearly separated zones to reduce error during inspection.
• Calibration efficiency: A cabinet that supports zero and span checks in 20–40 minutes can significantly reduce production interruption compared with layouts that require panel removal.
• Expansion capacity: Many sites add 1–2 extra channels, communication modules, or pretreatment units within the first project cycle, so reserved space matters.

When layout decisions are made early, they reduce service risks for users and create a more predictable approval path for project managers and commercial reviewers. This is why cabinet design should be evaluated alongside analyzer technology, not after the equipment list is frozen.

Which cabinet design choices improve uptime in real industrial applications?

A good gas analyzer cabinet layout is not defined by appearance. It is defined by how quickly the system can be inspected, calibrated, repaired, and returned to service. In continuous processes, even one avoidable delay per month can create extra labor, delayed reporting, or unstable process control. For applications such as flue gas monitoring, fuel gas analysis, process stream composition analysis, and emissions compliance, uptime depends on serviceable design.

The first design choice is zoning. Most analyzer cabinets work better when they are divided into at least 3 functional areas: sample pretreatment, analyzer module area, and electrical or control area. This reduces tubing complexity, lowers the chance of contamination near electronics, and helps maintenance teams isolate problems faster. In analysis shelter planning, the same principle applies at a larger scale, often with 600–900 mm service aisles considered practical for front access.

The second choice is maintenance reach. Components requiring monthly or quarterly service should sit in the front access plane, while low-touch parts can be placed deeper. Filters, pumps, condensate drains, regulators, and test ports should not be blocked by structural members or tightly packed cable trays. In a multi component analyzer system, the service path should allow one technician to complete routine work with standard tools and minimal isolation steps.

The third choice is thermal and environmental control. Cabinet heaters, ventilation devices, insulation, and purge arrangements need to support the local site condition. Typical ambient design reviews consider ranges such as -20°C to 45°C, or wider where required by project conditions. If heat-generating power supplies are mounted beside temperature-sensitive measurement components, drift, condensation, or premature component wear may follow.

Typical layout priorities for different stakeholders

The table below summarizes how cabinet design decisions map to the concerns of operators, engineering reviewers, procurement teams, and safety or quality managers. This helps align technical and commercial evaluation before purchase approval.

This comparison shows why layout should be part of the selection discussion from the beginning. A process analysis system that satisfies all four groups usually performs better over the full asset life than a cheaper cabinet built only around compactness.

A practical checklist before freezing the layout

1. Confirm the service frequency of each component: daily, monthly, quarterly, or annual.
2. Reserve front access for high-touch components and side or rear zones for low-touch assemblies.
3. Keep sample tubing routes short and traceable to reduce dead volume and troubleshooting time.
4. Leave space for at least one future accessory, such as a communication unit, extra filter, or validation module.

For industrial gas analyzer systems, these checks are simple but valuable. They help prevent expensive rework after factory acceptance testing or site commissioning.

What should buyers compare when selecting an analyzer cabinet or analysis shelter?

Selection should move beyond analyzer model alone. Whether the project includes an SR-EX analyzer, an SR-2000 infrared analyzer, or another industrial gas analyzer, buyers should compare serviceability, environmental suitability, compliance readiness, and integration method. This matters even more when the supply scope includes an analyzer cabinet, sample conditioning system, shelter, or skidded process analysis system.

A useful approach is to review 5 core dimensions: cabinet structure, gas path design, electrical arrangement, calibration workflow, and expansion capability. This lets project managers and procurement teams compare options consistently across suppliers. It also gives finance approvers a clearer basis for balancing initial capital cost against labor and downtime exposure over the next 2–5 years.

Another key point is matching the enclosure concept to the application. A standalone cabinet may suit a compact indoor installation, while an analysis shelter may be preferable for larger systems requiring temperature control, operator access, and multiple analyzer technologies. Environmental monitoring applications, utility plants, chemical processes, and industrial automation lines each place different demands on ingress protection, internal spacing, and service workflow.

Buyers should also ask whether the layout supports site realities. Is calibration performed every month or every quarter? Is there only front access, or are both sides available? Will one technician handle maintenance, or is a two-person team standard under the plant permit system? These questions quickly expose whether a compact proposal is truly practical.

Selection matrix for analyzer cabinet procurement

The following table can be used during technical clarification or supplier comparison. It is especially useful for procurement personnel, project engineers, and distributors who need a structured evaluation tool.

Using a selection matrix like this helps decision-makers compare value rather than only price. In many cases, the best analyzer cabinet is the one that saves repeated service time and reduces operational friction across the entire maintenance cycle.

Common procurement mistakes

• Approving a layout only from a front-view drawing without reviewing door opening, internal clearances, and maintenance path.
• Ignoring the space needed for calibration gas handling, especially where monthly validation is required.
• Assuming a smaller cabinet always lowers total cost, even when service time increases over the life of the system.
• Treating shelter layout and cabinet layout as separate issues, although they directly affect each other in actual plant operation.

For distributors and project integrators, avoiding these mistakes can improve bid quality and reduce clarification cycles before order release.

How do standards, implementation steps, and service planning reduce risk?

Analyzer cabinet layout must support not only convenience but also safety and compliance. The exact requirements depend on the project, yet most industrial gas analyzer installations are reviewed against general electrical safety practices, enclosure protection expectations, hazardous area considerations where applicable, and plant-specific maintenance procedures. Clear labeling, isolation access, vent or drain routing, and documentation structure all improve audit readiness.

Implementation works best when layout review is treated as a staged engineering task rather than a late fabrication detail. A practical workflow often includes 4 steps: requirement capture, layout review, fabrication and factory check, then site commissioning and maintenance validation. In fast-track projects, some steps overlap, but skipping the maintenance validation stage often leads to service problems within the first 6–12 months.

For project managers, this staged method helps coordinate instrumentation, piping, electrical, and operations teams. For quality and safety personnel, it offers traceable checkpoints. For finance reviewers, it lowers the risk of post-installation rework. For dealers and agents, it provides a clearer framework for communicating customer expectations before the design is locked.

Documentation should include service point identification, flow logic, isolation instructions, calibration sequence, and recommended preventive maintenance frequency. Even a well-designed analyzer cabinet becomes hard to maintain if the manual does not align with the actual internal arrangement. Clear engineering documentation is therefore part of layout quality, not a separate afterthought.

A practical implementation flow for analyzer cabinet projects

1. Define process and maintenance needs: sample type, ambient condition, service frequency, hazardous area status, and communication interface.
2. Review cabinet and shelter layout: service access, routing logic, analyzer position, drain and vent direction, and spare capacity.
3. Validate before shipment: check labeling, internal accessibility, calibration workflow, and match between drawings and actual build.
4. Confirm on site: test operation, operator reach, maintenance simulation, and handover documents for routine inspection cycles.

When these 4 steps are followed, the cabinet supports both analyzer performance and maintainability. That is especially valuable in the instrumentation industry, where stable measurement, testing, monitoring, and control systems are essential to plant modernization and digital operations.

Risk signals that should trigger redesign before purchase

• Routine service points are located behind major analyzer assemblies or power devices.
• No clear separation exists between gas conditioning components and electrical terminals.
• There is no practical allowance for condensate handling, tubing replacement, or future communication upgrades.
• The supplier cannot explain a maintenance workflow in under 5–7 steps for monthly service tasks.

These signals do not always mean the analyzer technology is weak. More often, they mean the cabinet design has not been sufficiently aligned with field maintenance realities.

FAQ: what do buyers and users usually ask about gas analyzer cabinet layout?

How much service space should be reserved around an analyzer cabinet?

There is no single universal dimension, because cabinet size, door swing, and site restrictions vary. However, in many industrial projects, teams aim for sufficient front clearance to fully open doors and allow tool use, plus side or rear access if components are not fully front-serviceable. In shelters, service aisles of roughly 600–900 mm are often easier to work with than tighter layouts, especially for quarterly maintenance and calibration gas handling.

Is a compact cabinet always the better option?

Not necessarily. A compact analyzer cabinet may reduce installation footprint, but if it increases service time by 30–60 minutes per intervention, total operating cost can rise over time. Compact designs work best when service points are still accessible, tubing routes remain logical, and thermal separation is preserved. Buyers should compare usable maintenance space, not only outer dimensions.

What is the difference between cabinet layout and analysis shelter planning?

Cabinet layout focuses on the internal arrangement of analyzers, valves, tubing, electronics, and service points. Analysis shelter planning covers the larger environment around those cabinets, including aisle space, climate control, operator access, utility routing, and safety workflow. In multi component analyzer projects, both levels must be designed together. A well-organized cabinet can still be difficult to maintain if the shelter does not support safe and convenient access.

What should be reviewed before approving a gas analyzer cabinet drawing?

At minimum, review 5 items: service access, gas and electrical separation, calibration workflow, environmental control, and reserved expansion capacity. It is also wise to ask for a maintenance sequence explanation, not just a drawing package. If the supplier can show how monthly checks, quarterly calibration, and common parts replacement are performed step by step, the design is usually more mature.

How long does a typical analyzer cabinet project take?

Lead time depends on scope, configuration, and documentation approval speed. For standard cabinet-based systems, engineering and production may take several weeks, while customized analysis shelter projects often require longer due to structural, electrical, and environmental integration. The more clearly layout, compliance needs, and service expectations are defined at the start, the less risk there is of delay during fabrication or site acceptance.

Why choose us for analyzer cabinet planning, selection, and project discussion?

In the instrumentation industry, reliable measurement depends on more than a sensor or analyzer model. It depends on how the full system is engineered for use, maintenance, and long-term operation. That is why our support focuses on the complete picture: industrial gas analyzer selection, analyzer cabinet layout, analysis shelter planning, multi component analyzer integration, and practical service workflow for real industrial sites.

If you are comparing an SR-EX analyzer, an SR-2000 infrared analyzer, or a broader process analysis system, we can help you review key decisions before they become costly changes. This includes confirming parameter requirements, checking layout feasibility, discussing delivery scope, and aligning cabinet design with your plant maintenance routine, environmental condition, and budget expectations.

For technical teams, we can discuss analyzer configuration, sample conditioning logic, internal zoning, and access for calibration or replacement parts. For procurement and commercial reviewers, we can help structure comparison points around total cost, delivery cycle, service complexity, and future expansion. For quality and safety personnel, we can review practical items such as isolation access, labeling, drain and vent arrangement, and maintainability risks.

Contact us if you need support with 4 common decision areas: parameter confirmation, product selection, delivery schedule planning, and customized cabinet or shelter solutions. You can also consult us about compliance-related considerations, spare parts planning, integration with existing instrumentation systems, sample support questions, or quotation communication for upcoming projects. A well-planned gas analyzer cabinet layout saves time long after the purchase order is issued.
