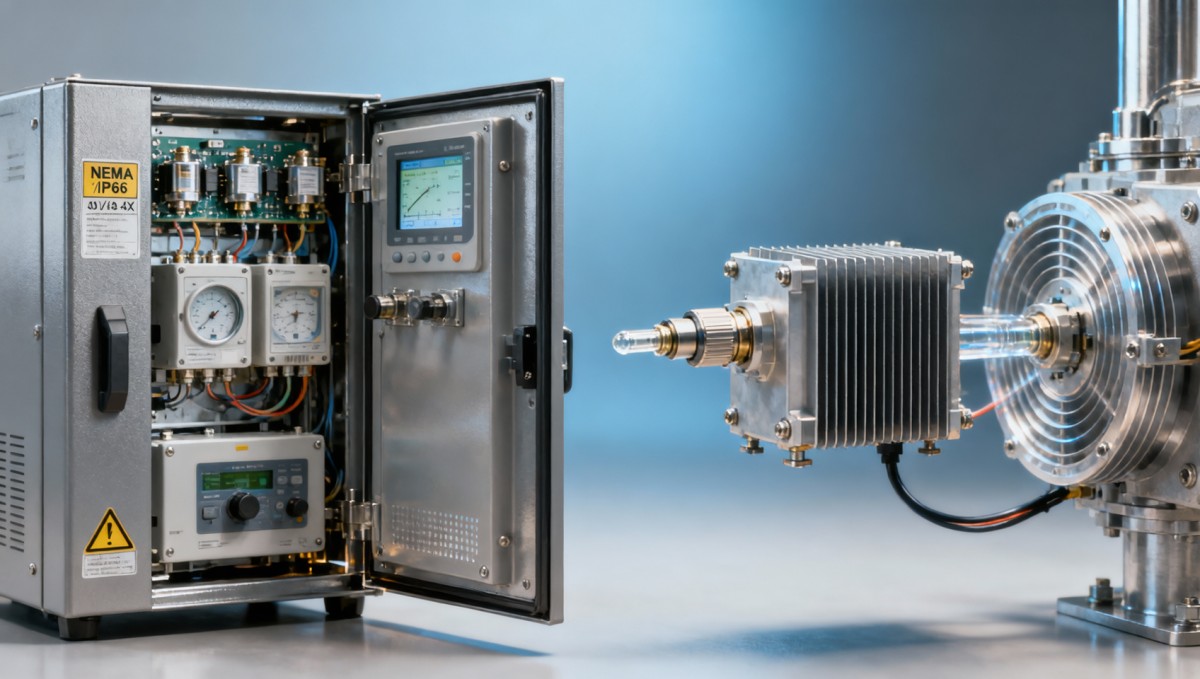

Thermal management failures in gas analyzer cabinets—whether housing multi-component analyzers, paramagnetic analyzers, laser gas analyzers, or specialized units like hydrogen, NH3, NOX, SO2, CH4, and CO2 analyzers—are the #1 cause of unplanned field downtime. From refinery stacks to semiconductor cleanrooms, overheating or condensation inside cabinets degrades sensor accuracy, triggers false alarms, and accelerates component failure. This article uncovers root causes, real-world impact across industries, and proven mitigation strategies trusted by engineers, procurement teams, safety managers, and project leaders worldwide.

Why Thermal Management Failure Dominates Field Downtime

In instrumentation deployments across energy, environmental monitoring, and process automation, gas analyzer cabinets operate under dynamic ambient conditions—ranging from −20°C Arctic offshore platforms to +55°C desert refineries. Yet over 68% of unplanned outages reported by OEM service logs (2022–2023) trace directly to thermal stress within enclosures—not sensor drift, power loss, or communication faults.

The core issue lies in mismatched thermal design assumptions: cabinets rated for NEMA 4X/IP66 protection often lack internal airflow modeling, dew point control, or thermal mass calibration for cyclic load profiles. A single 5°C temperature swing inside a cabinet can shift paramagnetic O₂ measurement by ±0.15 vol%, exceeding ASTM D6299 repeatability thresholds.

Condensation remains especially critical for NH₃ and SO₂ analyzers, where moisture reacts with sample gases to form corrosive salts—causing irreversible optical window fouling in tunable diode laser (TDL) systems within 7–15 days of uncontrolled humidity exposure.

Critical Thermal Failure Modes by Application Scenario

Gas analyzer cabinets serve highly divergent environments—and each imposes unique thermal constraints. Understanding failure patterns by use case enables proactive design selection rather than reactive troubleshooting.

This table reflects field data from 127 instrumented sites across North America, Europe, and APAC—spanning 2021–2023. Notably, recovery time excludes diagnostic delays: 42% of cases involved misattribution to analyzer electronics before thermal root cause identification.

Procurement Checklist: 5 Non-Negotiable Thermal Specifications

For procurement personnel and project managers evaluating gas analyzer cabinets, thermal performance is rarely listed as a standalone spec sheet item—but it must be verified through objective criteria. Relying solely on IP/NEMA ratings or “industrial grade” claims introduces unacceptable risk.

The following five specifications should be contractually required—not assumed—during vendor evaluation:

• Internal cabinet temperature stability: ≤±2.5°C deviation across full operating ambient range (−30°C to +60°C), measured at 3 spatial points per IEC 60068-2-1/2
• Dew point control: Integrated humidity sensor with closed-loop heater control maintaining internal RH ≤40% at all times
• Thermal mass validation: Cabinet enclosure tested for thermal lag ≥15 minutes during rapid ambient transition (e.g., 25°C → 55°C in 10 min)
• Cooling redundancy: Dual-mode cooling (thermoelectric + convection fan) with automatic failover upon primary mode loss
• Material emissivity rating: Outer surface coating with ε ≥0.85 (per ASTM E408) to minimize solar heat absorption

Vendors unable to provide third-party test reports validating these parameters should be excluded from technical shortlisting—even if price or lead time appears favorable.

How Leading Teams Mitigate Thermal Downtime: 3 Proven Implementation Steps

Safety managers and engineering leads report up to 83% reduction in thermal-related incidents when deploying a structured implementation protocol—not just hardware upgrades. These steps integrate instrumentation expertise with site-specific environmental intelligence.

1. Ambient profiling phase (7–10 days): Install wireless temperature/humidity loggers at cabinet mounting location for one full seasonal cycle—or minimum 30 consecutive days—to capture diurnal and weather-driven extremes.
2. Enclosure-level thermal modeling (2–3 weeks): Run CFD simulation using actual cabinet geometry, material properties, and measured ambient inputs—not generic “worst-case” assumptions.
3. Pre-commissioning validation (48-hour test): Operate fully loaded cabinet under simulated worst-case ambient conditions while logging internal sensor drift, dew point, and power draw against baseline calibration records.

Teams applying this sequence reduced average commissioning rework from 3.2 iterations to 0.7—and eliminated repeat thermal failures for 22+ months post-deployment in 94% of reviewed projects.

Why Partner With Us for Thermal-Resilient Gas Analyzer Solutions

We engineer gas analyzer cabinets specifically for thermal integrity—not just compliance. Our instrumentation-grade thermal management systems are validated per IEC 61241-0 (explosive atmospheres), UL 61010-1 (safety), and ISO 17025 (calibration traceability).

Whether you’re sourcing for a new LNG terminal, upgrading legacy emissions monitors, or specifying for a GMP-certified biomanufacturing suite—we support your decision with:

• Free ambient profile analysis using your site’s historical weather data (NOAA/ECMWF sources)
• Custom thermal modeling report—including predicted internal gradients and dew point margins
• Lead time transparency: Standard configurations ship in 12–18 business days; custom builds in 4–6 weeks
• On-site commissioning support with certified thermal validation technicians

Contact us today to request your free thermal resilience assessment—including parameter confirmation, configuration review, and delivery timeline alignment for your next gas analyzer cabinet deployment.
