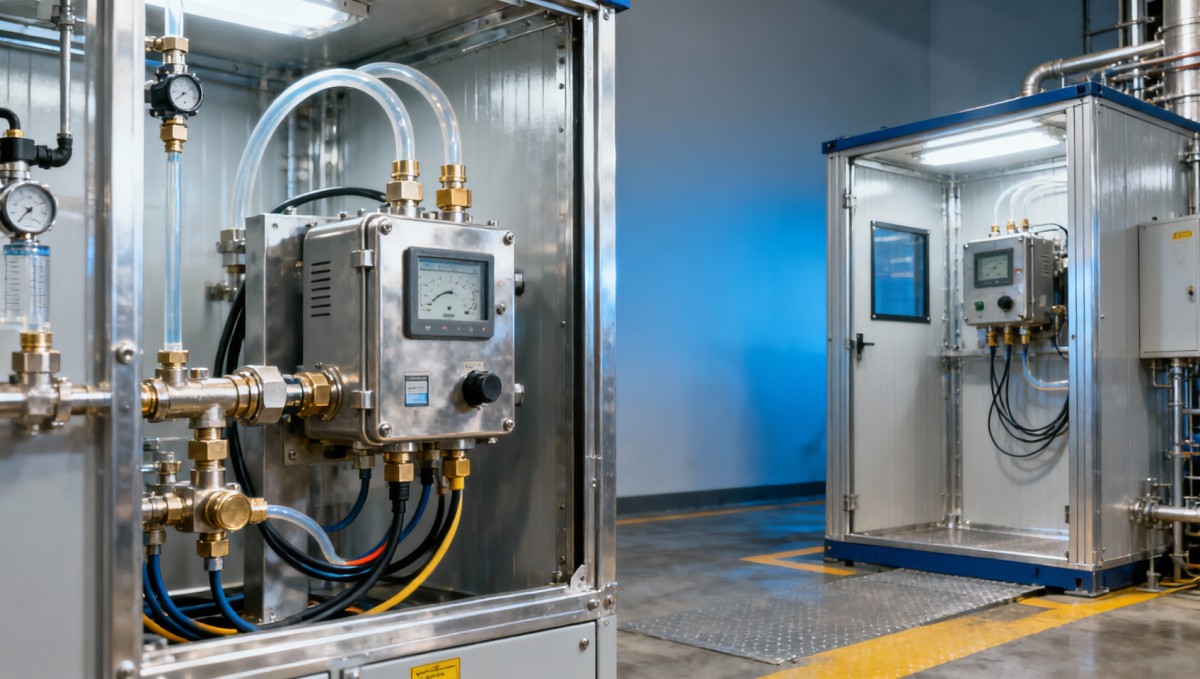

Many hazardous area analyzer failures are traced back not to the instrument itself, but to poor installation decisions. Whether you use an ATEX gas analyzer, explosion proof analyzer, or continuous gas analyzer in demanding applications, correct mounting, wiring, and calibration directly affect safety, accuracy, and uptime. This article explains how installation errors impact analyzer performance and what teams should verify before startup.
For instrumentation buyers, operators, project engineers, safety managers, and technical evaluators, installation is not a minor commissioning detail. In hazardous areas, a wrong cable gland, an undersized sample line, or poor analyzer shelter ventilation can turn a reliable analyzer package into a recurring maintenance burden within the first 30 to 90 days of operation.
That is why installation quality matters across the full B2B decision chain. It influences compliance, startup schedules, spare parts consumption, analyzer accuracy, and even total cost of ownership over 3 to 5 years. A well-installed hazardous area analyzer typically delivers more stable readings, fewer nuisance alarms, and lower unplanned shutdown risk.

Hazardous area analyzers operate in environments where flammable gas, dust, humidity, vibration, heat, and corrosive compounds are common. In these conditions, installation quality is often the difference between a 12-month trouble-free period and repeated service interventions every 4 to 8 weeks. The analyzer itself may be correctly specified, yet the surrounding installation can still create failure modes.
A frequent problem is the mismatch between certification intent and field execution. An explosion proof analyzer enclosure may be approved for the area classification, but if cable entries, conduit seals, grounding, and purge arrangements are not installed exactly as required, the protection concept is weakened. This affects both safety and performance, especially where ambient temperatures swing from 5°C to 45°C.
Another failure trigger comes from the sampling system rather than the analyzer electronics. A continuous gas analyzer depends on stable sample transport, pressure control, filtration, and moisture management. If sample lines are too long, routed with low points, or exposed to solar heat, condensation or delayed response can distort readings by several percentage points, even when the sensing element is healthy.
Mechanical installation also matters more than many teams expect. Mounting an analyzer on a vibrating steel structure, placing it too close to process heat, or restricting access for routine maintenance increases wear and delays corrective action. In practical terms, a maintenance task that should take 20 minutes can take 2 hours if access clearance, isolation valves, and service loops were not considered during installation.
The table below summarizes how specific installation mistakes translate into real operating consequences for hazardous area analyzer systems in industrial plants, energy facilities, environmental monitoring stations, and process automation projects.
The key pattern is clear: early analyzer failure is rarely caused by one dramatic mistake. More often, it is the accumulation of 4 or 5 small installation shortcuts that gradually affect accuracy, reliability, and maintainability.
Before startup, teams should treat analyzer installation verification as a formal quality gate rather than an informal walkthrough. A structured pre-energization checklist can prevent many commissioning delays. In most projects, this review should cover at least 6 areas: mechanical mounting, hazardous area compliance, electrical wiring, sample handling, calibration setup, and environmental suitability.
Mechanical checks start with location and access. The analyzer should be mounted on a stable support with enough service clearance for opening doors, replacing filters, checking terminals, and connecting calibration gas. A practical target is 600 to 800 mm of front access space and clear routing for tubing and cable entry without sharp bends.
Electrical checks should confirm power supply stability, terminal tightening, cable segregation, and barrier compatibility. For low-level measurement signals, routing instrumentation cable alongside motor power cable is a common and avoidable error. Keeping separation and proper shielding helps protect signal integrity, especially in plants with variable frequency drives and switching loads.
Sample system checks are equally important. The sample path should be leak-tested, pressure-verified, and examined for dead legs, condensation traps, and filter accessibility. In many analyzer systems, maintaining a short and controlled sample route reduces response delay and improves repeatability more effectively than changing the sensor technology itself.
Documentation is often undervalued, but it directly supports maintenance, audits, and warranty discussions. At minimum, teams should retain wiring verification records, leak test results, calibration settings, loop checks, and startup observations. Capturing these records within the first 24 to 48 hours creates a baseline that makes later troubleshooting far faster.
For enterprises managing multiple sites, standardized installation records also help procurement and technical leadership compare recurring issues across projects. If the same failure appears in 3 installations, the root cause may lie in installation practice, not supplier quality.
Analyzer performance in hazardous areas depends on more than detector capability. Mounting position influences vibration exposure, ambient heat load, and maintenance access. Wiring quality influences signal stability and communication reliability. Calibration setup determines whether the analyzer starts with a trustworthy baseline or enters service already drifting outside acceptable tolerance.
Mounting errors are often underestimated in project execution. Installing an analyzer beside hot process piping, in direct weather exposure, or near washdown zones can increase enclosure temperature and accelerate corrosion. Even a 10°C rise above expected ambient conditions can shorten component life and shift calibration intervals, especially for systems with pumps, electronics, or sample conditioning components.
Wiring faults create a different class of failure. Loose terminals, mixed grounding practices, and poor shielding may not stop startup, but they can produce intermittent behavior that is expensive to diagnose. A plant may lose several technician shifts tracing a communication dropout that is ultimately caused by one incorrectly terminated shield or a missing earth bond.
Calibration problems frequently originate in installation details. If calibration gas reaches the analyzer at the wrong pressure, through contaminated tubing, or via a line with leaks, the instrument may pass a basic check but still report biased process values. For a continuous gas analyzer used in process safety or emissions monitoring, that bias can distort compliance reporting or control decisions.
The following comparison helps technical teams evaluate which installation factors deserve the most attention during design review, site acceptance, and maintenance planning.
For procurement and management teams, these factors are also cost drivers. A lower purchase price may be offset quickly if poor installation increases labor hours, spare filter use, or site visits by 20% to 30% during the first year.
The best way to prevent hazardous area analyzer failures is to address installation risk before equipment reaches the site. This starts during specification and bid evaluation. Buyers should assess not only analyzer performance, but also the practicality of installation, service access, calibration logistics, and compatibility with existing instrumentation standards.
For project managers and engineering leaders, one useful approach is to evaluate solutions across 4 dimensions: hazardous area suitability, sample system design, maintainability, and commissioning support. A technically advanced analyzer can still be the wrong choice if it requires installation conditions the site cannot consistently provide.
Distributor and integrator channels should also pay attention to project timing. In many industrial projects, analyzer package delivery may fit within 4 to 8 weeks, but site readiness, cable tray completion, gas cylinder arrangement, and shelter utilities often lag behind. Misalignment between delivery and installation readiness creates rushed field decisions, which is where avoidable errors appear.
A better project plan includes design review, FAT or pre-delivery verification where practical, receiving inspection, installation checklist approval, cold commissioning, and final startup validation. Even in smaller projects, this sequence improves quality compared with ad hoc installation under schedule pressure.
Finance approvers often focus on initial purchase cost, while operations teams focus on reliability. The most effective decisions balance both. If a better analyzer package reduces two emergency callouts per year, shortens startup by several days, or extends maintenance intervals from monthly to quarterly, the total value can justify a higher capital cost.
That is especially relevant in sectors such as power generation, environmental compliance, industrial processing, laboratory-linked production, and automated manufacturing, where analyzer downtime can interrupt reporting, safety response, or control loop stability.
Even experienced teams can repeat common mistakes when installation pressure is high. Typical examples include reusing unsuitable fittings, skipping leak checks because the analyzer powers on normally, treating calibration gas lines as temporary, or locating the analyzer where routine service requires scaffolding or process interruption. These choices save hours during installation but may cost days later.
Another mistake is assuming all hazardous area analyzers should be installed in the same way. In reality, an ATEX gas analyzer, an explosion proof analyzer, and a continuous gas analyzer may share some principles but differ significantly in sample handling, purge requirements, electrical interfaces, and service workflow. Installation guidance should always follow the approved project documents and the supplier’s instructions.
Quality and safety managers should also ensure that startup acceptance does not stop at a successful power-on. Acceptance should include stable operation over a defined observation period, often 8 to 24 hours, with checks for drift, alarm function, communication integrity, and process response.
Below are frequently asked questions that reflect real search and purchasing intent from operators, engineers, and decision-makers evaluating hazardous area analyzer installations.
For a straightforward installation, basic validation may be completed in 1 day, but a more reliable practice is to allow 2 to 3 stages: installation verification, calibration and loop checks, then monitored operation. Complex analyzer systems with sample conditioning or shelter integration may need 2 to 5 days depending on utilities, safety permits, and site readiness.
The most overlooked items are usually cable entry sealing, sample line slope, condensation control, access clearance, and grounding continuity. None of these looks dramatic during installation, but together they account for a large share of early instability complaints.
A detailed checklist is especially valuable when the analyzer is tied to safety functions, compliance monitoring, remote unmanned stations, or high-cost process interruptions. It is also important when multiple contractors handle mechanical, electrical, and instrumentation scopes separately, because handoff gaps are common in those projects.
They should provide clear installation drawings, terminal details, sample system guidance, and startup records. A short pre-install review with the customer often prevents field rework. In many cases, 60 minutes of review before installation saves several site visits later.
Hazardous area analyzer reliability begins long before normal operation. Correct mounting, protected wiring, proper sample handling, and disciplined calibration setup reduce failure risk, improve measurement confidence, and support safer plant performance. Whether you are selecting a new analyzer package, reviewing an installation plan, or troubleshooting repeated faults, a structured installation approach delivers measurable value in uptime and lifecycle cost.
If your team is evaluating an ATEX gas analyzer, explosion proof analyzer, or continuous gas analyzer for industrial, energy, environmental, laboratory, or automation applications, now is the right time to review installation requirements in detail. Contact us to discuss your project conditions, request a tailored solution, or get support with analyzer selection, installation planning, and startup verification.
