A shelter analyzer makes sense when harsh environments, compliance demands, and continuous operation require more than a standalone industrial analyzer can provide. For facilities relying on a process gas analyzer, combustion analyzer, or gas concentration analyzer, an analyzer shelter improves oxygen measurement accuracy, protects monitoring analyzer and emission analyzer systems, and supports stable performance for a Multi Component Gas Analyzer in critical applications.

In instrumentation-driven industries, the decision is rarely about adding a cabinet for appearance or convenience. It is about whether the analyzer system can maintain repeatable measurements through heat, dust, vibration, moisture, corrosive exposure, and fluctuating utility conditions. For operators, that means fewer false alarms and less emergency intervention. For procurement and finance teams, it means evaluating lifecycle cost rather than only purchase price.

Shelter-based analyzer systems are common in industrial manufacturing, power generation, environmental monitoring, petrochemical processing, waste treatment, laboratories connected to field sampling, and automation-intensive plants. In these settings, a process gas analyzer may need to run 24/7, maintain stable sample conditioning, and meet inspection requirements over 3 to 10 years of service life.

This article explains when a shelter analyzer is justified, who benefits most, what technical and commercial factors should be reviewed, and how to avoid expensive under-specification. The goal is to support users, project managers, quality and safety teams, maintenance engineers, and decision-makers who need a practical framework rather than a generic product pitch.

What a Shelter Analyzer Actually Solves

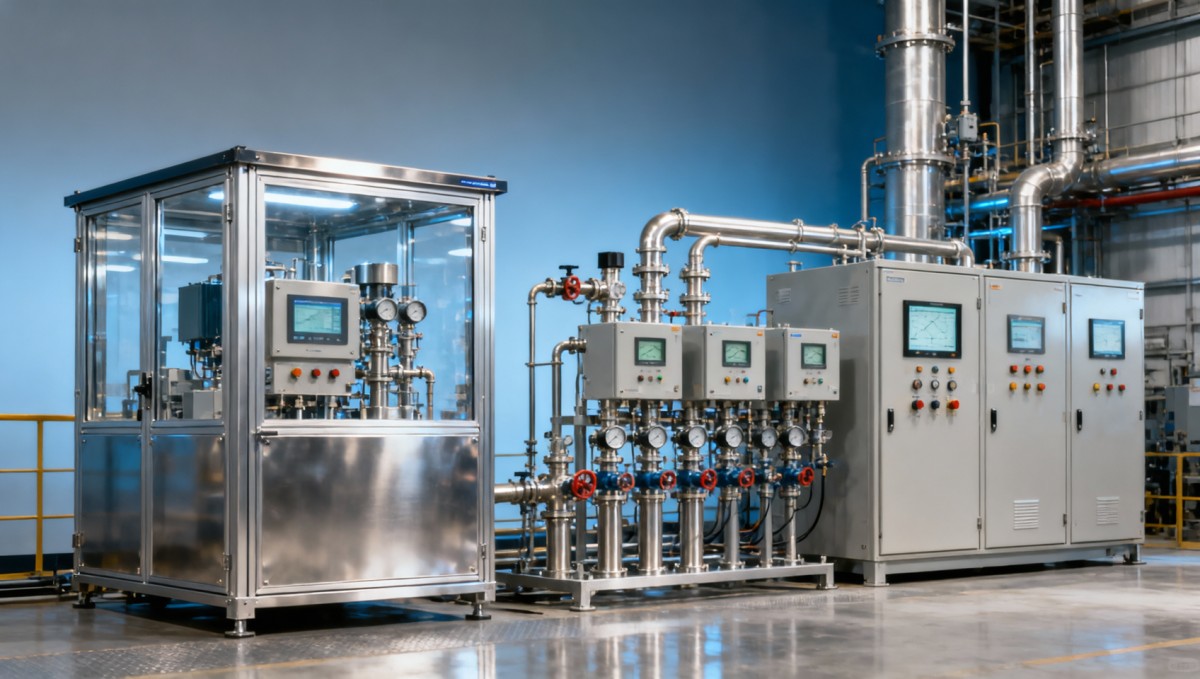

A shelter analyzer is not simply an analyzer placed indoors. It is an integrated enclosure or small house that creates a controlled operating environment for the analyzer, sample conditioning unit, calibration accessories, power distribution, and often PLC or DCS interface hardware. In many projects, the shelter also includes air conditioning, ventilation, heating, gas leak detection, fire protection, and cable management.

The main problem it solves is measurement instability caused by the surrounding site. A gas concentration analyzer or oxygen measurement device can drift when ambient temperature swings from -20°C to 45°C, when dust loading is high, or when rain and condensation affect fittings and electrical connections. A shelter reduces these variables and creates a more predictable operating range, often keeping internal temperature within 20°C to 30°C depending on the application.

It also addresses maintainability. Standalone analyzers mounted directly near a process line may be technically acceptable, but they can be difficult to access, unsafe during poor weather, and more time-consuming to calibrate. When maintenance time drops from 90 minutes to 30 minutes per intervention, the savings are meaningful over 12 to 24 service events per year.

Typical functions beyond enclosure protection

The practical value of an analyzer shelter usually comes from system integration rather than the structure alone. Procurement teams should confirm what is included in the scope, because “shelter analyzer” can mean different levels of completeness from one supplier to another.

• Environmental control for ambient temperatures, humidity, and airborne contamination.
• Sample conditioning support such as heated lines, filters, coolers, and moisture removal.
• Safety support including gas detection, forced ventilation, emergency shutoff, and hazardous area considerations.
• Operational convenience through grouped instruments, calibration ports, lighting, and service access clearance.

In short, the shelter becomes part of the measurement system. That is why it is often justified where emissions compliance, combustion control, process optimization, or worker safety depends on stable analyzer availability above 95% to 98%.

When a Standalone Analyzer Is Not Enough

Not every application needs a shelter. In light-duty indoor environments, with clean utilities and moderate temperatures, a standalone industrial analyzer may be sufficient. The stronger case for a shelter appears when process conditions, installation conditions, or business consequences create a higher reliability threshold.

A common trigger is environmental severity. If the analyzer is exposed to direct sun, monsoon rain, salt air, cement dust, corrosive vapors, or strong winter conditions, the enclosure and conditioning environment can be the difference between routine calibration and repeated failure. Sites with vibration from compressors, turbines, or heavy conveyors also benefit because the shelter can improve layout and mechanical protection.

Another trigger is regulatory pressure. Emission analyzer systems used for stack monitoring, combustion efficiency, or environmental reporting often need documented calibration, traceability, and stable sample paths. If the process gas analyzer contributes to compliance reporting or permit obligations, downtime of even 4 to 8 hours can create operational and documentation problems.

Decision signals that point toward a shelter

The table below helps translate field reality into a selection decision. It is especially useful for project managers, EHS teams, and buyers comparing a low-capex analyzer mount with a shelter-based package.

The table shows that a shelter is most justified when at least 2 or 3 risk factors appear together. A single harsh condition may be manageable through local enclosure upgrades, but combined exposure, compliance sensitivity, and analyzer complexity usually shift the economics toward a shelter solution.

Common misconception

One frequent mistake is comparing only the initial equipment cost. A shelter may increase project capex, but it can lower recalibration effort, analyzer replacement frequency, weather-related intervention time, and process disruption. In operations running 8,000 hours per year, even small gains in uptime and measurement stability can outweigh the added structure cost within 12 to 36 months.

Selection Criteria for Users, Buyers, and Decision-Makers

A good shelter analyzer specification balances technical need, maintainability, and budget discipline. Users want stable readings and simple operation. Maintenance teams want accessible components and manageable spare parts. Procurement wants a clear scope boundary. Finance wants a measurable business case. These goals can align when the project team evaluates the system in a structured way.

Start with the measurement objective. Is the analyzer used for oxygen measurement in combustion control, for gas concentration tracking in process optimization, or for emission analyzer duty tied to reporting obligations? Accuracy tolerance may vary from application to application. Some field systems may accept modest drift between calibrations, while others require tighter repeatability and documented check intervals every 7, 14, or 30 days.

Then review the sample system. In many failed installations, the analyzer itself is not the root cause. Sample line length, condensation, particulate loading, dead volume, and pressure fluctuations create unstable readings. A shelter provides space for proper sample conditioning layout, which is especially important when dealing with wet gas, dust, corrosive compounds, or multi-point switching.

Five criteria that should be documented before purchase

1. Ambient and process conditions, including temperature range, humidity, dust level, and chemical exposure.
2. Required analyzer availability, such as above 95%, above 98%, or tied to continuous reporting obligations.
3. Calibration and maintenance expectations, including service interval, access time, and spare part policy.
4. Electrical and utility needs, such as HVAC load, instrument air, drain handling, and backup power expectations.
5. Integration scope with PLC, DCS, SCADA, alarms, local HMI, and safety interlocks.

To support commercial evaluation, many teams use a weighted scorecard rather than open discussion alone. The following comparison is a useful starting point for bid reviews and internal approval.

For financial approvers, lifecycle cost is often the turning point. If the shelter extends service life by 2 to 4 years, reduces field interventions by 20% to 40%, or helps avoid a small number of production interruptions, the total value can be substantial even in conservative capital plans.

Implementation, Utilities, and Maintenance Planning

A shelter analyzer project should be treated as a system package, not as a late-stage accessory. Once the analyzer technology is selected, the shelter must be designed around service clearances, cable entry routes, sample line routing, drain management, HVAC capacity, and safety devices. Waiting until installation often creates layout conflicts that increase commissioning time by 1 to 3 weeks.

Utility planning deserves special attention. HVAC sizing is influenced by ambient extremes, solar load, internal heat from analyzers and control panels, and door opening frequency. Some projects need only basic cooling and ventilation, while others require heating to keep sample components above dew point during winter starts. If the application includes a process gas analyzer handling wet or corrosive gas, trace heating and condensate strategy become critical.

Maintenance teams should review the shelter layout before fabrication. Filters, pumps, solenoids, coolers, and calibration gas ports should be reachable without awkward access. A system that saves 10 minutes per task across 6 recurring service items can return many labor hours over a year, especially on remote sites or multi-unit plants.

A practical 5-step delivery framework

1. Define the measurement duty, gas composition, response time target, and analyzer uptime requirement.
2. Confirm environmental and safety constraints, including hazardous area classification if applicable.
3. Develop the shelter layout with sample conditioning, control, and maintenance access built in.
4. Carry out factory testing of wiring, alarms, HVAC function, and analyzer integration before shipment.
5. Commission on site with calibration verification, loop checks, and operator training.

Typical schedule expectations

For standard packages, engineering and fabrication may take 4 to 8 weeks, while more customized analyzer shelter systems can extend to 10 to 16 weeks depending on component lead times and control panel complexity. Site installation and commissioning may add another 3 to 10 days if civil works and utilities are ready.

Post-start support matters as much as initial delivery. Plants should define who handles calibration gases, consumables, HVAC servicing, analyzer diagnostics, and emergency response. A support model that combines operator checks every shift, technician inspection every month, and preventive maintenance every 3 to 6 months is common for continuous-duty systems.

Common Risks, Missteps, and Questions from the Field

Even well-funded analyzer projects can underperform if the shelter is specified too narrowly. One frequent issue is focusing on enclosure material while ignoring sample conditioning. Another is underestimating internal heat load, which causes analyzer drift during summer peaks. Some projects also forget service ergonomics, leaving no room to replace pumps, filters, or cylinders safely.

There is also a tendency to overbuild. Not every analyzer needs a full shelter with extensive utility systems. For low-risk applications, a weatherproof analyzer cabinet may be sufficient. The right decision depends on process criticality, environmental severity, and maintenance constraints. A balanced assessment should compare at least 3 options: direct field mounting, cabinet protection, and full shelter integration.

For quality and safety managers, documentation is another risk point. If alarm logic, calibration access, ventilation, and gas leak response are not clearly documented, the plant inherits future audit and training problems. Good documentation reduces operational ambiguity and shortens troubleshooting time when staff change or contractors are involved.

FAQ

How do I know whether a shelter analyzer is justified for a single analyzer point?

If the point is outdoors, compliance-relevant, difficult to access, or exposed to temperatures outside a stable 15°C to 30°C environment, a shelter may still be justified even for one analyzer. The key question is consequence of bad data or downtime, not just analyzer count.

What should procurement ask suppliers first?

Ask for scope detail in 4 areas: analyzer and sample system, shelter utilities, safety features, and commissioning support. Also request expected maintenance tasks, recommended spare parts for the first 12 months, and factory test scope before shipment.

How long does commissioning usually take?

For straightforward systems, commissioning may take 3 to 5 days. For integrated systems with DCS communication, multiple sample paths, and alarm logic verification, 7 to 10 days is more realistic. Utility readiness and operator availability strongly affect the schedule.

What are the most overlooked operating costs?

The most overlooked costs are often HVAC energy, calibration gas consumption, filter and pump consumables, service labor for inaccessible layouts, and downtime caused by poor sample handling. These can exceed the apparent savings of a lower-cost installation.

A shelter analyzer makes sense when the analyzer system must deliver dependable performance under conditions that a standalone installation cannot manage consistently. That is especially true for process gas analyzer, combustion analyzer, oxygen measurement, monitoring analyzer, emission analyzer, and Multi Component Gas Analyzer applications where uptime, safety, and data confidence all matter.

For users and operators, the right shelter design improves access and reduces troubleshooting pressure. For procurement and finance teams, it supports a better lifecycle-cost decision. For project leaders and safety managers, it lowers implementation risk by integrating protection, utilities, and serviceability into one practical package.
