Trace Gas Control in Clean Processes: Common Setup Gaps

In clean processes, even minor setup mistakes can undermine trace gas control, leading to unstable measurements, contamination risks, and costly downtime. For operators and end users, understanding where these gaps typically appear is the first step toward more reliable performance. This article explores common setup issues, why they matter in practical applications, and how better instrumentation choices can improve process stability, accuracy, and compliance.

In practical terms, trace gas control affects more than analyzer readings. It shapes batch consistency, alarm credibility, preventive maintenance intervals, and the ability to keep production, laboratory, utility, or environmental systems within defined limits. In many clean applications, a deviation of only a few ppm, or even ppb in sensitive environments, can trigger product loss, rework, or an unplanned shutdown.

For operators, the challenge is rarely a single device failure. More often, the problem comes from small setup gaps across sampling lines, fittings, purge logic, sensor placement, calibration routines, and control integration. When these details are handled well, trace gas control becomes more stable, repeatable, and easier to manage day after day.

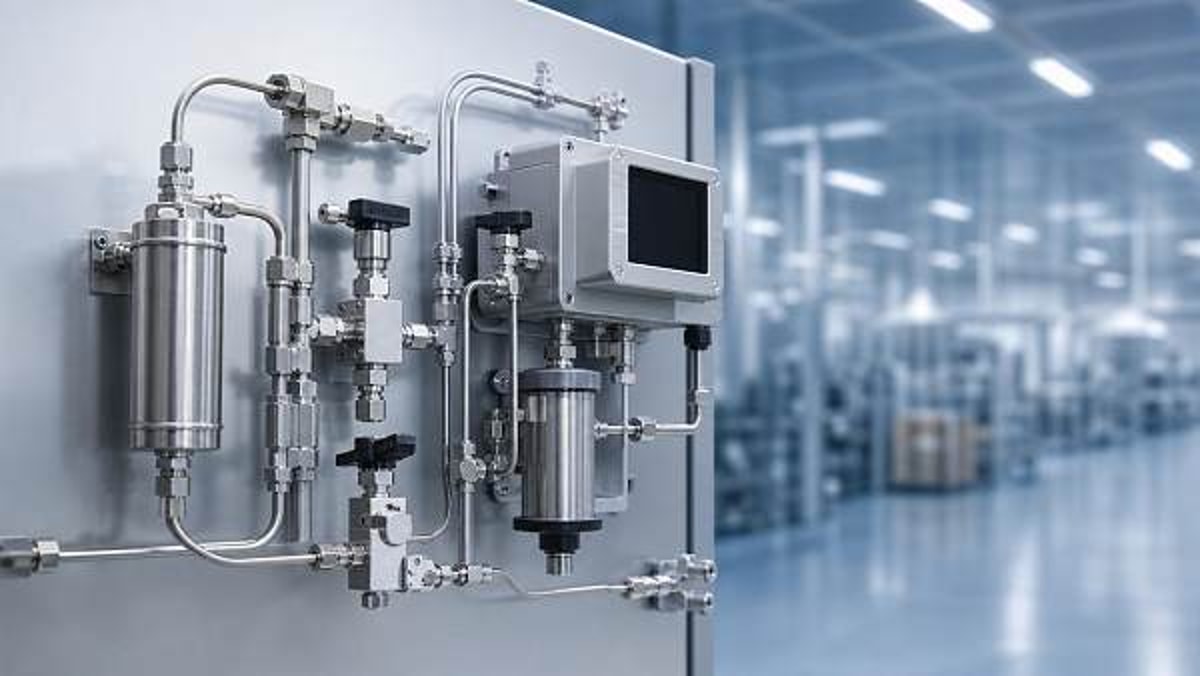

Where Trace Gas Control Setup Usually Goes Wrong

Most setup issues appear during installation, commissioning, or quick process modifications. In clean processes, especially those involving high-purity gas lines, controlled atmospheres, laboratory skids, and automated manufacturing, a small mismatch between instrument design and field conditions can distort readings within 5 to 30 minutes of startup.

The most common pattern is this: the analyzer itself is suitable, but the surrounding system is not. Tubing material, dead volume, flow stability, leak tightness, response time, and purge arrangement often decide whether trace gas control performs as expected. Operators frequently discover the problem only after drift, false alarms, or unexplained process variation appears.

Poor Sampling Line Design

Sampling lines are a major source of error. Long tubing runs, oversized internal diameters, and unnecessary elbows can increase lag time and adsorption effects. In trace gas control, a delay of 20 to 90 seconds may be enough to hide fast process changes, while moisture or reactive gas absorption on tubing walls may cause persistent low-biased measurements.

Material selection matters as well. Stainless steel is common, but not every grade or surface condition is ideal for every gas. For corrosive, moisture-sensitive, or ultra-low concentration monitoring, operators should verify compatibility with the target gas, expected temperature range, and cleaning method before installation.

Typical sampling line mistakes

• Using tubing runs longer than necessary, such as 10 to 25 meters when 3 to 8 meters would be sufficient
• Selecting tubing diameters that increase dead volume and slow response
• Installing low points where condensate can collect during temperature changes
• Mixing incompatible seals, ferrules, and fitting materials in the same line
• Skipping a proper purge cycle after maintenance or changeover

Incorrect Sensor or Analyzer Placement

Even a high-performance analyzer can underperform if it is placed in the wrong part of the process. A common issue is mounting the sensor too far downstream, after a dilution, mixing, or pressure regulation point that changes the gas composition seen by the instrument. Another issue is placing it too close to a disturbance zone where flow pulsation creates unstable readings.

As a practical rule, operators should check three distances during setup: distance from the process takeoff point, distance from conditioning components, and distance from sources of vibration or heat. In many systems, shifting the measurement point by only 1 to 2 meters can improve repeatability and reduce false variation.

The table below highlights common setup gaps in trace gas control and the operational effects they create in clean process environments.

The key point is that most of these issues are not hidden design flaws. They are visible, correctable setup decisions. A short site review using 6 to 10 inspection items often reveals where trace gas control is being compromised before major failures occur.

Leaks, Dead Legs, and Contamination Entry Points

Clean process systems depend on leak integrity. Even a very small leak can distort low-level gas measurements, especially when ambient air, moisture, or cleaning residues enter the sample path. This is particularly critical when monitoring oxygen, CO2, VOCs, or moisture traces in enclosed or purity-sensitive systems.

Dead legs create a different problem. A short unused section of tubing or a poorly positioned tee fitting can trap residual gas and release it later, creating a memory effect. Operators may see a reading that lags 2 to 3 measurement cycles behind the actual process condition, which complicates process decisions and alarm interpretation.

Why These Gaps Matter in Daily Operation

Setup gaps in trace gas control are not only technical issues. They affect how operators trust the system. When readings drift, respond slowly, or contradict physical process conditions, teams begin bypassing alarms, delaying corrective actions, or relying on manual checks. That weakens automation value and raises the risk of inconsistent product quality.

In facilities that run 16 to 24 hours per day, even one unstable analyzer channel can trigger repeated callouts, increased calibration gas consumption, and unnecessary maintenance work. If a single event causes 2 to 4 hours of lost production, the cost impact can exceed the original instrument price many times over.

Measurement Drift and False Confidence

One of the most dangerous outcomes is not a complete failure but a believable wrong value. If trace gas control drifts gradually over 7 to 14 days, operators may continue using the measurement because the trend still looks smooth. Yet the baseline may have shifted enough to hide contamination, excess purge gas, or incomplete process recovery.

This is why many end users set practical acceptance bands around critical points. For example, they may require repeatability within a narrow range, stable zero behavior over a defined shift, and response confirmation after each intervention. These checks are simple, but they reduce the chance of accepting inaccurate data as normal.

Compliance, Traceability, and Downtime Pressure

In regulated or quality-controlled environments, trace gas control also supports documentation and traceability. If sampling paths, calibration steps, or alarm delays are poorly configured, it becomes harder to explain deviations during audits, customer reviews, or internal quality investigations. Operators then spend more time reconstructing events instead of correcting them.

Downtime pressure adds another layer. During urgent restarts, teams may skip full purge verification, reuse aging seals, or postpone leak checks. Those shortcuts often save 30 minutes upfront but can create several hours of instability later. For clean processes, controlled startup discipline is usually faster over a weekly production cycle than repeated reactive troubleshooting.

Operational warning signs to watch

1. Analyzer response time has become noticeably slower than during commissioning.
2. Zero or baseline recovery now takes 2 times longer after line opening or filter replacement.
3. Readings differ from handheld checks or process indicators by more than the normal working tolerance.
4. Alarm events cluster around maintenance activities, shift changes, or startup transitions.
5. Calibration frequency has increased from monthly to weekly without a clear process reason.

How to Improve Trace Gas Control Through Better Setup and Instrumentation

Improving trace gas control does not always require replacing the entire system. In many cases, performance improves through a structured review of the sample path, instrument selection, control logic, and maintenance method. Operators and buyers should focus on the full measurement chain rather than evaluating the analyzer in isolation.

A practical improvement plan usually has 4 stages: assess the current setup, identify the highest-risk gaps, optimize hardware and configuration, and validate performance under normal operating conditions. This approach helps reduce unnecessary spending while addressing the issues that most affect stability and reliability.

Selection Criteria for End Users

When selecting or upgrading instrumentation for trace gas control, operators should compare more than detection range. Response time, sample compatibility, baseline recovery, purge requirements, maintenance access, communication protocol, and spare part availability are equally important. In clean processes, lifecycle fit often matters more than the headline sensitivity value.

The table below can help end users compare setup and instrumentation priorities before procurement or retrofit planning.

A strong procurement decision balances performance, maintainability, and installation fit. For many facilities, the best trace gas control solution is not the most complex platform, but the one that can deliver stable operation across 12 months of real field use with clear service routines.

Practical Setup Improvements Operators Can Apply

Operators can improve trace gas control by standardizing a short setup verification checklist. This should include leak checking, line routing review, valve position confirmation, baseline stabilization time, and post-maintenance purge validation. A 15- to 30-minute check before startup can prevent far longer investigation later.

It is also useful to document normal values after commissioning. Record typical response time, baseline drift, flow setting, and recovery behavior. Once these reference points are established, teams can detect deviation early instead of waiting for a full alarm or product impact.

Recommended field checklist

• Verify all fittings and seals after installation or part replacement.
• Confirm sample flow stays within the instrument’s recommended operating range.
• Remove unused tees, dead ends, or bypass branches where possible.
• Check whether filters and regulators introduce delay, contamination, or pressure instability.
• Allow a defined stabilization window, such as 10 to 20 minutes, before accepting readings after intervention.
• Review alarm delays so they match real analyzer response rather than ideal design assumptions.

Training and Service Support as Part of the Solution

Trace gas control depends on people as much as hardware. If operators are not trained to recognize memory effects, leak symptoms, or abnormal purge behavior, the same setup gaps tend to return after every service event. Short, role-specific training is often more effective than broad technical presentations.

Service support should also be evaluated in practical terms. Buyers should ask about response time, spare parts lead time, calibration support, and commissioning assistance. A supplier that can help with sample system review, not just analyzer delivery, usually provides better long-term value in clean process applications.

Common Questions from Operators and End Users

Many field questions about trace gas control are linked to daily usability rather than theory. The points below address frequent concerns that appear during installation, troubleshooting, and routine operation.

How often should a trace gas setup be reviewed?

A practical review interval is every 3 to 6 months for stable systems, and more often after major maintenance, gas source changes, or process modifications. If baseline recovery time, calibration frequency, or response behavior changes noticeably, review the setup immediately rather than waiting for the next scheduled check.

Is analyzer accuracy enough to guarantee good trace gas control?

No. Analyzer accuracy is only one part of the result. Sample transport, leak tightness, material compatibility, flow conditioning, and control integration all influence whether the measured value represents the real process. In many clean systems, sample handling quality determines performance as much as the sensor itself.

What is the first thing to check when readings become unstable?

Start with the simplest causes: leaks, flow instability, recent maintenance changes, purge completeness, and contamination in filters or tubing. These account for a large share of field issues and can often be checked within the first 20 to 40 minutes of troubleshooting.

Reliable trace gas control in clean processes comes from disciplined setup, suitable instrumentation, and repeatable service practices. When operators address sampling design, placement, leak integrity, purge logic, and maintenance routines together, they reduce drift, improve confidence in alarms, and protect production stability.
