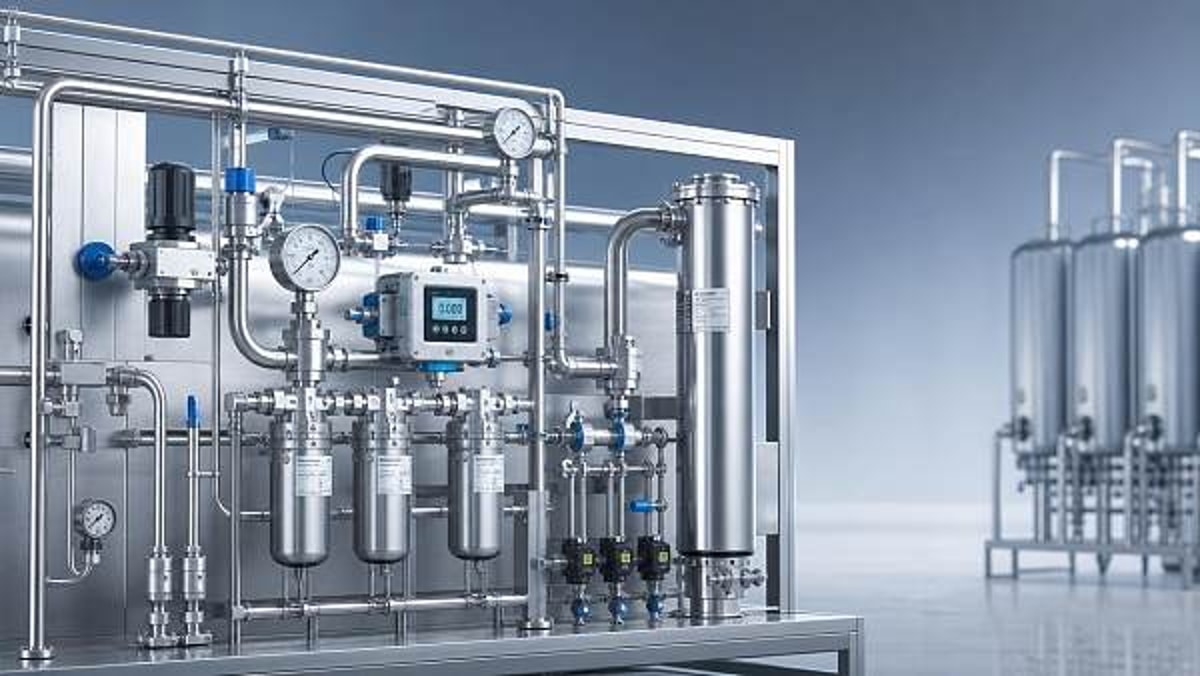

What to Check Before Expanding an Industrial Gas System

Expanding an industrial gas system is not just about adding capacity—it requires careful checks on pressure stability, flow demand, material compatibility, safety compliance, and future scalability. For project managers and engineering leaders, understanding these critical factors early can reduce downtime, control costs, and prevent operational risks. This guide outlines what to evaluate before expansion to support reliable performance and smarter project planning.

Why a checklist approach matters before expanding an industrial gas system

For project leaders, an industrial gas system expansion often touches multiple disciplines at once: process design, instrumentation, piping, controls, utilities, safety, procurement, and commissioning. If one item is overlooked, the project may still reach mechanical completion but fail in daily operation. Common consequences include unstable pressure at critical points, compressor overload, inaccurate flow measurement, poor analyzer performance, unsafe gas mixing, and expensive rework after startup.

A checklist-based review helps teams move from assumptions to verifiable decisions. It forces early confirmation of actual demand, confirms whether existing equipment can tolerate the new operating envelope, and highlights where instrumentation accuracy, alarm logic, or code compliance may need upgrades. This is especially important in industries that depend on stable measurement and control performance, because gas quality and delivery conditions directly affect sensors, analyzers, actuators, and process repeatability.

Start with the essential pre-expansion checklist

Before approving scope, budget, or shutdown windows, prioritize the following checks for the industrial gas system. These are the items most likely to affect feasibility, schedule, and long-term reliability.

• Confirm the real gas demand profile, not just nameplate demand. Review peak flow, average flow, startup surges, batch cycles, seasonal changes, and future load assumptions.
• Verify supply pressure stability across the full network. Expansion capacity is meaningless if end users see pressure drops outside operating limits.
• Check gas purity, moisture limits, particulate levels, and contamination risks. New branches or added equipment can introduce quality issues that affect sensitive instruments.
• Review material compatibility for pipes, seals, valves, regulators, and fittings. Compatibility must match gas composition, pressure, temperature, and cleaning requirements.
• Assess the performance margin of existing compressors, vaporizers, manifolds, storage vessels, pressure-reducing stations, and filtration units.
• Validate instrument rangeability and accuracy. Existing transmitters, flowmeters, pressure switches, and gas analyzers may no longer be suitable after expansion.
• Confirm safety compliance, including hazardous area classification, ventilation, relief protection, shutoff logic, leak detection, and applicable codes.
• Plan maintainability and isolation points. An expanded industrial gas system should allow maintenance without shutting down the entire plant.
• Examine control system integration, alarm priorities, interlocks, and data visibility for the added load and new operating modes.
• Test the business case against future scalability. A short-term fix can become the most expensive option if another expansion is likely within two to three years.

Check demand, flow, and pressure before touching equipment

The first engineering question is simple: how much gas is really needed, where, and when? Many industrial gas system upgrades fail because teams size for connected load rather than simultaneous use. Create a demand map by user, process step, and operating mode. Include startup demand, purge cycles, analyzer calibration use, emergency consumption, and abnormal but credible scenarios.

After demand is mapped, perform a pressure drop review from source to the farthest or most sensitive point of use. Long pipe runs, undersized headers, too many fittings, and shared branches can create hidden bottlenecks. If instruments or valves need a stable minimum inlet pressure, that requirement should become a hard design criterion, not a secondary note.

Project managers should ask for three clear outputs: the current baseline flow and pressure profile, the projected profile after expansion, and the minimum acceptable conditions for critical users. Without those three references, expansion decisions become guesswork.

Review gas quality and material compatibility as a combined decision

Gas quality is often treated separately from mechanical design, but in an industrial gas system the two are linked. If the expansion supports analyzers, laboratory instruments, automation skids, or precision process control, gas purity and dew point may matter as much as pressure and flow. Oil carryover, rust particles, water ingress, and wrong seal materials can degrade measurement accuracy or damage downstream components.

Material compatibility should be reviewed at the full assembly level, not just pipe metallurgy. Gaskets, O-rings, valve packing, hoses, thread compounds, and regulator internals may react differently to oxygen service, corrosive gases, hydrogen blends, or high-purity media. In some cases, the existing industrial gas system may be acceptable for inert utility service but not suitable for a cleaner or more reactive gas stream introduced during expansion.

As a practical rule, ask whether the expansion changes any of the following: gas type, concentration, operating temperature, cleanliness requirement, moisture tolerance, or cleaning standard. A “yes” to any one of these means compatibility should be formally revalidated.

Evaluate source equipment and hidden capacity limits

An industrial gas system may appear to have spare capacity because the main source equipment is not fully loaded on average. That is not enough. Project teams should review maximum continuous capacity, turndown behavior, standby philosophy, maintenance reserve, and response time during demand spikes. Compressors may run adequately in normal conditions yet fail to recover pressure fast enough after a large purge event or simultaneous startup.

Hidden limits also show up in filters, dryers, vaporizers, manifolds, non-return valves, and pressure regulators. These components are frequently smaller than the main equipment and become the first restriction after expansion. If the industrial gas system depends on dew point control or particulate filtration, the capacity of the treatment train must be checked at expanded flow conditions, not just the mechanical capacity of the header.

A quick decision table for project reviews

Do not overlook instrumentation, controls, and monitoring points

In the instrumentation industry, a gas system expansion is rarely only a piping job. Measurement and control performance must be protected throughout the project. Existing flowmeters may lose accuracy if velocity changes beyond their optimal range. Pressure transmitters may need a new span. Control valves may become oversized or undersized. Sampling systems may require revised line lengths, regulators, or conditioning devices to keep analyzer response time acceptable.

Monitoring strategy is equally important. A larger industrial gas system should provide better visibility, not less. Add or relocate pressure indicators at strategic nodes, confirm alarm setpoints, and review trend recording for troubleshooting. If the facility is moving toward digital operations or predictive maintenance, expansion is a good time to standardize tags, diagnostics, and integration with SCADA or DCS platforms.

Adjust the checklist by application and operating scenario

Not every industrial gas system serves the same purpose, so expansion criteria should reflect application risk. Project managers should tailor reviews around the actual end use.

• For manufacturing and automation lines: prioritize pressure stability, flow repeatability, valve response, and maintenance isolation to avoid unplanned production losses.
• For laboratory or analytical service: focus on purity, regulator selection, dead volume, contamination control, and consistent delivery to analyzers and calibration devices.
• For energy and utility systems: confirm source redundancy, surge handling, remote monitoring, and compliance with site-wide safety and emergency shutdown philosophy.
• For environmental monitoring or medical-related support systems: verify gas identification, traceability, cleanliness, and any stricter quality or documentation requirements.

Commonly missed risks in an industrial gas system expansion

Several issues are repeatedly missed during project planning. First, teams often forget startup and abnormal operations. The industrial gas system may work at steady state but fail during simultaneous line purges or after maintenance restarts. Second, expansion tie-ins are underestimated. Temporary shutdown windows, isolation complexity, and cleaning or leak-test requirements can extend the schedule far beyond installation time.

Third, documentation gaps create long-term risk. If P&IDs, line lists, valve schedules, and instrument ranges are not updated, future troubleshooting becomes slower and less safe. Fourth, spare strategy is ignored. A larger system with no spare regulator train, no backup analyzer gas path, or no stocked seal kits can increase operational vulnerability rather than reduce it.

Finally, many projects optimize only capital cost. A cheaper expansion that causes poor measurement quality, frequent manual intervention, or repeated recalibration may cost more over the system life cycle. For decision-makers, total ownership cost should be part of the industrial gas system review from the beginning.

Execution recommendations for project managers and engineering leads

To move from concept to a reliable expansion plan, structure the work in stages. First, collect baseline operating data for at least a representative period. Second, define critical users and non-negotiable performance limits. Third, complete a multidisciplinary review that includes process, mechanical, instrumentation, controls, EHS, operations, and maintenance. Fourth, compare at least two expansion options: a minimum-capex solution and a scalable solution.

Before release for procurement, ask for a concise design review package that includes hydraulic calculations, equipment capacity checks, material compatibility confirmation, control narrative updates, alarm and interlock impacts, shutdown requirements, commissioning logic, and as-built document responsibilities. This package gives project stakeholders a common decision basis and reduces the risk of late changes.

Final action checklist before approving the expansion

If you are preparing to expand an industrial gas system, the most useful next step is to organize the project around a short approval checklist: confirm actual demand, verify pressure and flow margins, validate gas quality requirements, review material and component compatibility, check instrumentation suitability, confirm compliance and safety logic, and document the commissioning path. When these items are clarified early, the project is easier to budget, easier to schedule, and more likely to deliver stable long-term performance.

If further evaluation is needed, prioritize discussions around operating parameters, gas composition, pressure targets, redundancy expectations, integration with existing controls, maintenance philosophy, implementation timeline, and total budget. Those are the questions that most directly determine whether an industrial gas system expansion will be merely larger—or genuinely better.
