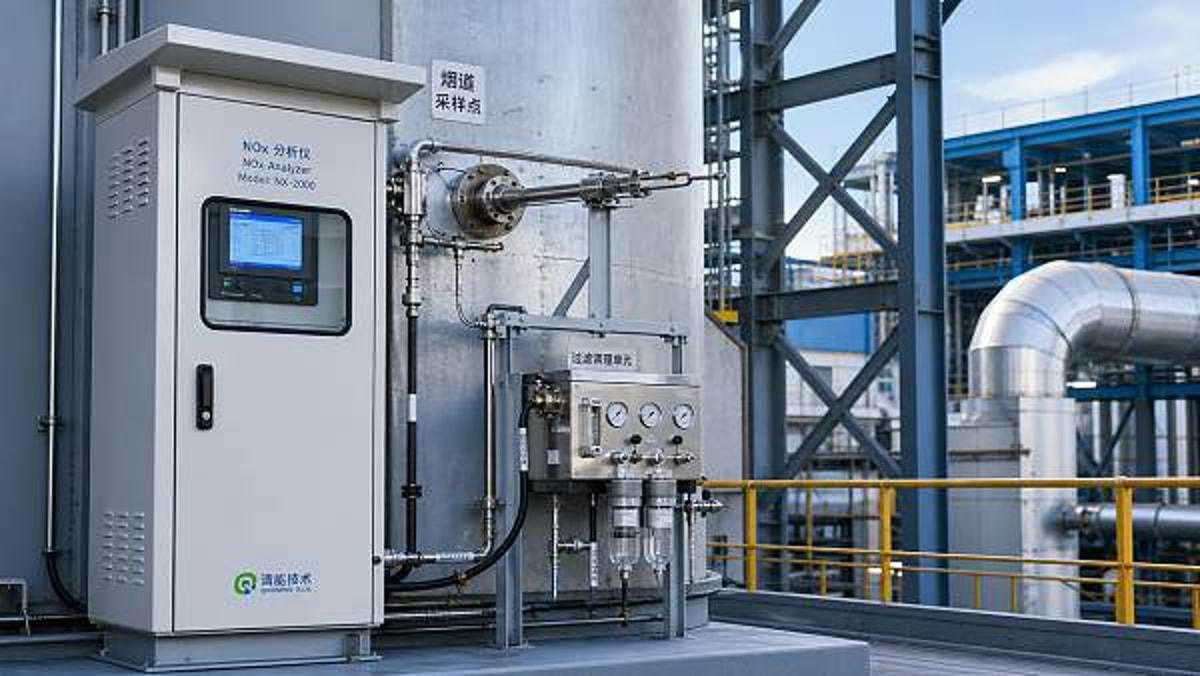

NOX Analyzer for Power Plant Emissions: Common Setup Issues to Avoid

A NOX analyzer for power plant emissions is only as reliable as its setup. For after-sales maintenance teams, small installation or calibration mistakes can quickly lead to unstable readings, false alarms, and compliance risks. Understanding the most common setup issues helps reduce downtime, improve measurement accuracy, and ensure the analyzer performs consistently in demanding power plant environments.

For service and maintenance personnel, a checklist-based approach is the fastest way to diagnose setup quality. In power generation sites, analyzers are exposed to vibration, dust, moisture, temperature swings, corrosive flue gas, and frequent operational changes. That means a NOX analyzer for power plant emissions cannot be judged by one parameter alone. You need to confirm sampling conditions, installation details, gas path integrity, calibration logic, signal transmission, and environmental protection as a connected system. When these items are reviewed in the right order, troubleshooting becomes more efficient and repeat failures are easier to prevent.

Start with the critical setup checks before looking at analyzer faults

Many maintenance teams begin with the analyzer cabinet when readings drift, but in power plant applications the root cause is often upstream. Before replacing sensors or adjusting software, verify whether the installation environment and sample delivery system are suitable. A NOX analyzer for power plant emissions depends on representative sample extraction and stable operating conditions. If the sample entering the instrument is diluted, condensed, delayed, or contaminated, even a high-quality analyzer will produce unreliable results.

• Confirm whether the probe location represents average flue gas conditions rather than a dead zone or turbulence-heavy point.
• Check if the sample line temperature is maintained above the acid dew point to prevent condensation.
• Verify that filters are clean and correctly installed, without causing excessive pressure drop.
• Review calibration gas quality, regulator condition, and line leak tightness.
• Make sure electrical grounding, shielding, and signal wiring are separated from high-noise power lines.
• Confirm the analyzer range and response settings match the actual combustion and emissions profile.

Using this sequence helps after-sales teams avoid the common mistake of treating symptoms inside the analyzer while the true problem remains in the sampling or installation stage.

Core checklist: the setup issues that most often affect measurement accuracy

1. Sampling point selection is wrong or poorly evaluated

A frequent issue with a NOX analyzer for power plant emissions is choosing a sampling point for convenience instead of representativeness. If the probe is placed too close to bends, dampers, soot-blowing zones, or reagent injection areas, the gas composition may fluctuate sharply. This leads to unstable NOX values that are not caused by the analyzer itself. Maintenance teams should confirm duct flow conditions, straight-run distance, and whether stratification is likely. If the plant uses SCR or SNCR systems, check whether ammonia slip or mixing quality is influencing local measurement consistency.

2. Heated line and sample conditioning are not matched to flue gas conditions

Condensation is one of the most damaging setup errors. Moisture in the sample line can absorb soluble gases, damage components, and distort NOX readings. In coal-fired and other high-moisture applications, line heating must be verified with actual temperature measurements rather than controller display only. Also inspect sample coolers, moisture separators, pumps, and drains. A blocked drain or weak pump may create slow response, carryover, or pressure instability that appears as analyzer drift.

3. Leaks are small but measurement impact is large

Even minor leakage in fittings, valves, calibration ports, or pump heads can dilute the sample and shift zero and span behavior. This is especially problematic when the analyzer operates under negative pressure sampling. After-sales personnel should perform leak testing during commissioning and again after maintenance work, not just when a fault alarm appears. If ambient air enters the line, NOX values may drop while oxygen trends rise, creating a misleading picture of process performance.

4. Calibration gas practices are inconsistent

A NOX analyzer for power plant emissions can only be trusted if calibration gases are appropriate and handled correctly. Common setup mistakes include using expired cylinders, incorrect concentration ranges, incompatible regulators, contaminated tubing, or calibration paths different from the normal sample route. For realistic system verification, span gas should test as much of the sample path as possible. Maintenance teams should also review calibration frequency, zero gas purity, and whether the analyzer has enough stabilization time before acceptance of calibration results.

5. Electrical interference is overlooked

Power plants contain drives, motors, transformers, and switching devices that can interfere with analyzer signals. If analog outputs, communication cables, and power supply wiring are routed together, the result may be noisy readings, communication drops, or false alarms. This issue is often mistaken for an internal instrument defect. Check grounding points, shield terminations, cabinet sealing, and power quality. Stable setup depends on both process-side and electrical-side discipline.

Use practical judgment standards during site inspection

A useful field review should answer not only “is this installed?” but also “is this installed correctly for this process?” The following table gives maintenance teams a quick reference when evaluating a NOX analyzer for power plant emissions.

Adjust your checklist by power plant operating scenario

Not every site creates the same setup risks. After-sales maintenance teams should adapt their inspection priorities based on fuel type, emissions control equipment, and operating mode.

Coal-fired units

Pay special attention to dust loading, ash accumulation, and sample filter blockage. Probe purge effectiveness and maintenance access become critical. Long sample lines may also increase lag time and thermal loss risk.

Gas-fired units

Although particulate levels are lower, fast load changes can create rapid emissions shifts. Confirm that analyzer response time, control logic, and range selection can track transient conditions without excessive smoothing.

Plants with SCR or SNCR systems

Review cross-sensitivity, mixing uniformity, and the impact of ammonia slip on measurement quality. Sampling location relative to reagent injection and catalyst stages should be checked carefully during setup review.

Peaking or cycling plants

Frequent startups and shutdowns put more stress on sample conditioning and warm-up control. A NOX analyzer for power plant emissions in these plants may appear healthy in steady operation but fail during transitions due to condensate formation or delayed stabilization.

Commonly ignored details that create repeat service calls

1. Service records do not include baseline flow, pressure, and temperature values, making later comparison difficult.
2. Replacement tubing or seals are chemically incompatible or temperature-rated too low.
3. Cabinet ventilation is poor, causing overheating and shortened component life.
4. Auto-calibration timing conflicts with plant operation changes, leading to misleading validation outcomes.
5. The analyzer range is technically acceptable but too wide for normal operation, reducing practical resolution.
6. Maintenance teams fix immediate alarms but do not investigate the root cause trend in pumps, filters, or sample line condition.

These overlooked items matter because they do not always trigger an instant fault. Instead, they slowly reduce confidence in the NOX analyzer for power plant emissions and increase the burden on both plant operators and service teams.

Execution tips for faster and more reliable maintenance work

To improve field efficiency, standardize the setup verification routine. Start every visit with a visual inspection, then confirm process conditions, then test the sample path, and only after that move into analyzer internals. Use a service worksheet that records line temperature, pump condition, filter status, leak test result, zero/span result, and output verification. This reduces subjective judgment and helps identify recurring plant-specific issues.

It is also useful to separate “commissioning acceptance” from “maintenance acceptance.” A system may have passed startup checks, yet still require optimization after several weeks of real operation. For example, filter replacement intervals, heat tracing settings, and calibration timing often need adjustment once actual fuel quality and load profile are known.

FAQ for after-sales teams handling NOX analyzer setup problems

Why does the analyzer calibrate correctly but show unstable live readings?

This usually points to sample path issues, poor probe location, moisture carryover, or process fluctuation at the extraction point rather than a core analyzer failure.

How often should leak checks be performed?

Leak checks should be part of commissioning, preventive maintenance, and any service event involving tubing, fittings, pumps, or filter assemblies.

What is the most underestimated setup risk?

In many cases it is condensation risk in the sample system, especially when displayed temperatures appear normal but actual line sections contain cold spots.

What to prepare before requesting deeper technical support

If the plant needs additional support for a NOX analyzer for power plant emissions, prepare the key information in advance: process flow and sampling point location, flue gas temperature and moisture conditions, recent calibration records, alarm history, spare parts replaced, wiring diagram, and any trend data showing drift or response delay. With these details, technical teams can assess parameter matching, installation suitability, service cycle planning, and possible upgrade options much faster.

A strong setup is not just an installation task; it is the foundation of stable compliance monitoring. For after-sales maintenance teams, the most effective next step is to use a structured checklist, compare actual field conditions against setup standards, and document every deviation that can affect measurement quality. If you need to confirm analyzer configuration, sampling system compatibility, maintenance interval, retrofit feasibility, budget expectations, or cooperation scope, prioritize those discussions early so the solution matches both the plant environment and long-term service needs.
