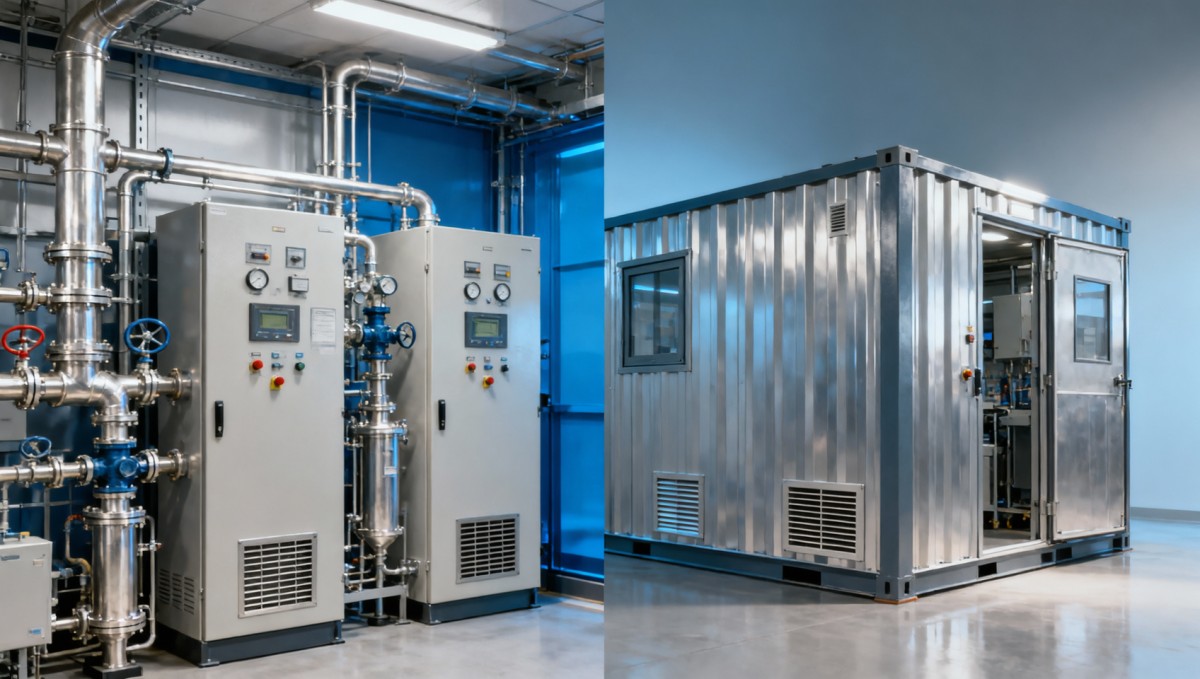

Gas analyzer enclosure sizing errors are easy to overlook during specification and procurement, but they often become a direct cause of poor uptime, unstable readings, difficult maintenance, accelerated component wear, and unnecessary operating cost. In real projects, the problem is rarely that an enclosure is simply “too small” or “too large” in a general sense. The real issue is mismatch: the enclosure does not match the analyzer type, ambient conditions, service access needs, thermal load, gas path design, or future maintenance strategy.

For operators, engineers, buyers, and project decision-makers, the practical conclusion is clear: enclosure sizing should be treated as a reliability decision, not just a packaging decision. A well-sized gas analyzer enclosure supports stable measurement, safe operation, easier servicing, and lower life-cycle cost. A poorly sized one does the opposite, even when the analyzer itself is high quality.

Why enclosure sizing matters more than many teams expect

When people evaluate a gas analysis system, they often focus on analyzer brand, sensor technology, detection range, response time, or compliance requirements. Those factors matter, but enclosure sizing directly affects how well all of them perform in the field. This is especially true in safety control analyzer systems, emission control analyzer installations, and process monitoring analyzer applications where environmental stability and service access are critical.

An enclosure that is undersized can create heat buildup, cramped tubing runs, poor cable management, restricted airflow, and limited access for calibration or repair. An oversized enclosure may seem safer, but it can also cause temperature control inefficiency, dead space, condensation risk, longer sample transport paths, and unnecessary shelter cost. In both cases, system reliability suffers.

For technical evaluators and quality or safety managers, the enclosure is part of the measurement environment. For procurement and business stakeholders, it is part of total cost of ownership. For operators, it affects whether routine tasks are straightforward or frustrating. That is why enclosure sizing should be assessed as a system-level design decision.

The most common gas analyzer enclosure sizing errors that reduce reliability

1. Sizing only around the analyzer body and ignoring the full system.

Many projects calculate enclosure size based mainly on the analyzer dimensions. In practice, the full footprint includes sample conditioning components, pumps, filters, regulators, valves, heated lines, calibration gas routing, junction boxes, power distribution, communication hardware, and service clearances. If these are treated as secondary items, the final layout becomes crowded and difficult to maintain.

2. Forgetting maintenance access space.

A gas analyzer system needs room for technicians to inspect connections, replace filters, perform calibration, access displays, remove modules, and troubleshoot failures. If service access is too tight, routine maintenance gets delayed, calibration quality declines, and downtime increases. A compact enclosure may look efficient on paper but become a long-term operational burden.

3. Underestimating thermal load.

Enclosures often contain analyzers, sample handling devices, heaters, controllers, lighting, and communication equipment. These all generate heat. If enclosure volume, ventilation, insulation, or HVAC capacity are not sized correctly, internal temperature can drift outside the ideal operating range. This affects measurement stability, electronics life, and sensor performance.

4. Oversizing without considering climate control behavior.

Some teams choose a very large enclosure to “be safe.” But extra internal volume is not always beneficial. In challenging environments, larger space can make heating or cooling less efficient, increase condensation zones, and complicate thermal uniformity. Oversizing can also increase installation footprint, structural support requirements, and energy consumption without improving analyzer reliability.

5. Ignoring sample line routing and internal layout.

Even if the enclosure seems large enough, poor layout can still create reliability issues. Excessive tubing length, tight bends, bad drain routing, and poor separation between hot and sensitive components can all affect gas transport and analyzer response. Reliability depends on usable layout space, not only external dimensions.

6. Not planning for future expansion or configuration changes.

Some analyzer shelters are sized exactly for day-one needs. Later, the site adds another measurement point, a data transmission module, extra calibration hardware, or upgraded conditioning components. Without moderate expansion capacity, teams face costly retrofits or performance compromises.

How wrong enclosure size affects measurement quality, uptime, and cost

Readers searching this topic are usually not just asking a design question. They want to know what can go wrong in operation and how much risk it creates. The impact shows up in several practical ways.

Measurement instability. Temperature fluctuations, sample transport issues, moisture buildup, and cramped installation conditions can all create drift, slower response, or inconsistent readings. In emissions monitoring or process control, that can mean poor compliance confidence or bad operating decisions.

More maintenance time. If a technician cannot easily reach a filter, valve, calibration port, or analyzer module, even basic service tasks take longer. Over time, labor cost rises and preventive maintenance quality falls.

Higher failure risk. Components exposed to excess heat, vibration from poor mounting arrangements, or moisture from poor thermal management will fail sooner. Reliability problems are often blamed on analyzer hardware when the enclosure design is the underlying cause.

Downtime and delayed troubleshooting. In a crowded or poorly organized enclosure, troubleshooting becomes slower because technicians cannot isolate issues quickly. Longer downtime affects production, compliance, and safety assurance.

Unnecessary capital and operating expense. An oversized enclosure may cost more to fabricate, transport, install, heat, cool, and maintain. An undersized enclosure may require redesign, retrofit, or early replacement. Either way, poor sizing increases life-cycle cost.

What different decision-makers should check before approving an analyzer enclosure

For operators and maintenance teams: Ask whether all routine service points are reachable safely and quickly. Can filters be changed without removing other components? Is calibration practical? Can doors open fully in the installation area? Is internal layout clear and labeled?

For technical evaluators and project engineers: Verify thermal calculations, ventilation or HVAC sizing, internal component spacing, sample path design, hazardous area requirements, ingress protection, and environmental suitability. Check whether layout drawings show real service clearances rather than only equipment placement.

For procurement teams: Do not compare supplier quotations only by enclosure dimensions or shell price. Ask what is included in the design basis: service access, insulation, thermal management, internal mounting, future expansion margin, and installation support. A low initial quote may hide long-term operating problems.

For business managers and financial approvers: Focus on total reliability value. The right enclosure size can reduce downtime, service hours, energy waste, and retrofit risk. The question is not “How small can we make it?” but “What enclosure size supports dependable operation at the lowest life-cycle cost?”

For safety and quality personnel: Confirm that enclosure sizing supports stable analyzer conditions, safe access, proper ventilation, and reliable compliance performance. In critical monitoring applications, mechanical convenience should never compromise measurement integrity.

A practical method to size an analyzer enclosure correctly

A reliable sizing approach should follow the actual application, not a generic enclosure template. A useful process includes these steps:

Define the analyzer system scope. List every internal component, not just the analyzer. Include conditioning systems, utility interfaces, electrical items, calibration accessories, drains, and communication equipment.

Map maintenance tasks. Identify what technicians must touch, remove, inspect, or replace during normal operation. Build access space around those tasks before finalizing enclosure dimensions.

Calculate thermal conditions. Review heat generated by all internal devices and compare that with site ambient temperature, solar load, and enclosure insulation or HVAC strategy. Reliability depends on maintaining a stable internal environment.

Design the internal layout. Plan tubing, wiring, access zones, drainage, and separation between sensitive and heat-generating equipment. Good layout often reveals whether the enclosure is truly adequate.

Allow reasonable expansion margin. Add space for likely future modifications, but do so intentionally rather than simply choosing the largest housing available. The goal is controlled flexibility.

Validate against operating conditions. Check whether the enclosure will perform properly in the real plant environment, including dust, humidity, corrosive atmosphere, vibration, weather exposure, and maintenance constraints.

How to recognize when a supplier truly understands enclosure reliability

Not all suppliers approach analyzer enclosure sizing with the same depth. A capable supplier will ask detailed questions about the measurement process, site conditions, maintenance routines, hazardous area classification, utility availability, and future scalability. They should be able to explain why a given enclosure size is appropriate, not just provide dimensions.

Good signs include clear layout drawings, service-access logic, thermal management rationale, sample system integration planning, and willingness to discuss life-cycle implications. Weak proposals often rely on generic statements like “sufficient space,” “customizable design,” or “compact footprint” without demonstrating how reliability will be protected.

For distributors, agents, and commercial evaluators, this distinction matters because enclosure quality affects end-user satisfaction and long-term support demand. For project owners, it helps separate a low-price package from a dependable analyzer solution.

Final takeaway: enclosure sizing is a reliability decision, not a box selection

Gas analyzer enclosure sizing errors hurt reliability because they directly affect temperature control, sample path quality, maintenance access, component life, and operating efficiency. In safety, emissions, and process monitoring applications, these effects can lead to unstable data, slower service, more downtime, and higher cost over the full project life.

The most useful way to evaluate enclosure sizing is to ask whether the enclosure supports the analyzer system as it will actually operate and be maintained. If the answer is based only on outer dimensions or initial purchase price, the project is exposed to avoidable risk. If the answer is based on layout, thermal performance, serviceability, and life-cycle value, reliability is far more likely to follow.

For buyers, engineers, and decision-makers, the best judgment standard is simple: the right analyzer enclosure is not the smallest, cheapest, or largest option. It is the one sized to protect measurement performance and keep the entire gas analysis system dependable over time.
