Oxygen Measurement System Calibration Mistakes That Cause Unstable Readings

Why do oxygen measurement system readings become unstable after calibration?

An unstable oxygen measurement system often points to calibration practice, not immediate sensor failure.

That matters across process control, emissions monitoring, medical testing, energy systems, and laboratory analysis.

In field service work, the same pattern appears repeatedly.

A transmitter is recalibrated, the display looks correct for a moment, then the signal drifts, hunts, or triggers false alarms.

More often, the root cause is a hidden error in zero gas, span gas, flow stability, warm-up, or compensation settings.

A modern oxygen measurement system is part of a wider control chain.

If calibration is weak, data quality degrades upstream and downstream.

That can affect combustion efficiency, product quality, safety interlocks, compliance records, and maintenance decisions.

At Global Instrument Hub, calibration is treated as a metrology discipline, not a button-pressing routine.

That perspective fits ISO-style quality thinking and real industrial troubleshooting.

The key question is simple: what mistakes actually make an oxygen measurement system unstable, and how can they be prevented in the field?

Is the problem really calibration, or is the sensor already failing?

This is usually the first wrong turn.

A drifting oxygen measurement system is often blamed on sensor aging before the calibration chain is checked.

In practice, a healthy sensor can still produce unstable readings if the setup conditions are poor.

Start with three observations.

• Does the reading stabilize before and after calibration gas exposure?
• Does the output return to process values smoothly, or overshoot and oscillate?
• Do the same symptoms appear on a reference analyzer or handheld verifier?

If instability appears only during or after adjustment, calibration technique deserves closer attention than sensor replacement.

Another clue is repeatability.

If each calibration gives a different result with the same gases, the oxygen measurement system may be responding to procedure error.

Typical examples include leaking tubing, contaminated regulators, poor venting, or rushing the stabilization period.

Sensor failure usually leaves a different signature.

Response becomes slow, output range compresses, or the analyzer cannot hold span even under controlled conditions.

Which calibration mistakes cause unstable readings most often?

Several mistakes appear across industries, from boilers and inerting skids to labs and environmental monitoring cabinets.

They are common because they seem minor during service, yet they directly affect analyzer behavior.

A frequent issue is using convenience gas instead of application-matched gas.

That may save time, but it weakens confidence in the oxygen measurement system once it returns to actual duty.

Needle valve behavior also matters.

If gas delivery pulses instead of flowing steadily, the analyzer may appear unstable even though the electronics are fine.

Could the calibration gas and setup conditions be misleading the analyzer?

Yes, and this is more common than many expect.

An oxygen measurement system does not calibrate in isolation.

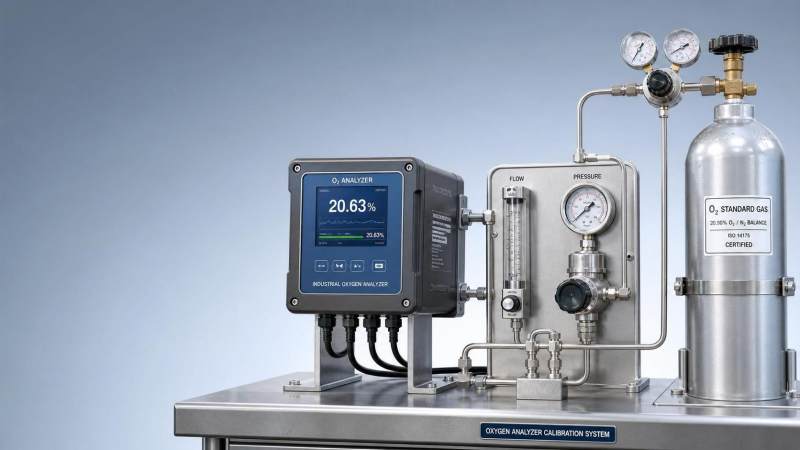

It responds to the complete path: cylinder, regulator, tubing, fittings, moisture condition, and vent arrangement.

A certified gas can still produce bad calibration if delivery conditions are poor.

For trace oxygen work, tiny leaks are especially damaging.

Ambient air ingress can raise the measured value enough to create a false zero or false span correction.

In higher-range combustion applications, moisture condensation and pressure fluctuation are often bigger problems than purity alone.

Another trap is regulator selection.

A regulator used previously on another gas service may introduce contamination or adsorption effects.

That becomes visible as delayed stabilization or unexplained reading creep.

In actual service rounds, it helps to verify the basics in a fixed order.

• Confirm gas identity, concentration, expiry date, and certificate traceability.
• Inspect tubing material for oxygen compatibility and leak sensitivity.
• Check regulator outlet pressure and flow stability under load.
• Purge long enough to replace trapped gas in the full sample path.
• Vent safely without backpressure that can disturb the analyzer cell.

This disciplined approach aligns with the evidence-based style promoted by GIH across instrumentation and calibration topics.

When zero and span look correct, why does the oxygen measurement system still drift in service?

Because a passing calibration does not always mean a representative calibration.

An oxygen measurement system can behave well on bottled gas, then drift once process temperature, pressure, flow pattern, or humidity return.

This happens often in furnaces, gas generators, emission skids, and sterile process equipment.

One reason is mismatch between calibration conditions and operating conditions.

If the analyzer uses compensation algorithms, those values must be current and relevant.

If the sample conditioning system is dirty or wet, the reading may drift after the calibration appears successful.

Some systems also need time to re-equilibrate after high-concentration span gas exposure.

That detail is easy to overlook during a fast service visit.

A useful field question is not only, “Did calibration pass?”

It is also, “Did the oxygen measurement system pass under conditions close to the process reality?”

Where drift persists, compare these factors before replacing parts:

• Calibration gas range versus normal operating range
• Analyzer cell temperature versus ambient or cabinet temperature
• Sample pressure during calibration versus sample pressure in service
• Dry calibration gas versus wet process gas behavior
• Response time before and after maintenance on filters or pumps

What is the practical way to calibrate an oxygen measurement system without repeat callbacks?

The most reliable method is procedural consistency.

A stable oxygen measurement system depends on repeatable steps, documented conditions, and realistic acceptance limits.

Rather than treating calibration as a single event, treat it as a controlled verification cycle.

A practical field routine usually includes the following:

1. Review previous drift history, alarm events, and last calibration data.
2. Confirm gas traceability and match span concentration to process use.
3. Inspect the sample path before touching zero or span settings.
4. Allow full warm-up and purge based on analyzer design, not guesswork.
5. Record stabilization time, not only final value.
6. Check return-to-process behavior after calibration is complete.

That last point is where many service reports are too thin.

If the oxygen measurement system cannot recover smoothly to live process conditions, the job is not finished.

In regulated or high-risk environments, it is sensible to align records with ISO/IEC 17025 thinking even when full laboratory calibration is not required.

That means traceability, repeatability, environmental notes, and documented uncertainty awareness.

What should be reviewed next if unstable readings keep coming back?

If the same oxygen measurement system keeps returning with unstable readings, widen the investigation.

Recurring instability often signals a system-level issue rather than a one-time calibration mistake.

Look at the analyzer in context.

Review mounting vibration, cabinet climate control, grounding quality, sample extraction design, and control logic filtering.

In some applications, the displayed instability is actually process cycling that was previously hidden.

The difference matters, because maintenance action changes completely.

A simple review table can help separate calibration faults from broader causes.

Across industry, the strongest long-term improvement comes from better calibration discipline, cleaner records, and a clearer link between field symptoms and measurement principles.

That is also where GIH’s broader instrumentation perspective is useful.

Reliable data depends on understanding the full measurement chain, not only the visible instrument.

If unstable readings continue, review calibration gas selection, compensation settings, sample path integrity, and service records as one package.

That structured review usually reveals whether the oxygen measurement system needs procedural correction, component replacement, or a broader application redesign.
