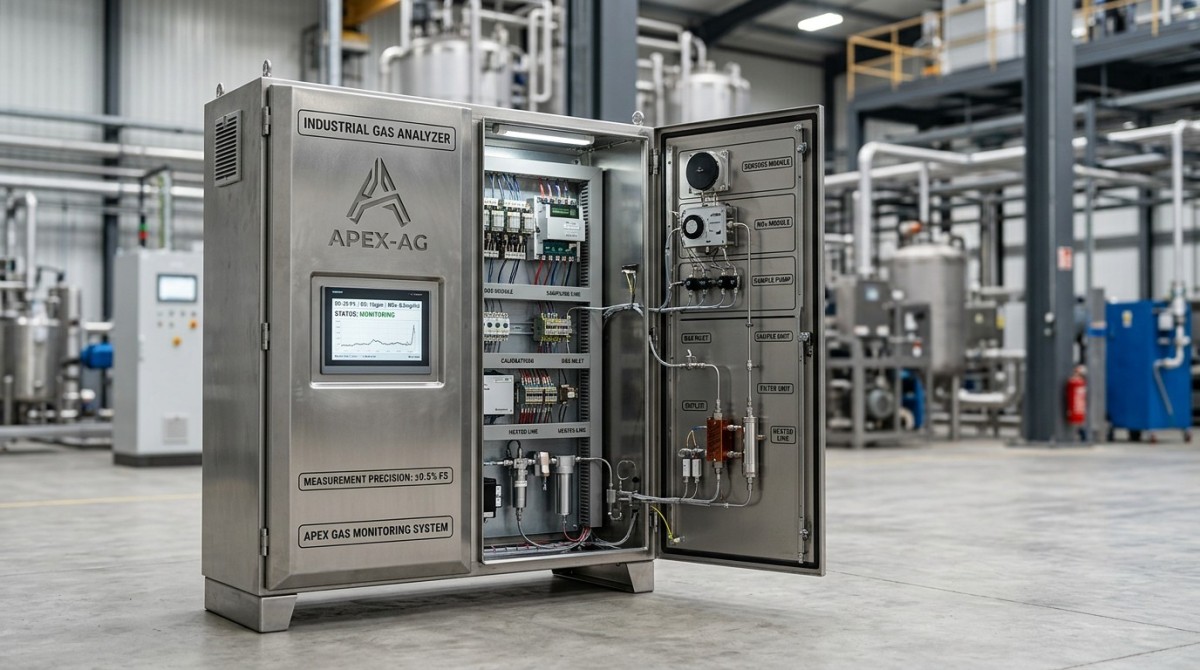

Analyzer enclosure decisions can influence accuracy, stability, and maintenance costs far more than many teams expect. From portable monitoring and continuous monitoring to industrial gas monitoring, the right analyzer enclosure affects custom measurement performance across paramagnetic measurement, laser analysis, thermal analysis, and fixed analyzer applications. This guide explains what users, engineers, and decision-makers should evaluate, including when an explosion proof gas analyzer enclosure is critical.

In instrumentation projects, enclosure selection is often treated as a packaging decision. In practice, it directly affects sample integrity, thermal drift, sensor life, calibration intervals, and technician safety. For operators, that can mean fewer nuisance alarms and more stable readings. For technical evaluators and project managers, it means lower lifecycle risk. For business decision-makers and distributors, it affects total cost of ownership over 3 to 10 years.

Whether the application involves industrial manufacturing, environmental monitoring, energy systems, laboratories, or automation control, the enclosure must match the analyzer type, site hazards, and service conditions. A mismatch between enclosure design and process reality can increase error, slow response time, and raise maintenance frequency from quarterly to monthly.

Why Analyzer Enclosures Matter More Than Many Teams Realize

An analyzer enclosure is not just a protective box. It is part of the measurement system. In gas analysis, thermal management inside the enclosure can change sensor stability by several tenths of a percent, which is meaningful when a process limit is tight or when emissions reporting requires repeatable values across 24-hour operation. Even in portable monitoring, enclosure sealing and vent routing can affect how quickly the instrument reacts to changing conditions.

For paramagnetic oxygen measurement, internal airflow, vibration isolation, and temperature uniformity are especially important. For laser analysis, optical alignment and contamination control become critical. For thermal analysis systems, enclosure heat buildup can distort readings if electronics and sample pathways are not separated. In fixed analyzer applications, the enclosure also influences washdown resistance, cable routing quality, and maintenance access time.

The impact becomes larger in outdoor or hazardous locations. Daily ambient swings of 15°C to 25°C can create condensation cycles if the enclosure lacks proper insulation, purge design, or heater control. In corrosive areas, a poor material choice can shorten the service life of hinges, seals, and cable glands from 5 years to less than 18 months.

This issue affects multiple stakeholders. Operators want stable readings and easy access. Quality and safety managers focus on compliance, alarm reliability, and hazard mitigation. Enterprise buyers look at downtime cost, spare parts, and standardization across sites. The right analyzer enclosure helps all three groups by reducing uncertainty at the point where measurement hardware meets the real environment.

How enclosure design influences measurement accuracy

Accuracy is shaped by more than sensor specifications. Internal temperature rise, particulate ingress, vibration transmission, and sample line routing can all introduce measurable deviation. A laser analyzer mounted in an enclosure with poor thermal separation may need more frequent zero checks. A gas analyzer placed in a non-vented cabinet may experience electronic drift during peak summer operation.

Common hidden error sources

• Condensation on electronics or optics after day-night temperature swings of 10°C or more.
• Sample tubing routed too close to heated electronics, changing gas temperature before measurement.
• Door seal leakage allowing dust or corrosive vapors into the cabinet over periods of 3 to 6 months.
• Insufficient vibration damping near compressors, blowers, or skid-mounted rotating equipment.

Key Enclosure Types and Where Each One Fits Best

Different analyzer enclosure designs serve different measurement environments. The most common categories include general-purpose indoor cabinets, weatherproof outdoor enclosures, climate-controlled analyzer shelters, portable analyzer cases, and explosion proof gas analyzer enclosure designs for hazardous areas. Selection should be based on process criticality, site classification, ambient conditions, and maintenance needs rather than purchase price alone.

For continuous monitoring in power, chemical, or environmental applications, a weatherproof or temperature-controlled solution is often required. If the analyzer must maintain stable operation between -20°C and 45°C, passive protection may not be enough. If the site is classified for flammable gas risk, then hazardous-area requirements can override convenience or compactness considerations.

Portable monitoring has a different priority set. Weight, handle design, battery space, connector protection, and fast field access matter more. However, portable does not mean less critical. A poorly designed portable enclosure can still reduce sample consistency, especially when operators work in dusty areas or frequently move the unit between indoor and outdoor environments.

The comparison below helps buyers and evaluators match enclosure type to application goals, maintenance profile, and site risk.

The practical takeaway is that enclosure type should be matched to process behavior, not just site appearance. A compact cabinet may look suitable on a drawing, but if it cannot maintain stable internal conditions or support service access within 20 to 30 minutes, it may drive up lifetime cost and measurement uncertainty.

When an explosion proof gas analyzer enclosure becomes necessary

A hazardous location does not always mean every analyzer requires the same enclosure strategy, but flammable atmosphere risk changes the design basis. If the analyzer is installed in a zone where combustible gas may be present during normal operation or under foreseeable upset conditions, the enclosure must align with local hazardous-area practice, electrical design, and maintenance procedures.

This matters for fixed analyzer applications in refineries, chemical plants, fuel handling, and some energy facilities. In these cases, choosing an explosion proof gas analyzer enclosure is not only about regulatory alignment. It also protects project continuity by reducing redesign risk during review, installation, and safety inspection.

Critical Selection Factors for Accuracy, Safety, and Lifecycle Cost

A practical enclosure evaluation should cover at least 6 dimensions: thermal control, ingress protection, material compatibility, hazardous-area suitability, service access, and sample system integration. Missing even one of these can create hidden operating cost. For example, a technically compliant enclosure that is difficult to open, inspect, or recalibrate may increase average service time from 25 minutes to more than 60 minutes per visit.

Thermal management is one of the most underestimated variables. Electronics, pumps, heated lines, and solar load can increase internal temperature by 8°C to 20°C above ambient. If the analyzer’s optimal range is narrow, active cooling, heaters, or partitioned design may be needed. This is especially relevant to laser analysis, trace gas measurement, and analyzers with sensitive optical or magnetic components.

Material choice also matters. Powder-coated steel may be adequate in dry indoor service, while stainless steel or corrosion-resistant composites are often better for coastal, chemical, or washdown environments. Gasket quality, latch durability, viewing window design, and gland plate layout all influence long-term stability and field usability. These are not cosmetic details; they are reliability variables.

The table below summarizes common evaluation criteria used by project teams, distributors, and plant buyers when comparing analyzer enclosure options across industrial monitoring and control applications.

For many B2B buyers, the most useful method is to score enclosure options against a weighted checklist before the instrument is purchased. A simple 5-point scoring system across 6 criteria can quickly reveal whether a lower-cost option will lead to higher field service, faster corrosion, or unstable operation.

A practical 5-step evaluation workflow

1. Define the analyzer technology and required measurement stability, such as response time, drift tolerance, or sampling frequency.
2. Review the installation environment, including ambient range, dust, washdown, vibration, and sunlight exposure.
3. Check whether the location requires an explosion proof gas analyzer enclosure or another hazardous-area strategy.
4. Verify service access, tubing layout, cable entries, and calibration space before final layout approval.
5. Estimate maintenance interval, spare parts exposure, and expected enclosure life over at least 5 years.

Application-Specific Recommendations for Portable, Continuous, and Fixed Monitoring

Analyzer enclosure selection should reflect application mode. In portable monitoring, speed and mobility dominate. In continuous monitoring, stability and low intervention are the priority. In fixed analyzer installations, integration with plant infrastructure and safety systems becomes decisive. One enclosure concept rarely fits all three without compromise.

Portable systems benefit from ruggedized corners, sealed connectors, compact sample routing, and layouts that support setup in less than 10 minutes. Field crews often move units several times per shift, so enclosure weight and handle ergonomics matter. However, if the portable instrument performs precision gas checks, internal thermal buffering may still be necessary to avoid drift after transport from an air-conditioned room to a hot outdoor location.

Continuous monitoring systems usually justify stronger investment in environmental control. If the analyzer runs 24/7 and supports compliance, combustion optimization, or process control, then enclosure design must support reliability over thousands of operating hours. That means clear service zones, stable sample conditioning, and protection from humidity, dust, and heat. Minor layout improvements can reduce calibration disruption and improve operator confidence.

Fixed analyzer applications in industrial gas monitoring often face the greatest complexity. The enclosure must work with plant piping, cable trays, mounting structures, and sometimes purge or pressurization arrangements. It must also allow future service without forcing technicians into awkward or unsafe positions. A well-planned enclosure can lower downtime and make annual maintenance far more predictable.

Recommended focus by application

• Portable monitoring: prioritize impact protection, connector sealing, low setup time, and manageable weight.
• Continuous monitoring: prioritize thermal stability, service intervals of 3 to 6 months, and controlled internal airflow.
• Industrial gas monitoring: prioritize hazardous-area compliance, corrosion resistance, and sample integrity.
• Custom measurement systems: prioritize layout flexibility, modular cable entry, and access for calibration tools.

Common mistakes in project specification

A frequent mistake is specifying enclosure material without defining the actual exposure profile. Another is selecting a compact footprint that leaves no room for filter changes, valve access, or tubing replacement. Teams also sometimes focus on the analyzer’s catalog accuracy while ignoring the enclosure conditions that determine whether the instrument can actually achieve that accuracy in the field.

A better specification approach is to document 4 things early: environment, hazard level, service method, and measurement sensitivity. That helps suppliers and evaluators recommend a solution that is realistic for both installation and long-term operation.

Implementation, Maintenance Planning, and Procurement Questions That Reduce Risk

Good enclosure decisions are confirmed during implementation, not just during selection. Before purchase approval, project teams should review mounting orientation, cable routing, ventilation or purge path, drain strategy, and service access around doors and panels. These details can decide whether startup takes 2 days or 1 week, especially in multi-discipline industrial projects.

Maintenance planning should begin before commissioning. If filters, pumps, or calibration gas connections are difficult to reach, technicians may delay service, which can increase analyzer drift and alarm issues. In many facilities, a realistic target is to complete routine service in 30 to 45 minutes with standard tools. If the enclosure layout makes that impossible, operating cost will rise over time.

Procurement teams should also ask about spare parts exposure, lead time, and modularity. A specialized enclosure with a 10 to 14 week replacement time may be acceptable for a non-critical analyzer but risky for a process-critical monitoring point. Likewise, a standardized enclosure family can simplify distributor support and spare holding across multiple sites.

The final buying decision should balance initial cost against stability, safety, serviceability, and expected site life. A slightly higher enclosure investment can be justified if it reduces recalibration frequency, protects sensitive measurement components, and avoids shutdown-related troubleshooting in harsh conditions.

FAQ: questions buyers and engineers often ask

How do I know if a standard weatherproof enclosure is enough?

Start with four checks: ambient temperature range, moisture or washdown exposure, dust or corrosive atmosphere, and hazard classification. If the analyzer faces strong thermal cycling, aggressive chemicals, or ignition risk, a basic weatherproof design may not be sufficient. Many continuous monitoring systems need additional thermal or safety features even when the cabinet appears externally rugged.

When should we select an explosion proof gas analyzer enclosure?

It should be considered whenever the installation area presents a credible flammable gas or vapor hazard and the project design requires equipment suitable for that environment. The exact requirement depends on site classification, electrical design, and maintenance practice. Early review with engineering and safety teams prevents costly redesign later in the project.

What service features matter most for long-term ownership cost?

Look for door clearance, clean cable entry layout, removable panels where useful, visible service points, and enough space for tubing and calibration work. If routine maintenance happens every 90 to 180 days, even small ergonomic gains can save labor across the full equipment life.

How long does a typical enclosure selection and delivery process take?

For standard industrial configurations, review and supply may fit within 2 to 6 weeks. More customized analyzer enclosure projects, especially those involving hazardous-area requirements, climate control, or integrated sample handling, often need longer coordination. Early specification clarity shortens that cycle.

Analyzer enclosure choice has a direct effect on measurement accuracy, operating stability, maintenance effort, and project safety. The best decision comes from matching enclosure design to analyzer technology, environment, hazard level, and service strategy rather than treating it as a secondary packaging issue. For portable monitoring, continuous monitoring, industrial gas monitoring, and custom measurement systems alike, careful enclosure planning protects both performance and lifecycle cost.

If you are comparing options for fixed analyzer applications or need guidance on whether an explosion proof gas analyzer enclosure is necessary, now is the right time to review your requirements in detail. Contact us to discuss your operating conditions, get a tailored recommendation, and explore a solution that supports accurate measurement and reliable long-term use.
