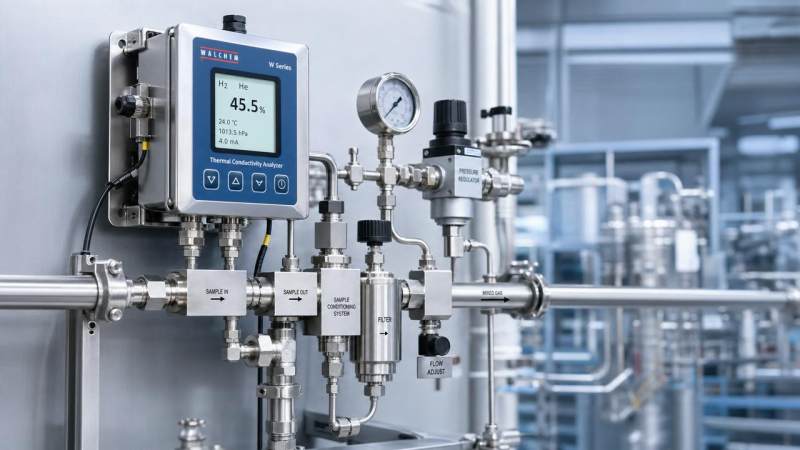

Thermal Conductivity Monitor Limits in Mixed Gas Streams

In mixed gas applications, a thermal conductivity monitor can deliver fast, stable composition insights, but its accuracy depends heavily on gas properties, concentration ranges, and cross-sensitivity effects. For researchers comparing monitoring options, understanding these practical limits is essential before selecting an instrument for industrial process control, safety assurance, or laboratory analysis.

Why do thermal conductivity monitor limits matter in mixed gas streams?

A thermal conductivity monitor is often chosen because it can respond quickly, operate continuously, and fit many industrial and laboratory gas analysis tasks. Yet mixed gas streams are rarely simple. In real process environments, composition shifts, temperature changes, pressure variation, moisture, and background gas interference can all affect the reading. For information researchers, the main issue is not whether this method works in theory, but where its practical boundaries begin.

This matters across the instrumentation industry because gas composition data is closely tied to automation, safety interlocks, quality control, emission management, and digital process optimization. A monitor that performs well in a stable binary gas mixture may become unreliable in a multicomponent stream from a furnace, electrolyzer, biogas unit, inerting system, or laboratory reactor.

When buyers or technical evaluators overlook these limits, they often compare instruments on headline sensitivity alone. That creates selection risk. A better approach is to examine the gas matrix, expected concentration range, maintenance burden, calibration strategy, and the decision the measurement must support.

• If the goal is leak detection, response speed may matter more than laboratory-grade specificity.
• If the goal is process control, repeatability under varying load conditions becomes critical.
• If the goal is compliance or traceability, calibration stability and documented verification procedures must be reviewed early.

How does a thermal conductivity monitor work, and where does it fit best?

A thermal conductivity monitor measures how effectively a gas transfers heat relative to a reference condition. Since different gases conduct heat at different rates, the instrument can estimate composition by detecting changes in thermal conductivity. In the best case, this approach is direct and robust. It is especially useful when one target gas differs strongly from the balance gas, such as hydrogen in nitrogen, carbon dioxide in air, or helium in argon.

Its strongest fit is usually found in binary or near-binary gas mixtures, stable carrier gas backgrounds, and applications where continuous online measurement is more valuable than compound-by-compound identification. Many instrumentation users in manufacturing, energy, laboratories, and automation projects prefer it for its straightforward signal behavior and moderate operating complexity.

Typical strengths

• Fast response for process trending and alarm logic.
• Good durability when installed with proper sample conditioning.
• Useful for hydrogen monitoring, inert gas blending, and gas purity checks.
• Often simpler than high-end spectroscopic or chromatographic systems.

Common limitations

• Cross-sensitivity rises sharply in multicomponent mixtures.
• Accuracy depends on stable temperature and pressure conditions.
• Moisture and contamination can distort the effective thermal properties of the sample.
• A single thermal conductivity monitor cannot identify every gas species in a complex stream.

Which mixed gas conditions create the biggest measurement limits?

The limits of a thermal conductivity monitor become most visible when the sample is not a clean two-gas system. In process plants and research settings, mixed gas streams may include a target component, a balance gas, variable impurities, and transient moisture. Each added variable changes the relationship between measured thermal conductivity and actual composition.

The table below highlights where decision-makers should expect higher selection risk when reviewing a thermal conductivity monitor for mixed gas analysis.

The key takeaway is simple: a thermal conductivity monitor is not limited only by its internal sensor design. Its real limit is the relationship between the gas matrix and the calibration assumption. If that relationship changes in service, the number on the display may still look stable while the true composition moves away from it.

Factors that deserve early review

1. How many gas components can vary during normal operation?
2. Is the target gas concentration near trace level, mid-range, or high percentage?
3. Will calibration gases reflect actual field composition closely enough?
4. Can the sampling system remove water vapor and contaminants consistently?

What performance parameters should buyers compare first?

For information researchers, comparing instruments only by catalog accuracy can be misleading. The more useful method is to compare the performance variables that directly affect mixed gas stream behavior. A thermal conductivity monitor may look competitive on paper, but its value depends on whether the specified range, repeatability, and compensation strategy match the process.

The following parameter table can be used as a screening tool during technical discussions, budget review, or request-for-quotation preparation.

This table also supports broader instrumentation planning. In digital plants, a gas analyzer is not an isolated device. It feeds PLCs, SCADA systems, historians, quality dashboards, and sometimes safety functions. That means signal reliability, maintenance access, and data stability are part of the selection process, not optional extras.

Thermal conductivity monitor vs other gas analysis methods

A thermal conductivity monitor is often compared with infrared, electrochemical, paramagnetic, mass spectrometric, or gas chromatography solutions. Each serves a different decision need. For mixed gas streams, the right question is not which technology is best in general, but which one handles your gas complexity, response requirement, maintenance window, and budget more effectively.

The comparison below helps researchers separate practical trade-offs from broad marketing claims.

In many projects, the most practical answer is hybrid design. A thermal conductivity monitor can provide fast continuous indication, while another method confirms composition periodically or protects against matrix shifts. This combination is common in industrial manufacturing, energy systems, environmental setups, and research lines where both speed and specificity are needed.

Which applications are suitable, and which require caution?

Not every mixed gas duty should be rejected, but each should be screened carefully. A thermal conductivity monitor can work well in many real systems if the gas behavior is well understood and the installation is engineered properly.

Usually suitable applications

• Hydrogen purity or hydrogen blend monitoring where the remaining gas composition is known and stable.
• Inert gas blanketing systems where one component dominates and trend visibility matters more than full species separation.
• Laboratory process skids that use controlled feed gases and documented calibration routines.

Applications that need extra caution

• Biogas, reformer off-gas, fermentation exhaust, or other streams with changing moisture and multiple active components.
• Combustion or flue gas systems where thermal properties shift with load, dilution, and condensable content.
• Regulated quality or custody-related measurements that require very high analytical specificity.

In these more complex scenarios, the instrumentation strategy should include a sample system review, operating range verification, and a clear statement of what the measurement is expected to do: control, indicate, alarm, or certify.

How should you select and implement a thermal conductivity monitor?

A good procurement decision starts with process definition rather than product comparison. The monitor should be matched to the gas behavior, not forced into a duty because it appears economical or familiar. In the instrumentation sector, this is especially important because analyzers are long-life assets that influence maintenance routines, automation architecture, and plant data credibility.

1. Define the gas matrix, including normal composition, upset conditions, humidity, contaminants, pressure, and temperature.
2. State the decision need clearly: trend monitoring, interlock support, quality assurance, or research measurement.
3. Verify the calibration approach and whether representative calibration gases are practical to obtain.
4. Review installation details such as sample line length, response delay, moisture management, and maintenance access.
5. Check signal integration requirements for PLC, DCS, SCADA, or laboratory data systems.

For many buyers, implementation risk is higher than purchase price risk. A lower-cost analyzer can become expensive if it needs frequent recalibration, if sample conditioning is neglected, or if operators misread limitations in mixed gas service. Early technical clarification reduces this risk substantially.

Common misconceptions and FAQ about thermal conductivity monitor limits

Is a thermal conductivity monitor accurate for any gas mixture?

No. Its accuracy depends on how uniquely the target concentration maps to thermal conductivity within that gas matrix. In a stable binary mixture, the relationship can be strong. In a changing multicomponent stream, one conductivity value may represent multiple possible compositions.

Can sample conditioning really affect the reading that much?

Yes. Water vapor, aerosols, particulates, and temperature swings can change the apparent thermal properties of the gas or damage measurement stability. In many industrial analyzer projects, the sample system is as important as the sensor itself.

When should I consider another technology instead?

If several gas components vary independently, if regulatory reporting requires high specificity, or if the process stream contains strong and unpredictable interference, another analyzer technology may be more suitable. In some cases, pairing a thermal conductivity monitor with a confirmatory method is the best compromise.

What should I ask during supplier evaluation?

Ask for supported gas combinations, expected limitations in mixed gas use, calibration assumptions, sample conditioning requirements, maintenance intervals, output options, and the typical delivery scope. Also ask whether application review can be based on your actual gas data rather than a generic product sheet.
